24

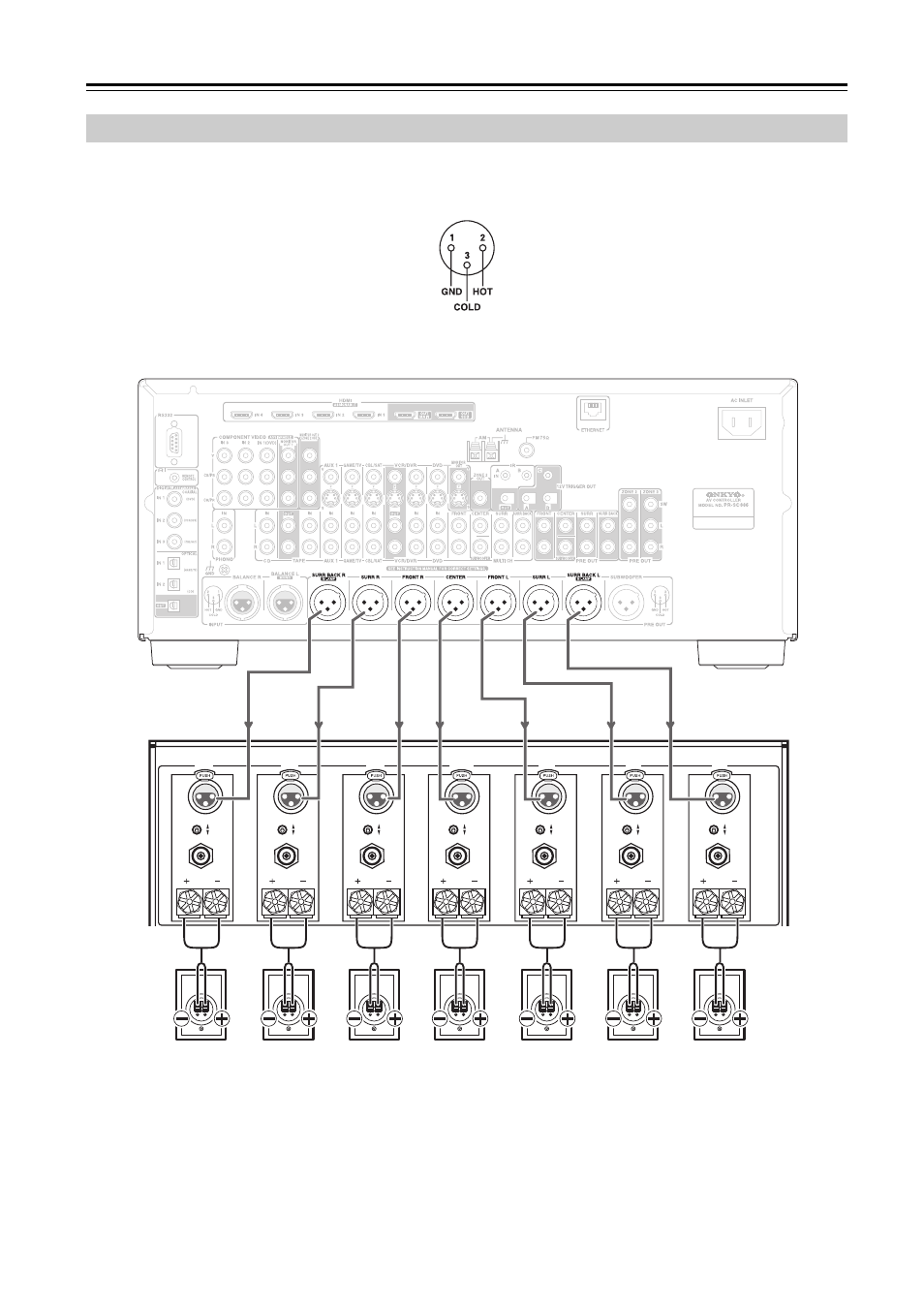

Connecting the AV Controller
—Continued
You can connect the AV controller to a multichannel power amplifier with balanced XLR input jacks by using several
XLR audio cables.
The AV controller’s balanced PRE OUT XLR jacks are wired as shown.
See your multichannel power amplifier’s instruction manual for more information on connecting speakers.
Connecting a Power Amplifier with XLR Inputs
SPEAKER IMPEDANCE
4 OHMS MIN. PER EACH
SPEAKER TERMINAL
AC INLET SEVEN CHANNEL AMPLIFIER
MODEL NO. RDA-7.1
INPUT
SELECT
FUSE
SURROUND BACK
RIGHT SURROUND
RIGHT
12V TRIGGER
IN OUT
SURROUND
LEFT
CENTER
FRONT
LEFT
SURROUND BACK
LEFT FRONT
RIGHT
INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT
OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT
Surround
back right
speaker
AV controller
Multichannel
power amplifier
Surround
right
speaker
Front right
speaker
Center
speaker
Front left
speaker
Surround
left
speaker
Surround
back left
speaker
