23
Connecting the AV Controller
—Continued

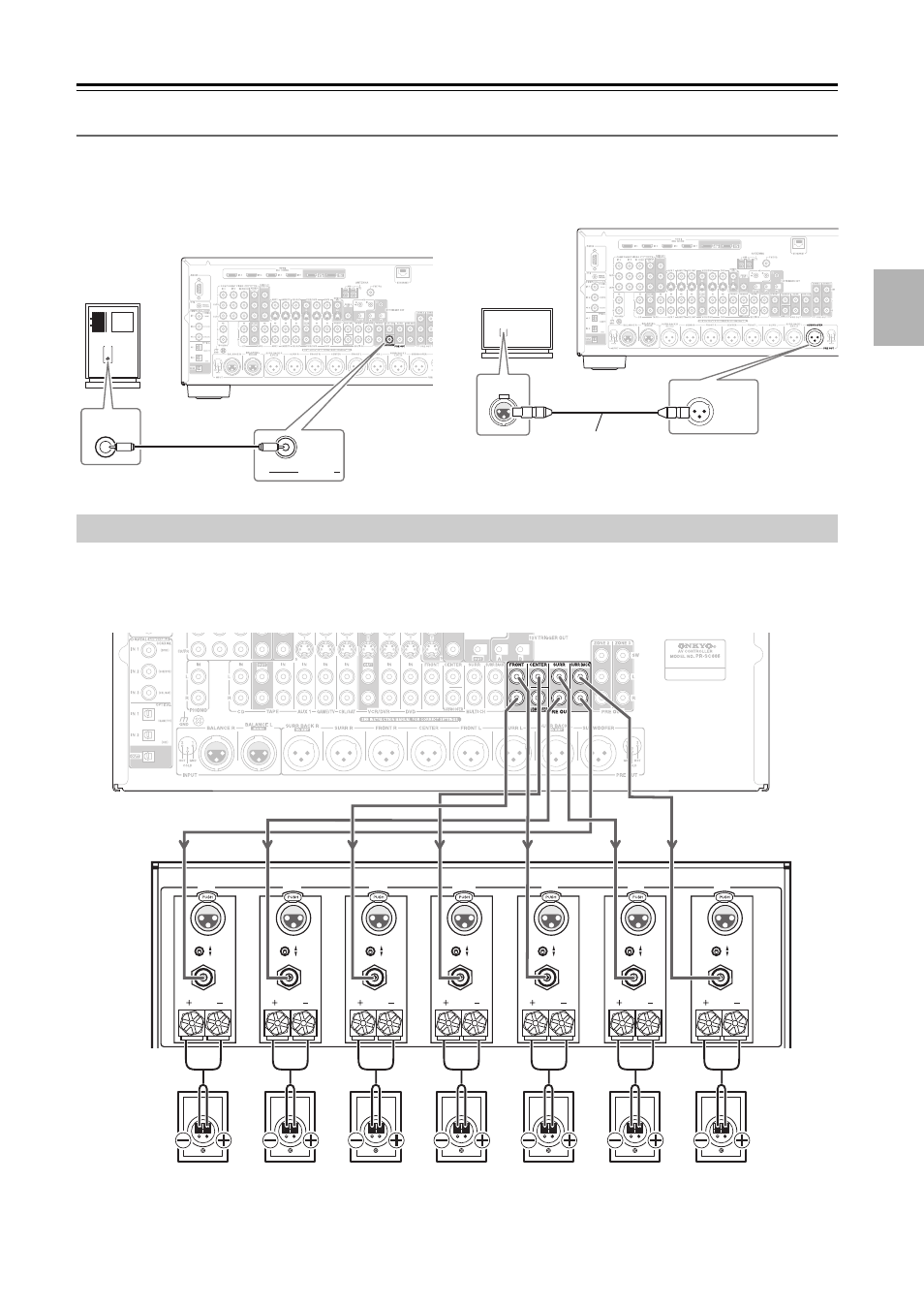

Connecting a Powered Subwoofer
Using a suitable cable, connect the AV controller’s SUB-
WOOFER PRE OUT to the input on your powered sub-
woofer. If your subwoofer is unpowered and you’re
using an external amplifier, connect the SUBWOOFER
PRE OUT to the amp’s input. You can also connect a powered subwoofer to the AV
controller’s balanced SUBWOOFER PRE OUT XLR
jack by using a balanced XLR cable.
You can connect the AV controller to a multichannel power amplifier with RCA input jacks by using a multichannel
RCA audio cable or several stereo RCA audio cables.
See your multichannel power amplifier’s instruction manual for more information on connecting speakers.
LINE INPUT
SUBWOOFER
PRE OUT
LINE INPUT
Powered
subwoofer
INPUT
PRE OUT
SUBWOOFER INPUT
Powered
subwoofer
Balanced
XLR cable
Connecting a Power Amplifier with RCA Inputs
SPEAKER IMPEDANCE
4 OHMS MIN. PER EACH
SPEAKER TERMINAL
AC INLET SEVEN CHANNEL AMPLIFIER
MODEL NO. RDA-7.1
INPUT
SELECT
FUSE
SURROUND BACK
RIGHT SURROUND
RIGHT
12V TRIGGER
IN OUT
SURROUND
LEFT
CENTER
FRONT
LEFT
SURROUND BACK
LEFT FRONT
RIGHT
INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT INPUT
SELECT
OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT
Surround
back right
speaker
AV controller
Multichannel
power amplifier
Surround
right
speaker
Front right
speaker
Center
speaker
Front left
speaker
Surround
left
speaker
Surround
back left
speaker
