19 Model 970 7.1 Channel Preamplifier Processor
Owner’s Manual
Connecting Your Model 970

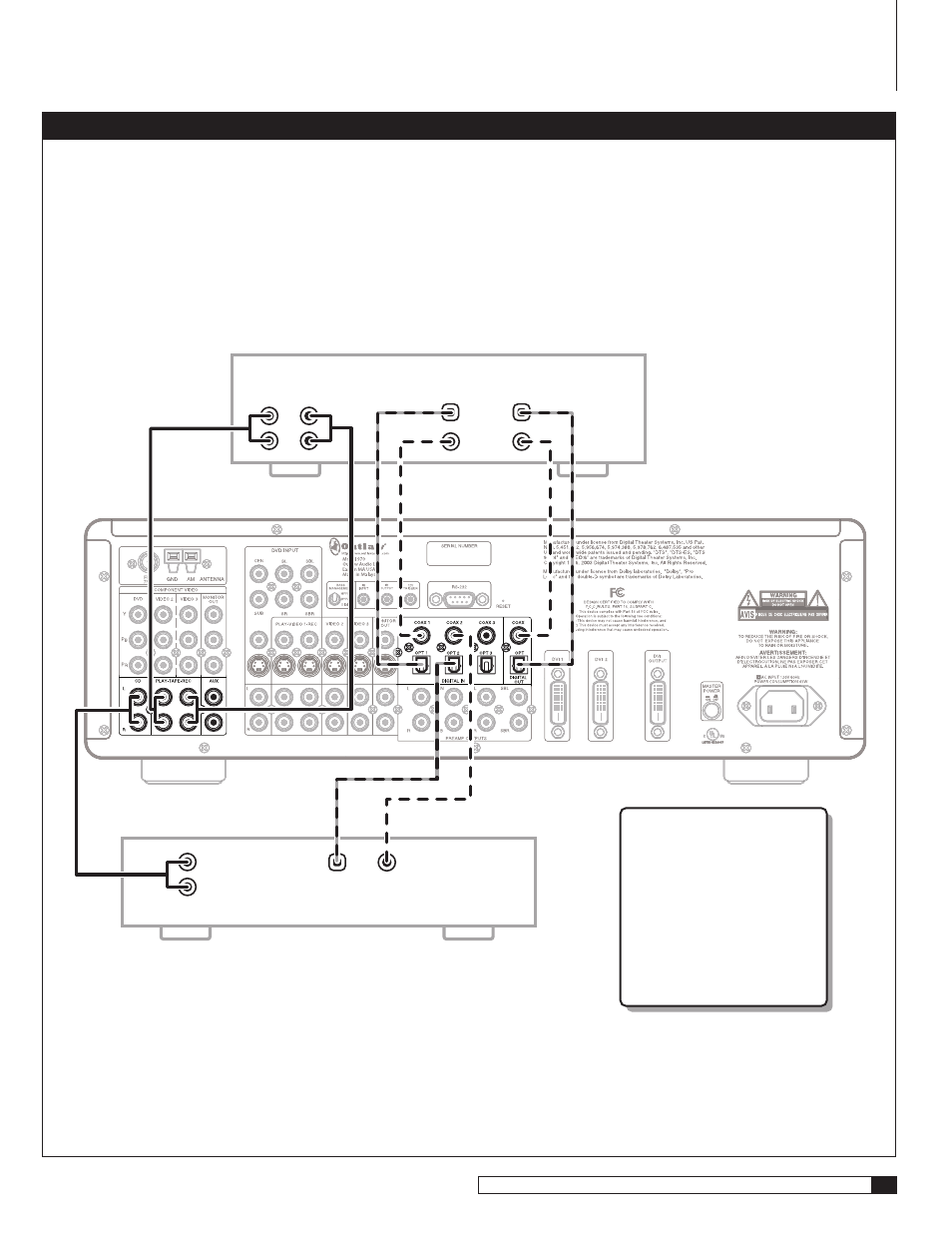

Connecting Audio Equipment to the Model 970
Optical
Out
Coaxial
Out
Digital Outputs Analog Outputs
L
R
Digital Analog
PLAY REC IN PLAY REC IN
L
R
CD Player
Audio Recording Device
Optical
Coaxial
NOTE:
When making digital connections,
use either the Coaxial or Optical
connection, but not both.
For Coaxial connections,
use either COAX 1, 2 or 3.
Likewise, Optical connections
OPT 1-3 are interchangeable.
You will configure the
Model 970 later to use the
specific input you have chosen.
