Unpacking and Inspection
2-2
P/N 8040540
C
HELIX TECHNOLOGY CORPORATION
-
TI
CRYOGENICS

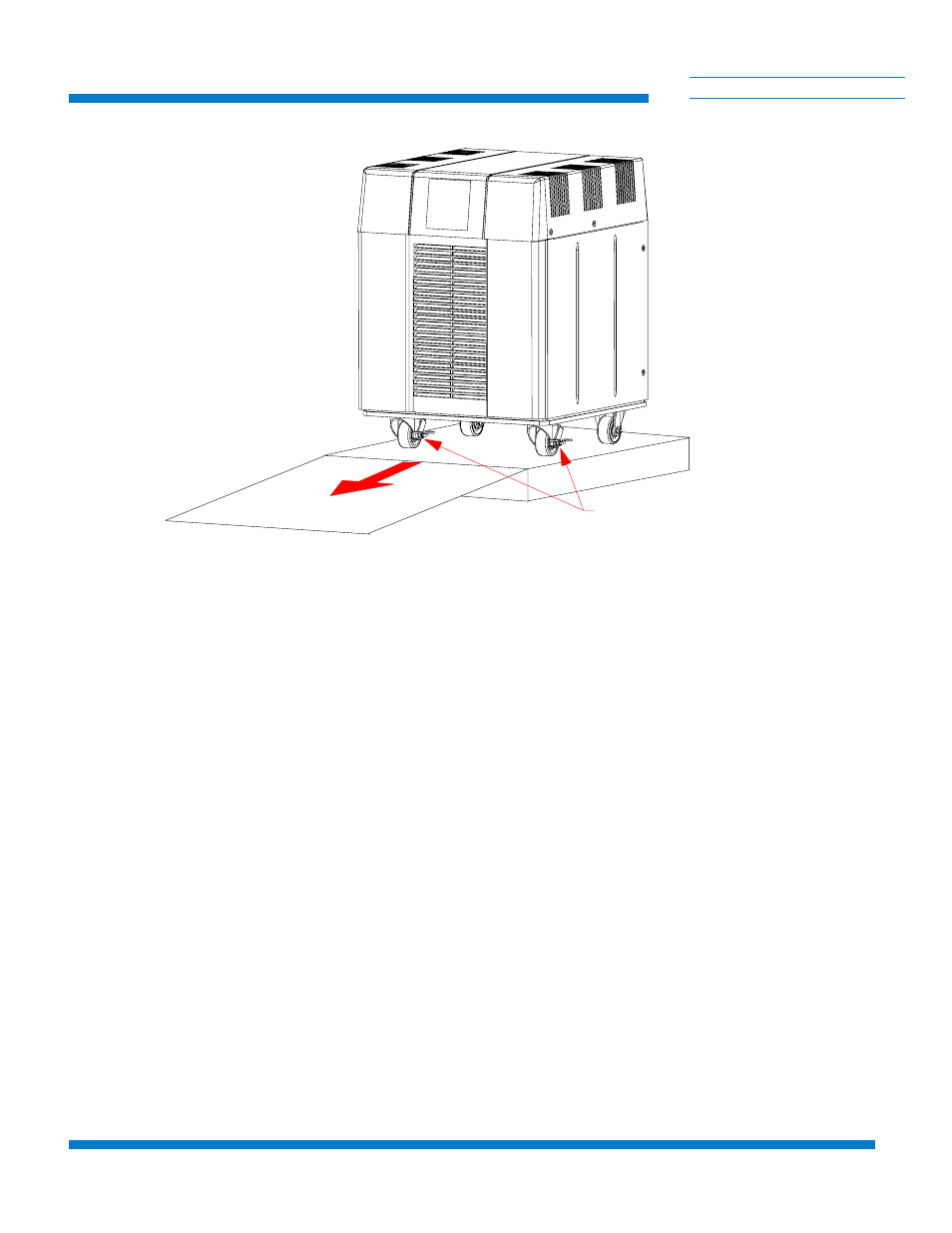

Figure 2-1: Using the Shipping Carton Ramp
Compressor Inspection
Inspect the Compressor for visible signs of damage as indicated in the
following paragraphs.
Compressor
Inspect the exterior of the Compressor for visible signs of damage,
evidence of an oil leak, and check the Helium Pressure Gauge for proper
helium pressure. Report any damage to the shipping company at once.
Helium Static Pressure Verification
Refer to Section 4 - Operation for more information on the static helium
charge pressure of the 9600 Compressor.
Shipping Carton Contents
The shipping carton should contain the following items:
•
Compressor
•
Two barbed fittings for flexible water lines
•
Installation, Operation, and Maintenance manual
•
Compressor remote start connector and strain relief
UNLOCK SWIVEL CASTERS
