9600 Compressor Description
1-6 P/N 8040540
C
HELIX TECHNOLOGY CORPORATION
- TI CRYOGENICS
Cooling Water
The water used to cool the Compressor must meet the
specifications shown in Table 1-3 for proper system operation.

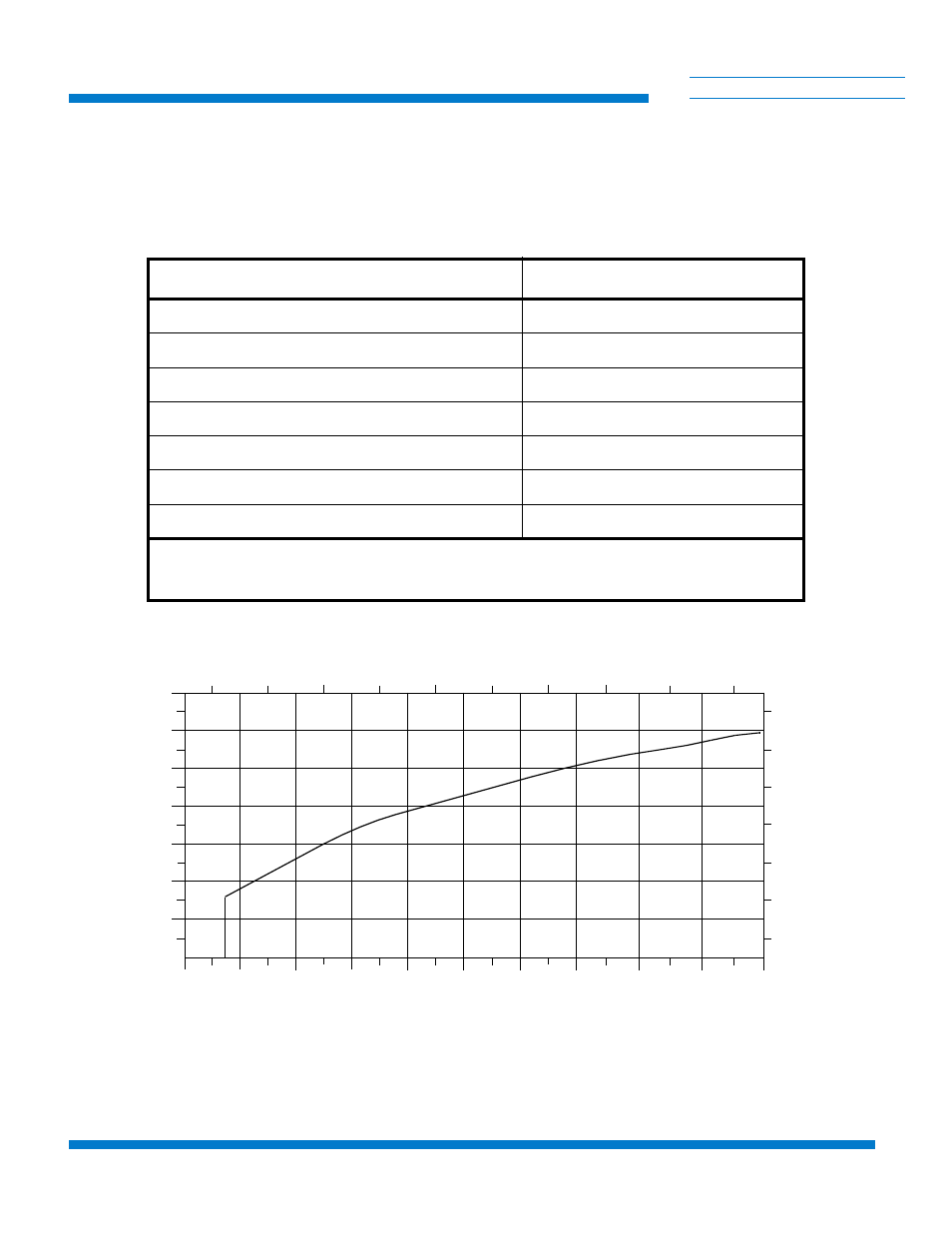

Figure 1-3: Water Flow Rate versus Pressure Drop
Table 1-3: Cooling Water Specifications
Parameter Value
Maximum Inlet Temperature 90°F (32°C)
Minimum Inlet Temperature 50°F (10°C)
Flow Rate 2.75 ±1.25 gpm (10.4 ± 4.7 lpm)
Pressure Drop (inlet-to-outlet) See Figure 1-3
Maximum Inlet Pressure 100 psi (6.9 bars)
Alkalinity 6.0 - 8.0 pH
Calcium Carbonate < 75 ppm
NOTE: Water conditioning may be required for applications not meeting these
requirements.
4.00
3.50
3.00
2.50
2.00
1.50
1.00
0.50
1 3 5 7 9 11
W
A
T
E
R
FL
O
W
R
A
T
E
(
G
PM
)
WATER PRESSURE DROP (PSID )
AC
CE
PT
AB
LE
OPE
RAT
ING
LINE
.07 .49 .21 .35 .63 .77
15.2
13.3
11.40
9.50
7.60
5.70
3.80
1.90
W
A
TER
F
L
O
W
R
A
TE
(
L
P
M
)
WATER PRESSURE DROP (Bars
)
NOTE: Figure 1-3 defines the water flow rate through the Compressor as a function of the pressure drop from water inlet to
water outlet. You must provide the correct pressure drop in your water supply system to ensure that the water flow condition
meets the requirements specified in Table 1-3.
