Installation
(for qualified installers only)
9
© Travis Industries 4090507 100-01217_000
Top Vent or Side Vent Configuration
This appliance is shipped in the top vent configuration. To change to the side vent configuration, follow the
directions below.
NOTE
: the vent configuration affects several aspects of installation (framing, maximum vent rise, maximum vent
run). Make sure the vent configuration is correct prior to installation. You may wish to configure the diffuser when
changing the vent configuration.

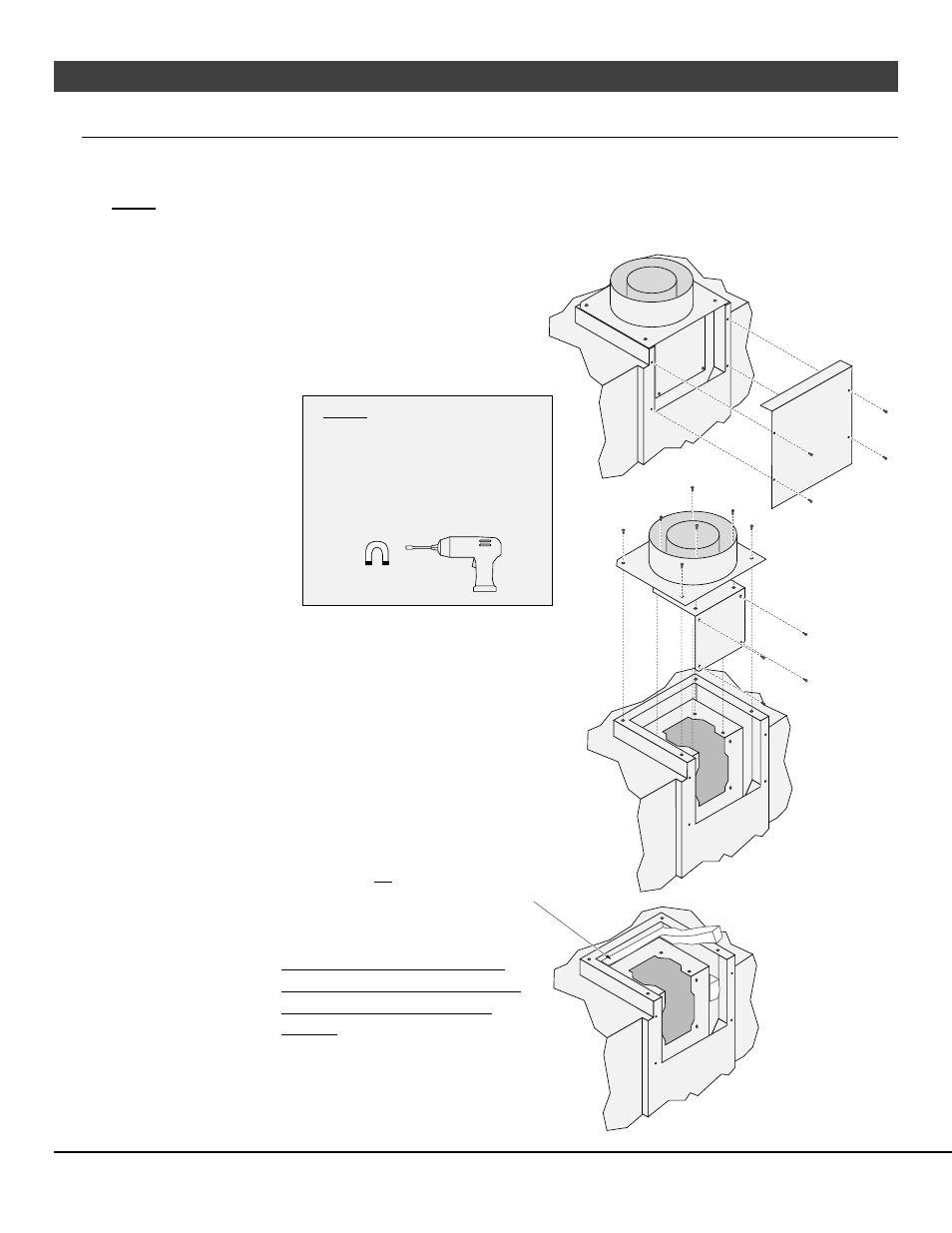

Converting the
Fireplace to Side
Vent
Configuration
Remove the back plate on
the fireplace.
NOTE
: Use a magnetic-tipped
nutdriver on these screws -
take care to prevent the
screws from falling into the
fireplace.
Remove the flue assembly.
Tuck the two 24 " ( 610mm ) pieces of
insulation into the area between the
exhaust manifold and fireplace can.
WARNING: Failure to properly
place the insulation will void the
warranty and create a safety
hazard.
