62 Optional
Equipment
(for qualified installers only)
© Travis Industries
4090507
100-01217_000

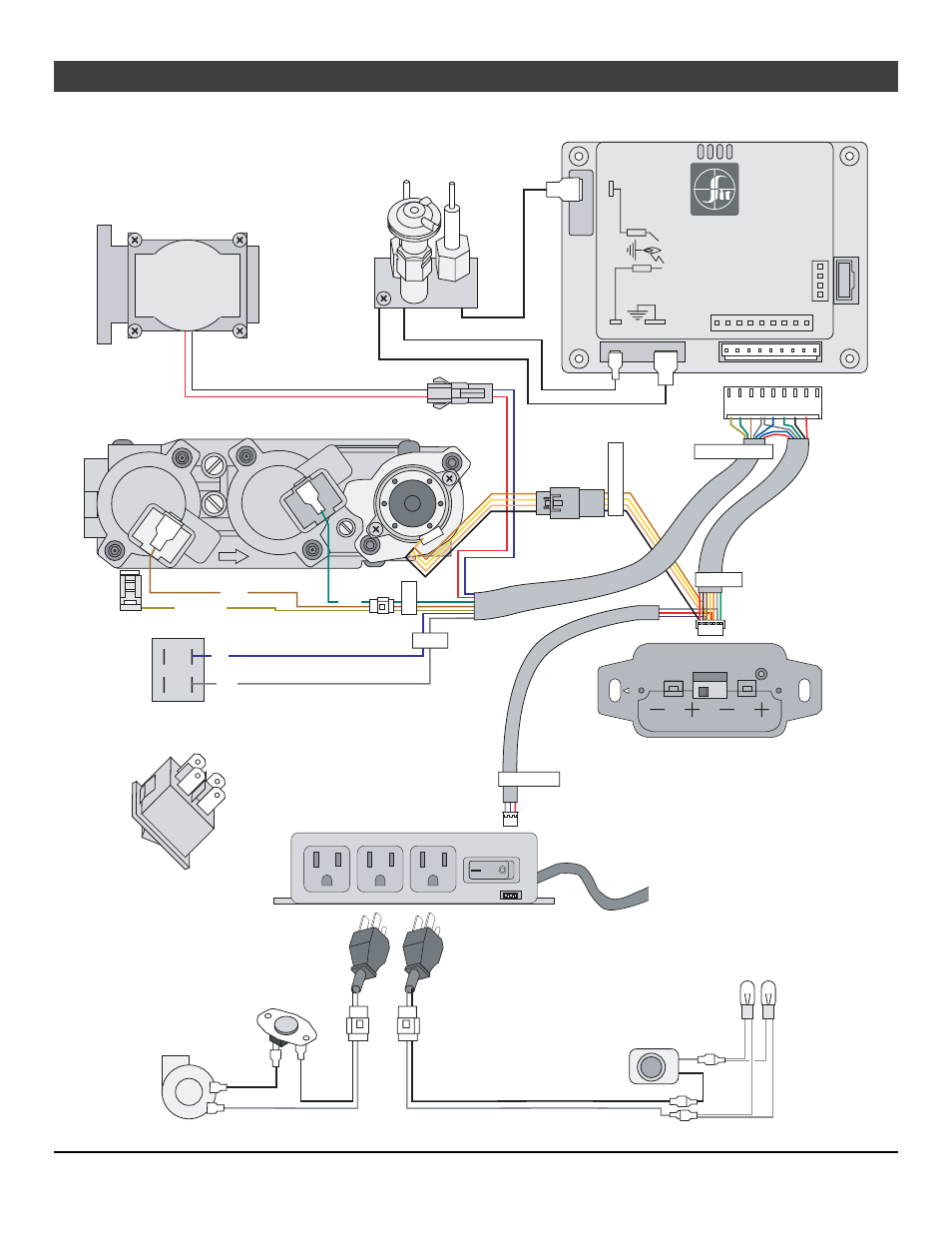

GreenSmart Wiring Diagram
CN4
CN3
PILOT
SENSOR
SPARK ROD
DIGITAL
FIREPLACE
BURNER
CONTROL
CN2
GROUND
VALVE
COMMAND
POWER
CN1
DIAGNOSTIC
CN0
CONTINUOUS
PILOT
White
Blue
Yellow / Green
Orange
VA
LV
E
IPI / CPI
TO
P
(4) AA Batteries
Remote
Receiver
Fan Controller
110V OUT
FAN
AUX OUT
COM
POWER
STEPPER MOTOR
BURNER CONTROL
RECEIVER
FAN CONTROL
Comfort Control
Valve
Green
Accent Light
Rheostat
Accent
Light (s)
120 VAC
Power In
Pilot
Sensor
Spark Rod
Pilot
Ground
Optional
Blower(s)
Thermodisk
INTERMITTENT
PILOT
