Controls & Connectors—Continued
RC-518M
This page describes only those buttons that can be used to
control the HT-R510 when the remote controller is in RCVR
mode (Receiver mode). The other modes, and information on
using the remote controller to control your other AV compo-
nents, are explained on page 41.
To select RCVR mode, press the [RCVR] button.
For detailed information, refer to the pages in parenthesis.
A SLEEP button (33)
This button is used to set the Sleep function. This function can
be set only with the remote controller.
B STANDBY/ON button (24)
This button is used to set the HT-R510 to On or Standby.
C Listening mode buttons (36)
These buttons are used to select the listening modes.
D CINE FLTR button (37)
This button is used to set the Cinema Filter function.
E LATE NIGHT button (37)
This button is used to set the Late Night function.
F TEST, CH SEL & LEVEL [ ] [ ] buttons (27, 29,
33)
These buttons are used to set the level of each speaker individ-
ually. This function can be set only with the remote controller.
G AUDIO SEL button (29)
This button is used to select analog or digital inputs for the
CD, DVD, TAPE, VIDEO 1, VIDEO 2, and VIDEO 3 sources.
H Input selector buttons (28, 30, 39)
These buttons are used to select the audio and video sources:
CD, DVD, TAPE, TUNER, VIDEO 1, VIDEO 2, and
VIDEO 3.
I MUTING button (32)
This button is used to mute the HT-R510. This function can be
set only with the remote controller.
J PRESET [ ] [ ] buttons (31)
These buttons are used to select radio presets.
K DIMMER button (33)
This button is used to adjust the display brightness.
L Remote Controller Mode buttons (28, 41)
These buttons are used to select the remote controller modes.
To select RCVR mode, press the [RCVR] button.
M SP A & SP B buttons (28, 32)
These buttons are used to turn on and off speaker sets A and B
individually.
N AUDIO ADJUST button (37)
This button is used to set the Bass, Treble, Late Night, Cinema
Filter, Center Image, Panorama, Dimension, and Center Width
functions.
O ADJUST [ ] [ ] buttons (37)
These buttons are used to adjust the functions selected with
the AUDIO ADJUST button.
P VOLUME [ ] [ ] buttons (27, 28, 33)
These buttons are used to set the volume of the HT-R510.

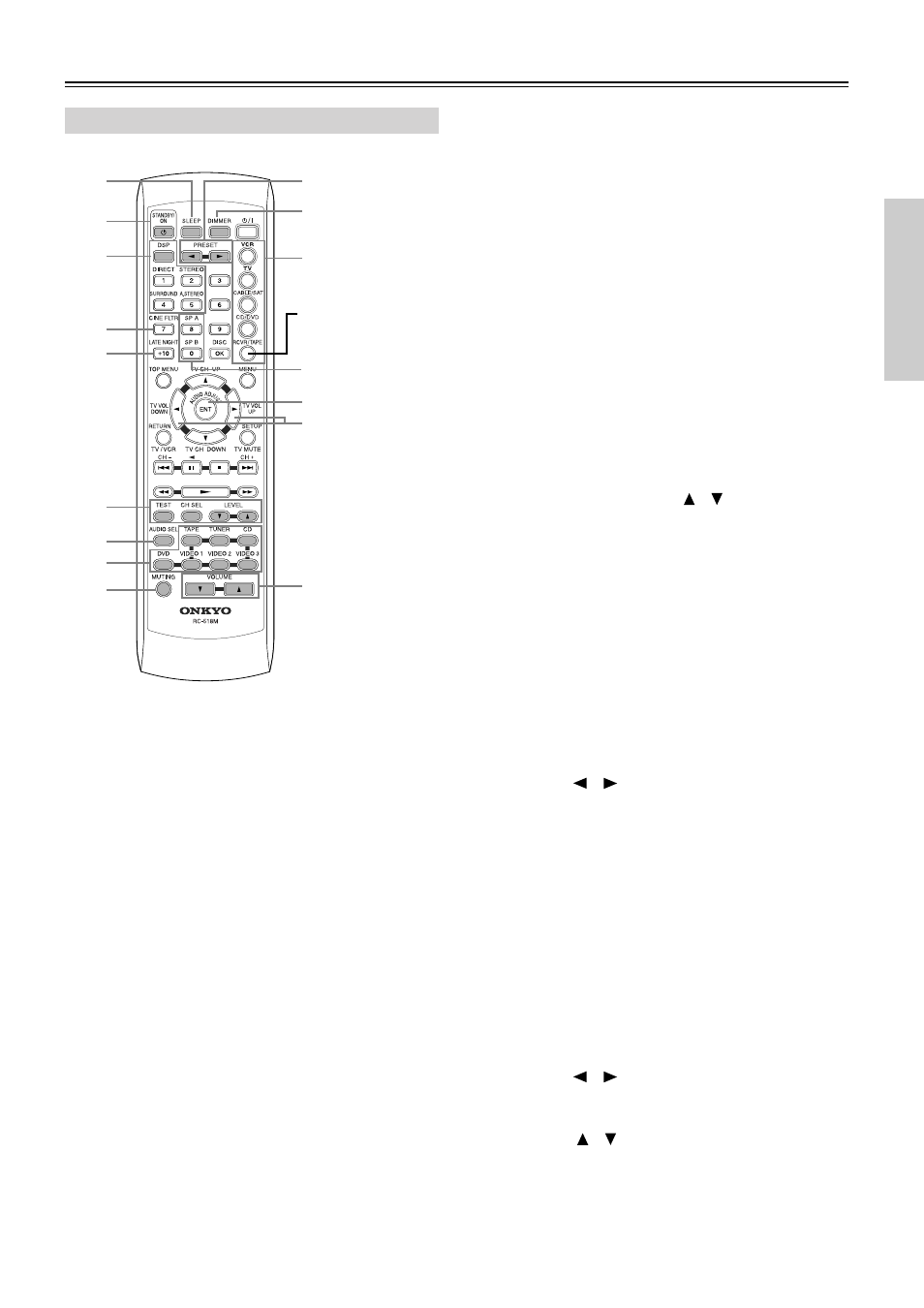

Remote Controller—RCVR Mode
1 J
K
2
3
4
5
M
O
6
7
9
L
N
P
8
Press this to select
RCVR mode
