25

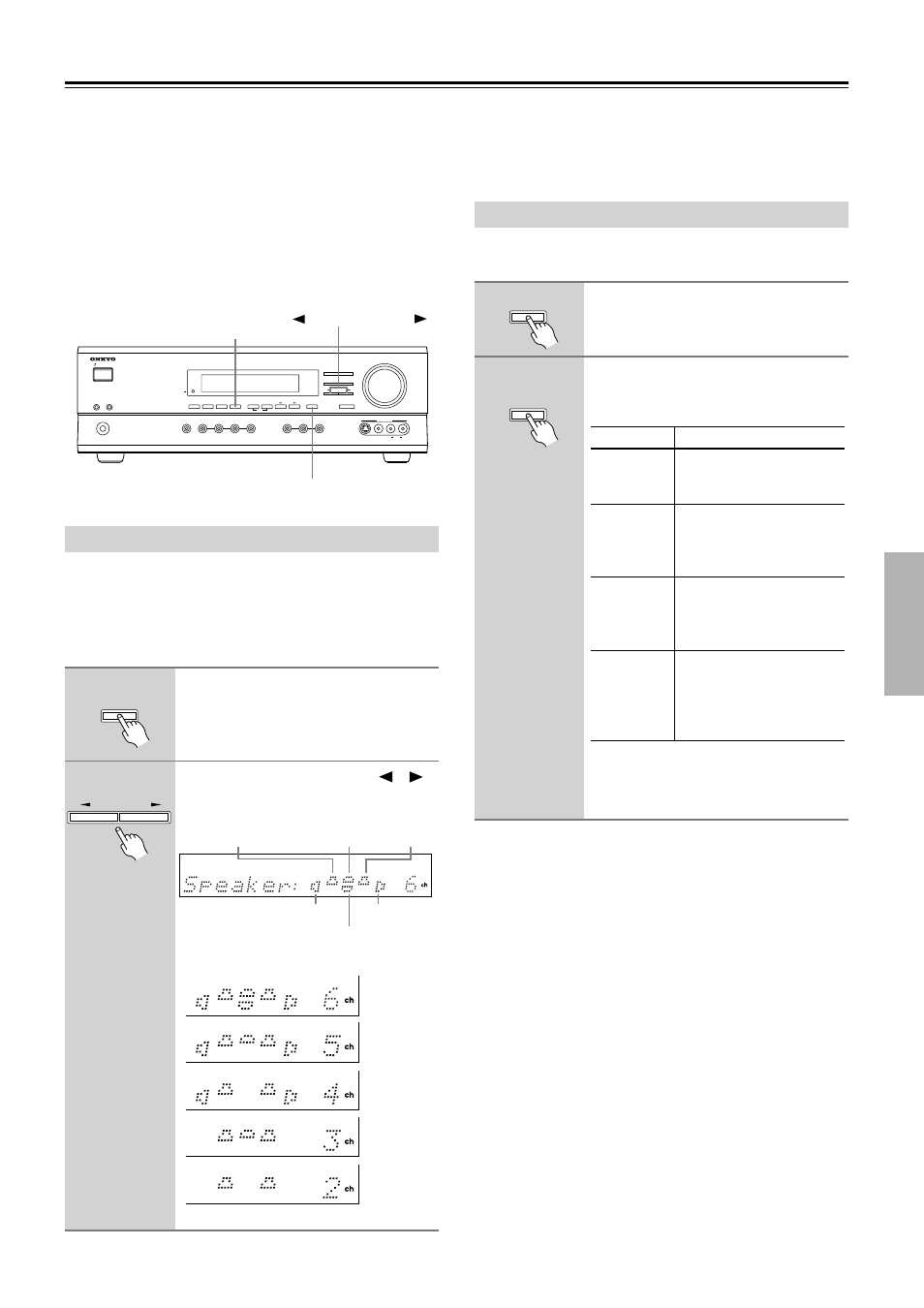

Configuring Speaker Set A
This chapter describes how to configure speaker set A to
achieve the best results from your surround sound system.
There is no speaker configuration for speaker set B.
• Before configuring, you must:
—Disconnect any headphones (see page 33)
—Turn off speaker set B (see page 32)
—Make sure that Multich is off (see page 29)
• The HT-R510 stores each setting, so you only need to con-
figure your speakers once.
With this function you can specify the number of speakers
that you are using.
Home Theater in a box (HT-S760)
If you’re using all of the supplied speakers for 6.1-channel
surround, you don’t need to set this function.
Note:
• Since some listening modes require a minimum number of
speakers, when you change the above setting, the listening
mode may change as well (see page 34).
With this function you can choose the surround channels
from which the subwoofer’s output is derived.
Note:
• If you use Mode 2 or Mode 3 with the Stereo listening
mode, your subwoofer may produce no sound when you
play material in certain surround formats, including
2-channel Dolby Digital, DTS, etc.
Specifying the Number of Speakers
1 Press the [SPEAKER ADJUST]
button.
The current speaker configuration is dis-
played.
2 Use the PRESET/ADJUST [ ] [ ]
buttons to specify the number of
speakers.
The available settings are shown below.
STANDBY/ON
PHONES
MASTER VOLUME
VIDEO 2 TAPE TUNER C D VIDEO 3 DVD
A B SPEAKERS DIMMER
SURROUND
VIDEO 1
VCR
AUDIO SELECTOR
DSP
STEREO
STANDBY
DISPLAY AUDIO ADJUST SPEAKER ADJUST FM MODE SUBWOOFER MODE DIGITAL INPUT MEMORY
DIRECT
S VIDEO AUDIO VIDEO L R
TUNING
CLEAR
PRESET/ADJUST
VIDEO 3 INPUT
PRESET/ADJUST
SPEAKER ADJUST
SUBWOOFER
MODE
SPEAKER ADJUST
PRESET/ADJUST
Front left Center Front right
Surround left
Surround back
Surround right
6 speakers
5 speakers
4 speakers
3 speakers
2 speakers
Setting the Subwoofer Mode
1 Press the [SUBWOOFER MODE]
button once.
The current subwoofer mode is displayed.
2 Press the [SUBWOOFER MODE]
button repeatedly to select the fol-
lowing modes:
If you don’t press the [SUBWOOFER
MODE] button for three seconds, the pre-
vious display reappears.
SUBWOOFER
MODE
SUBWOOFER
MODE
Parameter Description
Subwoofer
Mode 1
The subwoofer outputs
the low frequencies of all
channels.
Subwoofer
Mode 2
The subwoofer outputs
the low frequencies of the
center and surround
channels only.
Subwoofer
Mode 3
The subwoofer outputs
the LFE (Low Frequency
Effects) channel of 6.1
source material.
Subwoofer
Off
The subwoofer output is
off. Choose this setting if
you’re not using a sub-
woofer, or want to turn off
your subwoofer.
