13

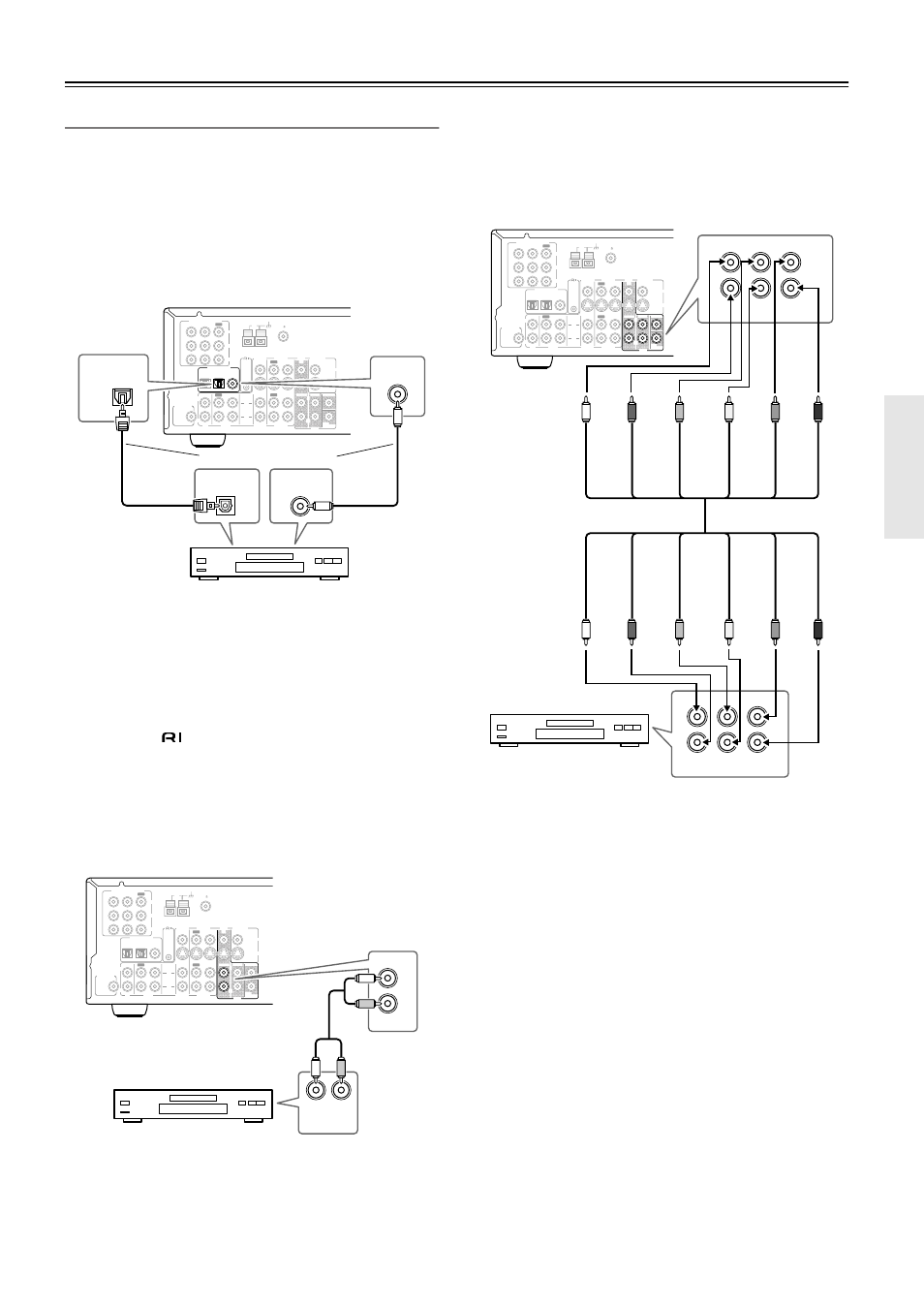

Connecting Your AV Components—Continued
Audio Connections
■ Using Coaxial or Optical Connections
• Use a coaxial digital audio cable to connect the HT-R510’s
COAXIAL DIGITAL INPUT to the coaxial output on your
DVD player, as shown.
OR
• Use an optical digital audio cable to connect the
HT-R510’s OPTICAL 1 DIGITAL INPUT to the optical
output on your DVD player, as shown.
Initially, the COAXIAL digital input is assigned to the DVD
input source. If you connect your DVD player to a different
digital input, you’ll need to assign that input to the DVD
input source (see page 24).
■ Using Analog Connections
Even if your DVD player is connected digitally (coaxial or
optical), to use
, or to record audio from your DVD
player, you’ll need to make analog connections as well.
Use an RCA/phono audio cable to connect the HT-R510’s
FRONT DVD IN connectors to the analog audio outputs on
your DVD player, as shown.
If your DVD player has L/R outputs and multi-channel 5.1
outputs, be sure to use the L/R outputs.
■ Using Multi-channel Connections
Use a multi-channel RCA/phono audio cable to connect the
HT-R510’s L/R FRONT, L/R SURR, CENTER, and SUB
WOOFER DVD IN connectors to the 5.1 analog outputs on
your DVD player, as shown.
Alternatively, use three stereo RCA/phono audio cables.
L
R
ANTENNA
FM
75
AM
REMOTE
CONTROL
IN
IN
IN
OPTICAL
COAXIAL
1
2
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2
VIDEO 1
DVD
MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
VIDEO 1
/ 2 / 3
IN
DVD IN
COMPONENT VIDEO
Y
P
B
P
R
OUT
L
R
COAXIAL
OPTICAL
1
DIGITAL OUT
OPTICAL
DIGITAL OUT
COAXIAL
DVD player
Connect one or the other
L
R
ANTENNA
FM
75
AM
REMOTE
CONTROL
IN
IN
IN
OPTICAL
COAXIAL
1
2
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2
VIDEO 1
DVD
MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
VIDEO 1
/ 2 / 3
IN
DVD IN
COMPONENT VIDEO
Y
P
B
P
R
OUT
L
R
L
R
FRONT
DVD
L
R
AUDIO
OUTPUT
DVD player
L
R
ANTENNA
FM
75
AM
REMOTE
CONTROL
IN
IN
IN
OPTICAL
COAXIAL
1
2
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
DIGITAL INPUT
VIDEO 2
VIDEO 1
DVD
MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
VIDEO 1
/ 2 / 3
IN
DVD IN
COMPONENT VIDEO
Y
P
B
P
R
OUT
L
R
FRONT
SURR CENTER
SUB
WOOFER
DVD
L
R
FRONT SURR
CENTER
SUB
WOOFER
L
R
L
R
DVD player
FRONT R
FRONT L
SURR L
CENTER
SURR R
SUBWOOFER
FRONT R
FRONT L
SURR L
CENTER
SURR R
SUBWOOFER
