Precautions—
Continued
1. Recording Copyright —Unless it’s for personal use only,
recording copyrighted material is illegal without the permission
of the copyright holder.
2. AC Fuse —The AC fuse inside the HT-R510 is not user-service-
able. If you cannot turn on the HT-R510, contact your Onkyo
dealer.
3. Care —Occasionally you should dust the HT-R510 all over with
a soft cloth. For stubborn stains, use a soft cloth dampened with
a weak solution of mild detergent and water. Dry the HT-R510
immediately afterwards with a clean cloth. Don’t use abrasive
cloths, thinners, alcohol, or other chemical solvents, because
they may damage the finish or remove the panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,
READ THE FOLLOWING SECTION CAREFULLY.
AC outlet voltages vary from country to country. Make sure that the
voltage in your area meets the voltage requirements printed on the
HT-R510’s rear panel (AC 120 V, 60 Hz).
Setting the [STANDBY/ON] switch to STANDBY does not fully
shutdown the HT-R510. If you do not intend to use the HT-R510 for
an extended period, remove the power cord from the AC outlet.
Memory backup
The HT-R510 uses a battery-less memory backup system in order to
retain radio presets and other settings when it’s unplugged or in the
case of a power failure. Although no batteries are required, the
HT-R510 must be plugged into an AC outlet in order to charge the
backup system.
Once it has been charged, the HT-R510 will retain the set-
tings for several weeks, although this depends on the envi-
ronment and will be shorter in humid climates.

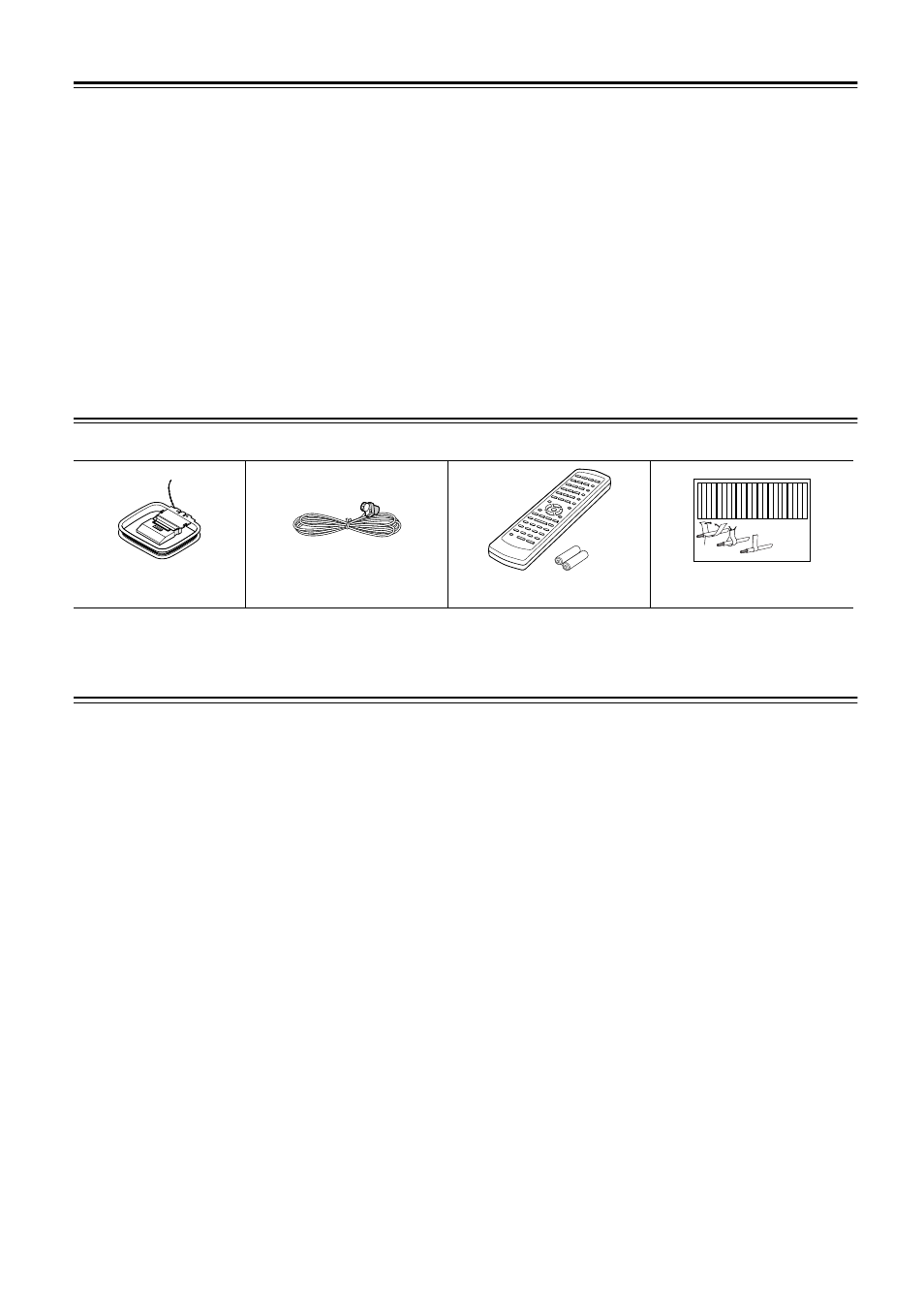

Supplied Accessories
Make sure you have the following accessories:
* In catalogs and on packaging, the letter added to the end of the product name indicates the color of the HT-R510. Specifications and operation are the same
regardless of color.
Features
Amp
• 6-channel amplifier
• 100 watts per channel min. RMS at 8
Ω
, 2 channels driven
from 20 Hz to 20 kHz with no more than 0.08% total har-
monic distortion
• WRAT (Wide Range Amplifier Technology)
• Optimum gain volume circuitry
Audio/Video
• Dolby
*1
Digital EX and Dolby Pro Logic II
• DTS, DTS-ES Matrix/Discrete 6.1, and DTS Neo:6 pro-
cessing
*2
• Cinema Filter function
• Advanced 24-bit DSP chip (5 DSP soundfields)
• Linear PCM 96 kHz/24-bit D/A converters on all channels
• Adjustable crossover (60, 80, 100, 120, 150 Hz)
• 2 component video inputs, 1 output
• 4 S-Video inputs, 2 outputs
• 3 assignable digital inputs (2 optical, 1 coaxial)
• Subwoofer pre out
• Color-coded multi-channel inputs
• Color-coded speaker terminal posts (SPEAKERS B use
push-type terminals)
FM/AM Tuner
• 30 FM/AM presets
• FM auto tuning
AM loop antenna Indoor FM antenna
Remote controller &
two batteries (AA/R6)
Speaker cable labels
Fr ont Left Fr ont Left
SP-B
/ Zone 2 Left
SP-B
/ Zone 2 Left
Surr
ound Right
Surr
ound Right
Surr ound Bac
k
Right
Surr ound Bac
k
Right Zone 2 Right Zone 2 Right
Fr ont Left Fr ont Left SP-B
/ Zone 2
Left SP-B
/ Zone 2
Left
Fr ont Right Fr ont Right
SP-B
/ Zone 2 Right
SP-B
/ Zone 2 Right
Fr ont Right Fr ont Right SP-B
/ Zone 2
Right SP-B
/ Zone 2
Right Surr
ound
Right Surr
ound
Right
Center Center
Center Center
Surr
ound Left
Surr
ound Left
Surr
ound
Left Surr
ound
Left Surr ound Bac
k
Right Surr ound Bac
k
Right Zone 2 Right Zone 2 Right
Surr ound Bac
k Left
Surr ound Bac
k Left Zone 2 Left Zone 2 Left
Surr ound Bac
k
Left Surr ound Bac
k
Left Zone 2 Left Zone 2 Left
1 2
3
Speaker Cable
