7.2-channel Playback with Speakers A or Speakers B

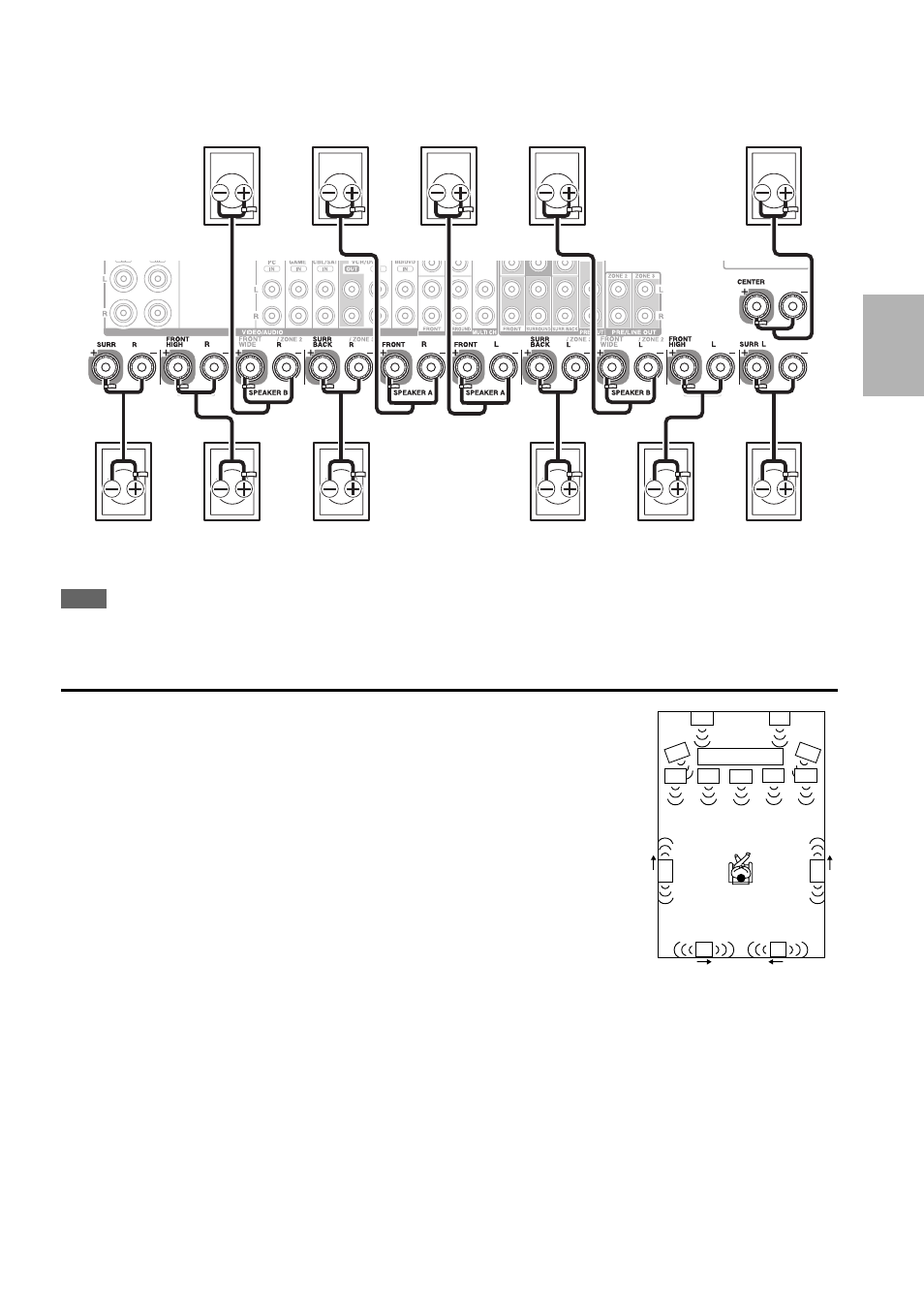

The following illustration shows how to connect the speakers for up to 7.2-channel playback with Speakers A or
Speakers B. If you’re using only one surround back speaker, connect it to the SURR BACK/ZONE 3 L terminals.
Note
• The speakers are configured by using the “Speaker Setup” setting (
).
• You can choose which speakers you want to use with Speakers A or Speakers B (
Using Dipole Speakers
You can use dipole speakers for the surround and surround back speakers. Dipole
speakers output the same sound in two directions.
Dipole speakers typically have an arrow printed on them to indicate how they should be
positioned. The surround dipole speakers (a) should be positioned so that their arrows
point toward the TV/screen, while the surround back dipole speakers (b) should be
positioned so that their arrows point toward each other, as shown.
Surround
back left
Surround
left
Surround
right
Front A left
Front A right
Center
Front B right
Front B left
Surround
back right
Front high
right
Front high
left
b
b
a
a
TV/screen
