Part Names

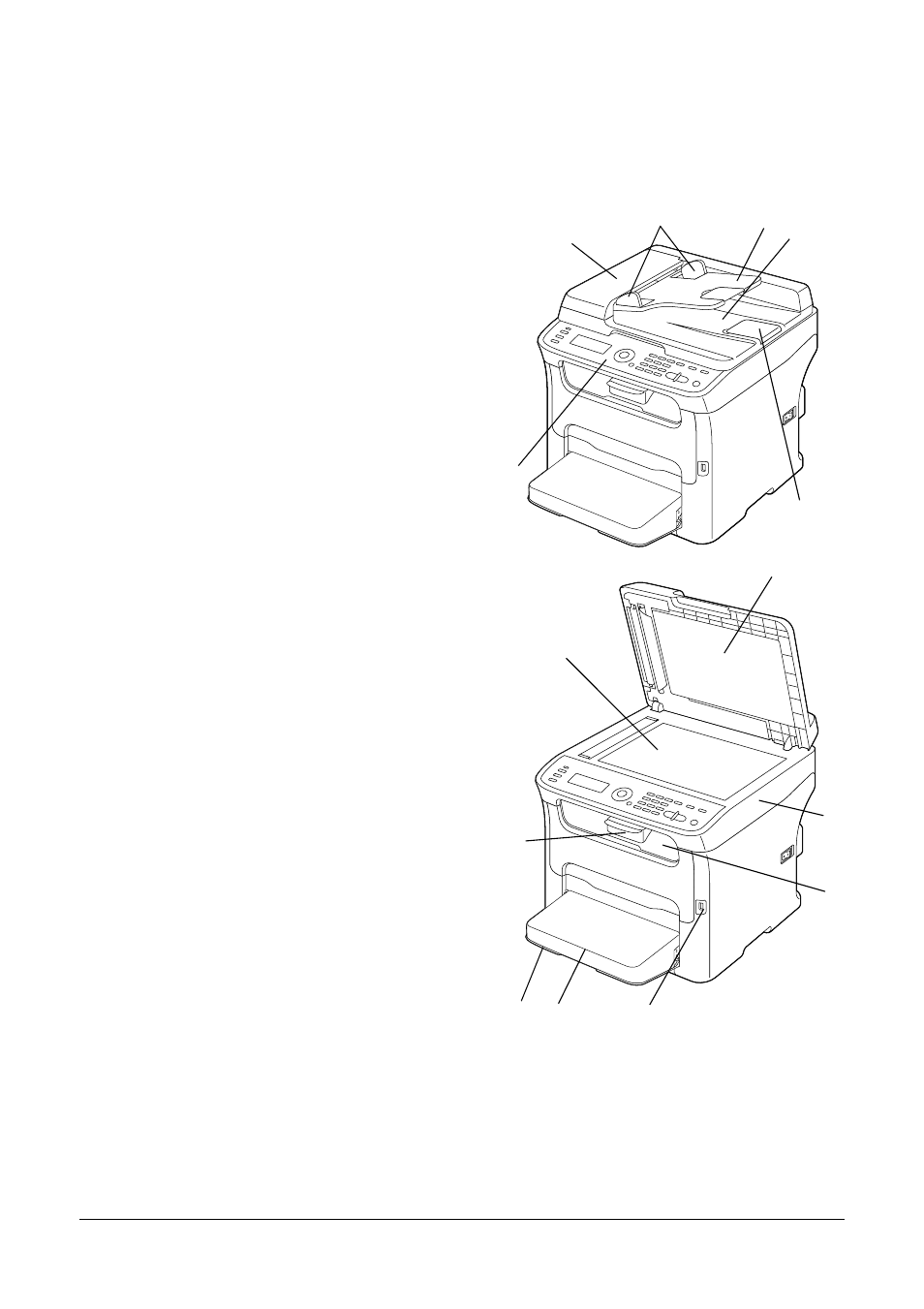

The following drawings illustrate the parts of your machine referred to throughout
this guide, so please take some time to become familiar with them.
Front View
1–Control Panel
2–Automatic document Feeder (ADF)
2–a:ADF feed cover
2–b:Document guide
2–c:Document feed tray
2–d:Document output tray
2–e:Document stopper
"
The ADF may appear as “docu-
ment cover” in some status and
error messages.
"
Lower the document stopper
when scanning Legal-size paper
with the ADF.
3–Dust cover
4–Tray 1
5–Output tray
6–Extension tray
7–Original glass
8–Original cover pad
9–Scanner unit
10–USB memory port
2-a
2-b 2-c
2-d
2-e
1
8
7
9
6
3 10
5
4
