Oki C 5800Ldn User Manual
Page 76
C5800 Ldn User’s Guide
Replace the Belt Unit • 76
6.

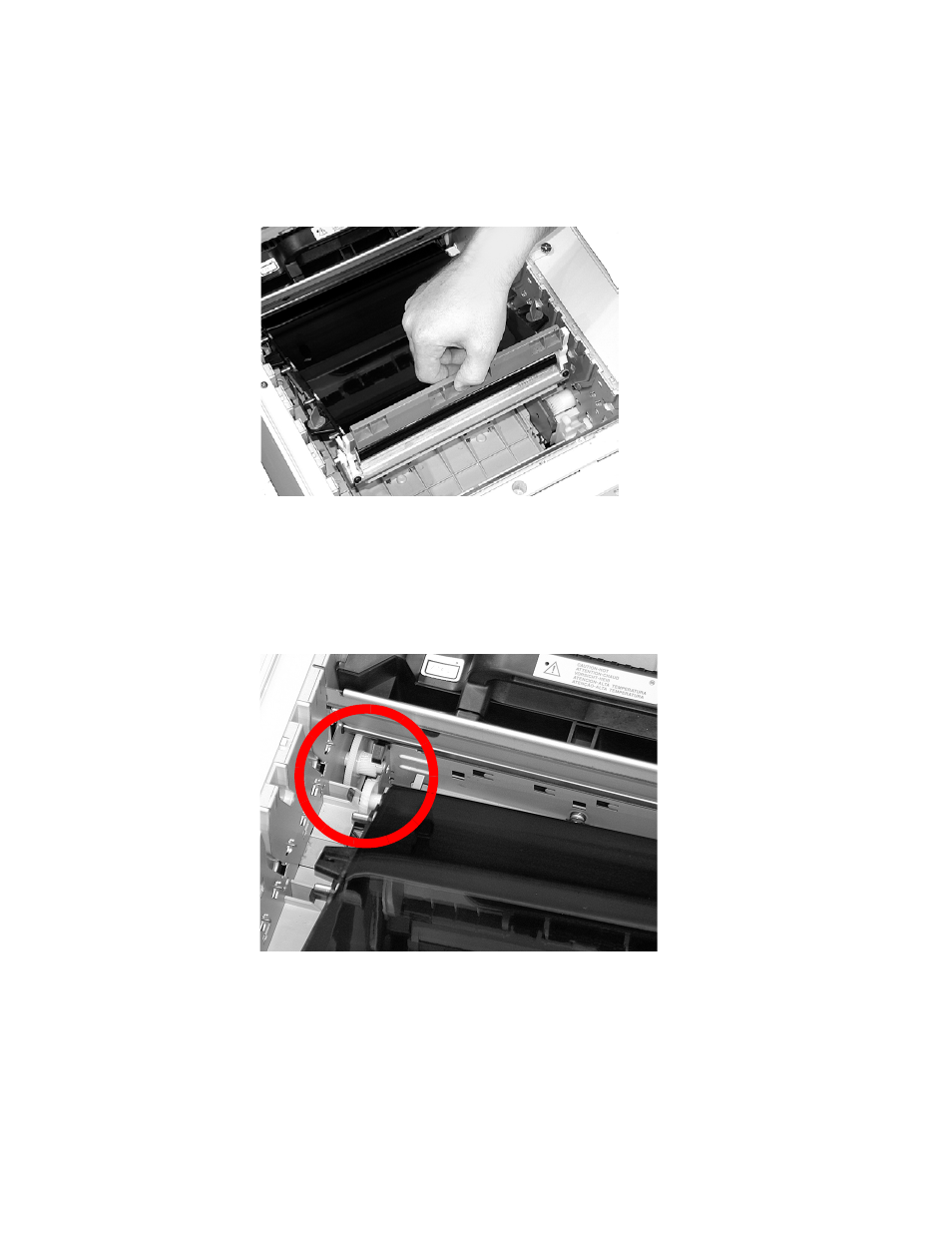

Pull up the handle and lift the belt unit out of the printer.
7.
Unpack the new belt unit. Hold it with the blue handle
toward the front of the printer.
8.
Place the drive gear at the back of the belt unit in the
gear at the left rear corner of the printer. Lower the belt
unit into the printer.
