OPERATOR PANELS > 16
B4100, B4250

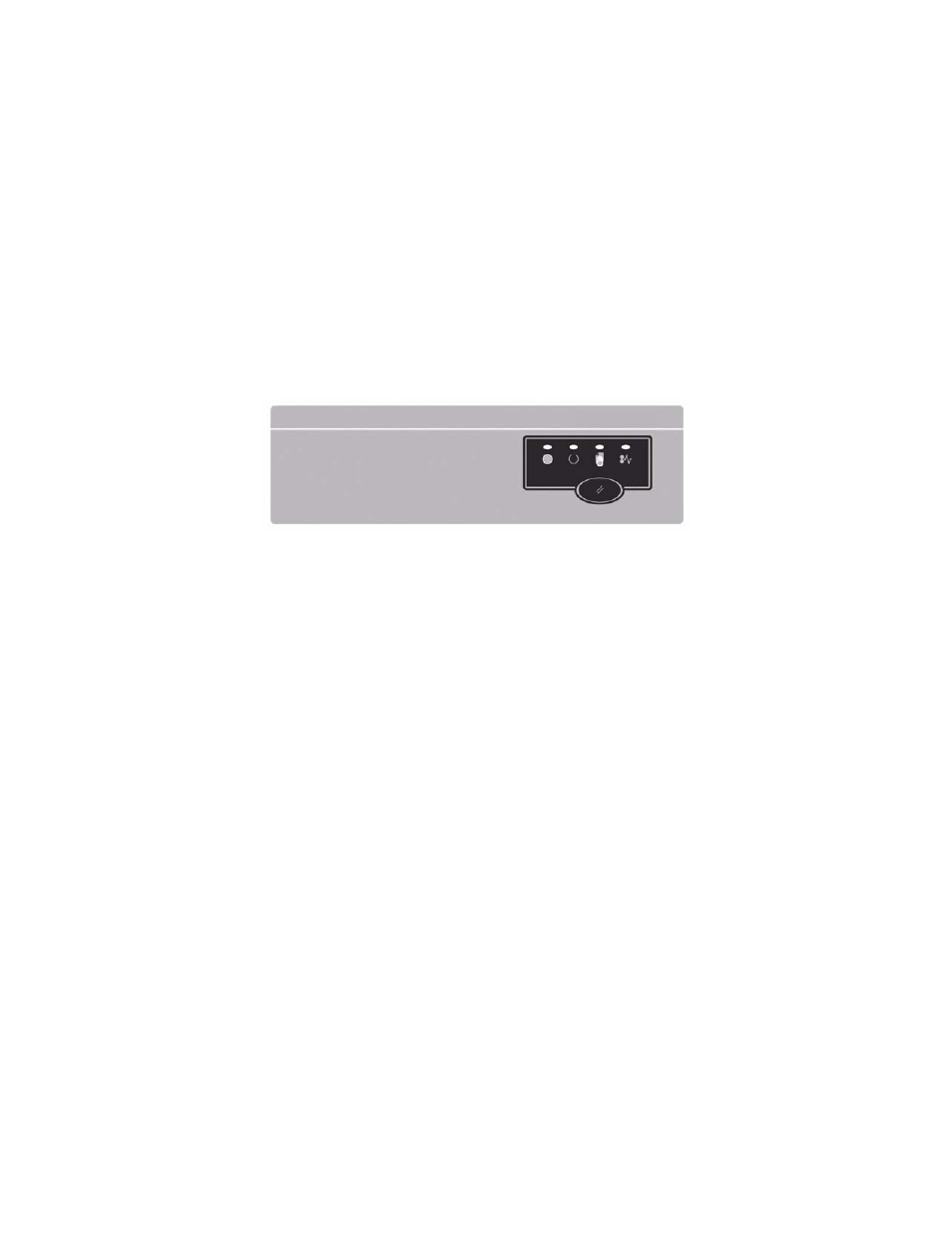

OPERATOR PANEL
The B4100 and B4250 operator panel consists of 4 LED indicators and a
control button. From left to right, the LEDs indicate Power On, Ready,
Manual feed and Error.
LED INDICATORS
The LED indicators show the status of the printer and have five operating
conditions as follows:
> Indicator off
> Indicator on
> Flash 1 - slow blink - 1 long flash every 4 seconds
> Flash 2 - blink - 1 flash per second
> Flash 3 - rapid blink - 4 flashes per second.
All four LED indicators come on momentarily when power is turned on.
Power on LED (green)
This indicator comes on and stays on when the printer is turned on.
Ready LED (green)
> Indicator on - the printer is on-line and ready to receive data.
> Indicator off - the printer is off-line and cannot receive data.
