Oki C5510 MFP - Manual (Page 36)

35
Troubleshooting
Paper Jams (cont’d)

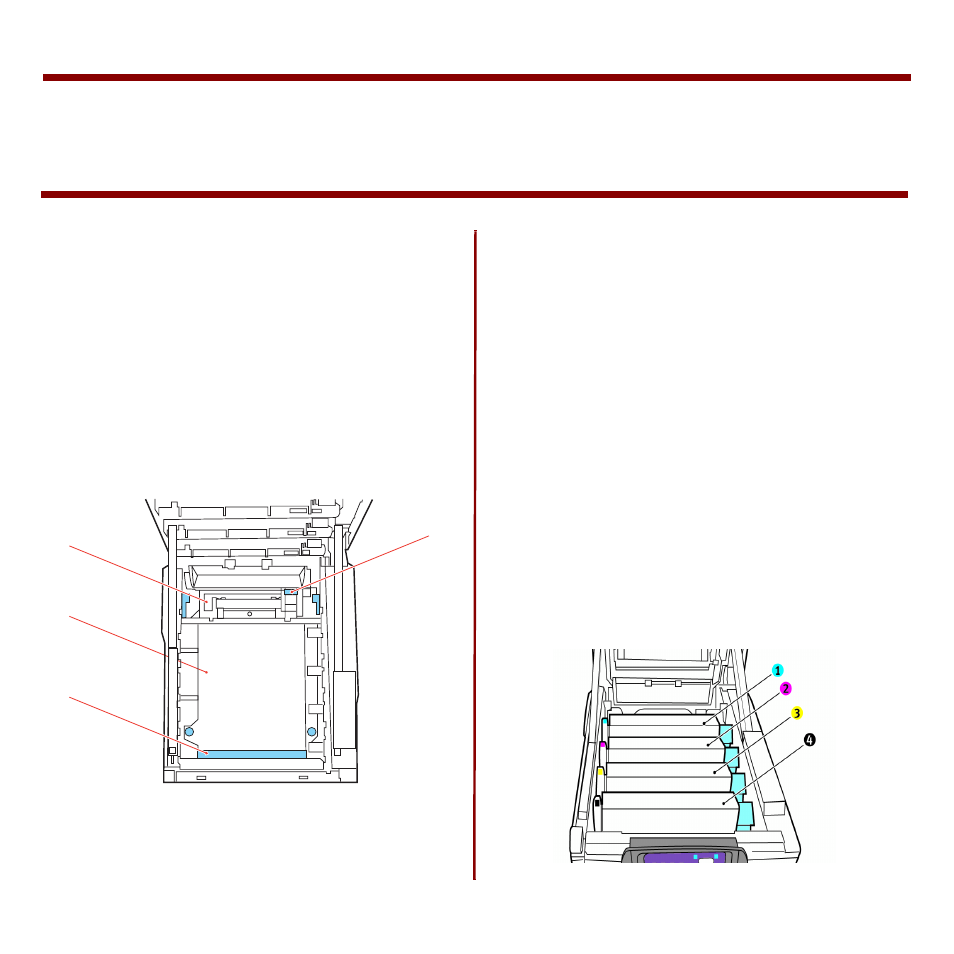

(a)To remove a sheet with its leading
edge at the front of the belt (1),
carefully lift the sheet, pull it forward
into the drum cavity and withdraw it.
(b)To remove a sheet from the central
area of the belt (2), carefully separate
the sheet from the belt surface and
withdraw the sheet.
(c)To remove a sheet just entering the
fuser (3), separate the trailing edge of
the sheet from the belt, push the fuser
pressure release lever (4) towards the
front and down to release the fuser’s
grip. Withdraw the sheet through the
drum cavity area. Then allow the
pressure release lever to rise again.
Note: If the sheet is well advanced into
the fuser (only a short length is still
visible), do not attempt to pull it back.
Follow the next step to remove it.
8. Starting with the cyan image drum
(1) unit nearest the fuser, replace the
four image drum units making sure
to locate them in the correct order.
2
4
3
1
