2.2c Dimensions and Mounting - End Device (zED)
Position unit where required. Mark and drill holes as required, using a #6 screw.
Figure 2.2c Mounting the End Device (zED)
2.3 External Sensors/Probes for the End Device
FROM TOP TO BOTTOM:
1) External Industrial Probe ,
Temperature / Humidity -THP
or
Barometric Pressure /
Temperature -BTP, -BTHP
2) External Temperature Stick
Probe -TP1
3) External Temperature Lug
Mount Probe -TP2
Figure 2.3 External Sensor/Probes
0.94
[23.8]
2.54 [64.5]

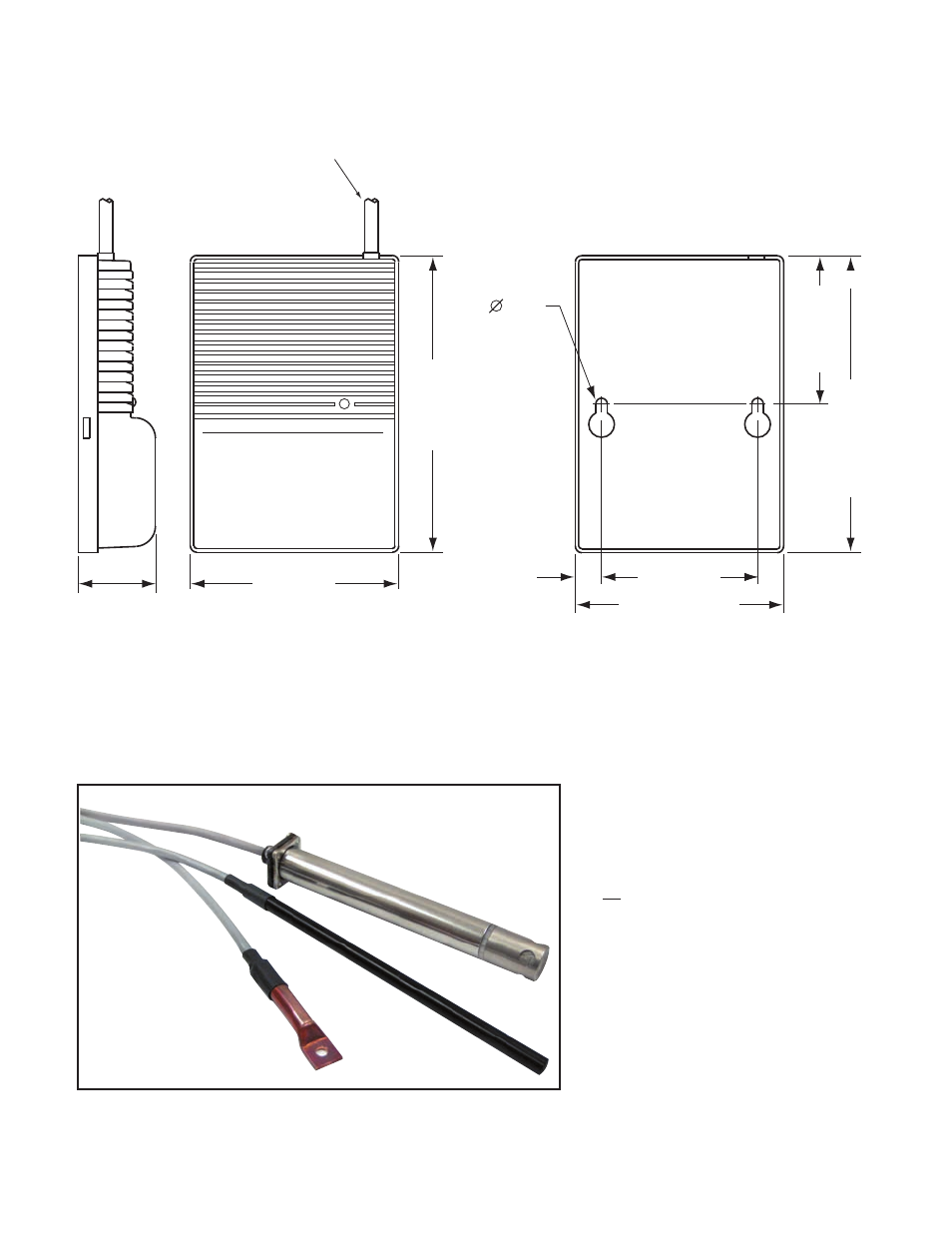

SIDE AND FRONT VIEWS
INSIDE CASE, MOUNTING
2.54 [64.5] REF
0.32 [8.1]
3.61 [91.8]
3.61 [91.8] REF
1.81 [45.9]
Optional
External
Sensor
0.140
[3.56]
2 PLCS
1.90 [48.3]
12
Material: PBT (Valox)
