5.7.5 Appendix: Media Specifications
5.7.5.1. Cut-Sheet Paper (Slip/Validation)

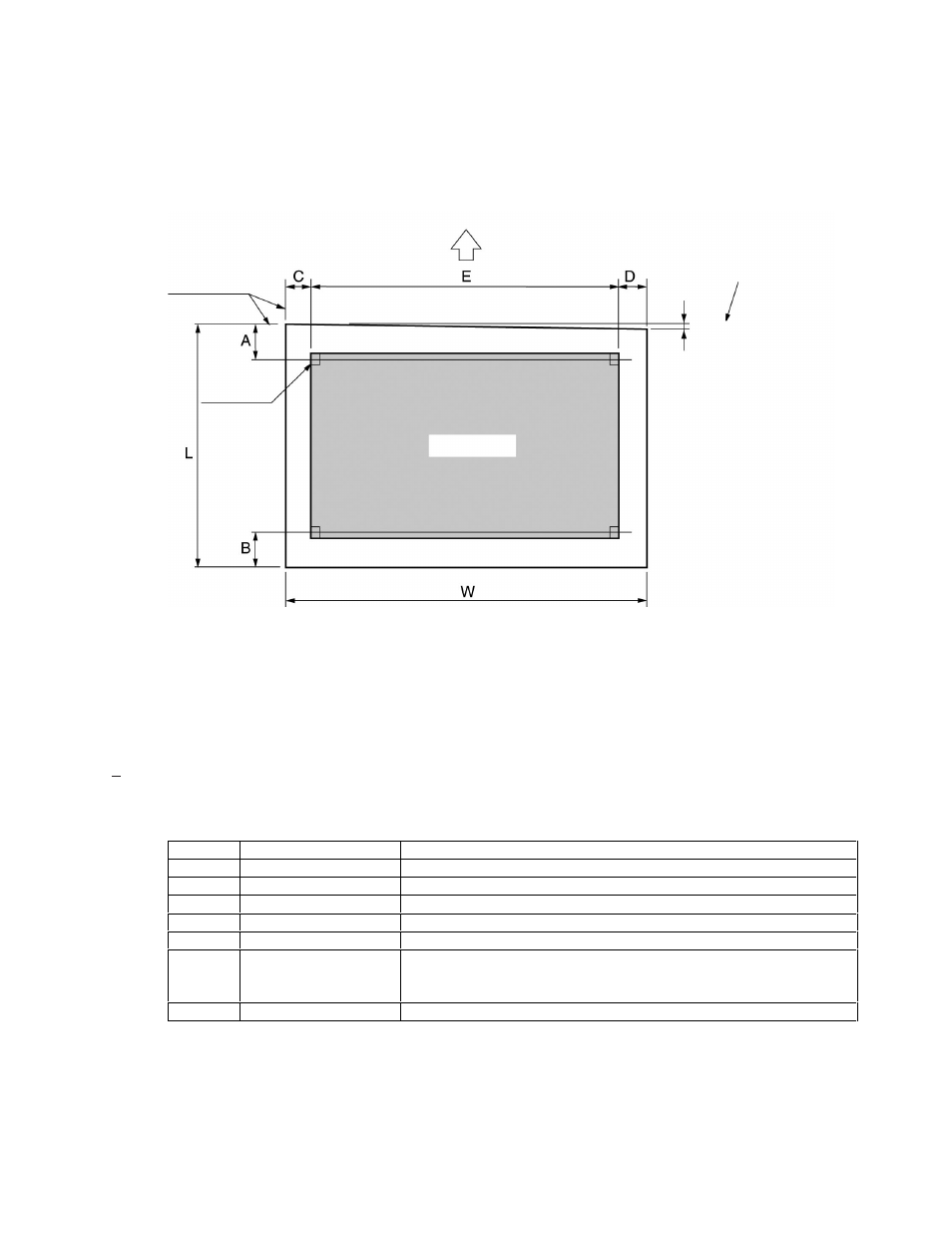

5.7.5.1.1. Paper Size and Printing Area
1
Single-part Paper
OP425_10.eps
1
Base line
2
First character position
3
Paper inserting direction
4
Against the perpendicular to the Base line
5
Printing area
6
+ 0.2mm or less
Standard media are in A5 and B5 sizes.
A25022.doc
Symbol
Designation
Standard Value
W
Paper width
105~215.9mm (4.13~8.5 inch)
L
Paper length
70~297mm (2.76~11.7 inch)
A
Top margin
6.35mm (1/4 inch)
B
Bottom margin
19.6mm (0.77 inch)
C
Left margin
2.54mm (0.1 inch) or more
D
Right margin
This distance may be adjusted from 2.54 to 27.94 mm (0.1~1.1 inch)
by moving the paper guide. D=2.54 mm may be set only for a sheet
whose W=190.5mm (7.5 inch) or shorter.
E
Printing area width
Max 160.02mm (6.3 inch)
Note 1
The height-width ratio must be 1: 2/3 – 2.
Note 2
Use a flat sheet free of curls, bends (especially those on its edges), cambers, wrinkles, etc. If a paper is not flat, it
may be contaminated with ink due to contact with the ribbon.
1
2
3
5
6
4
