14
USING THE UNIT SAFELY .
921

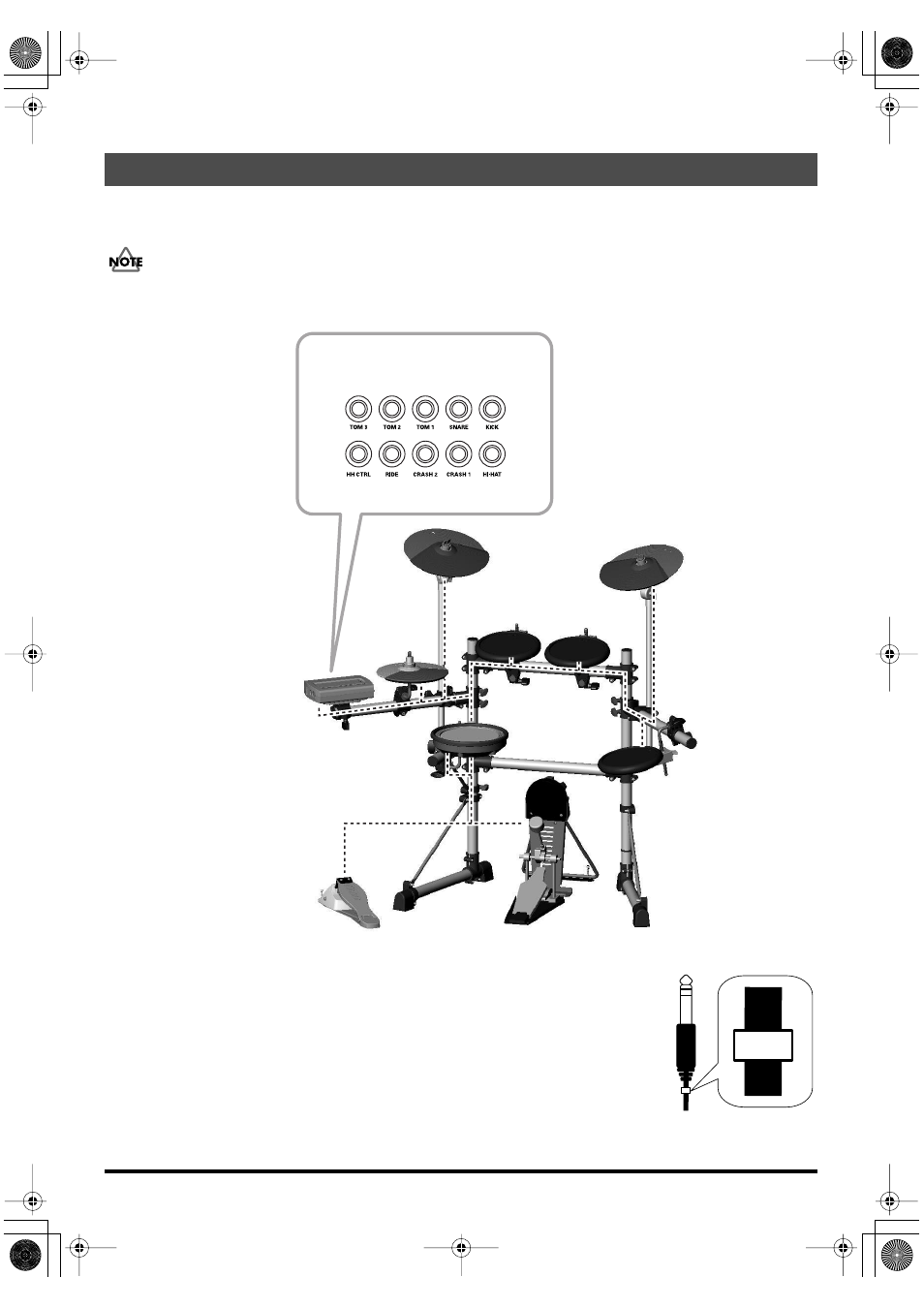

Using the provided cables, connect the pads.
Connect the L-shaped plugs of the included cables to the pads.
To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power
on all devices before making any connections.
fig.Setting1.e
fig.Label
1. Insert the plugs of connecting cables into the TRIGGER INPUTS jacks on the
rear of the TD-3.
2. Insert the L-sharped plugs into the TRIGGER OUTPUTS jacks of the pads.
* When you connect the cables, please refer to the labels that are attached to both ends of the cables.
Assemble the “TD-3KW”
CY-8 CY-8
CY-8 CY-8
PD-8 PD-8
PD-8 PD-8
PD-8 PD-8
PDX-8 PDX-8
KD-8 KD-8
FD-8 FD-8
CY-5 CY-5
TD-3 TD-3
KIK
SNR
T1
T2
T3
HH
HHC
CR1
RD
KIK SNR T1 T2 T3
HH HHC CR1 RD
Trigger Inputs
SNR
