Page 34: Pre l iminar y
22
Runco CX-52HD/CX-57HD Owner’s Operating Manual
PRE
L
IMINAR
Y
RS-232 Controller
Connection
Use a straight-through RS-232 cable with a 9-pin male connector to connect a PC or
home theater control/automation system (if present) to the RS-232 port on the Crystal
Series LCD; see Figure 3-10.
For more information about using this connection, refer to Serial Communications on
page 51.

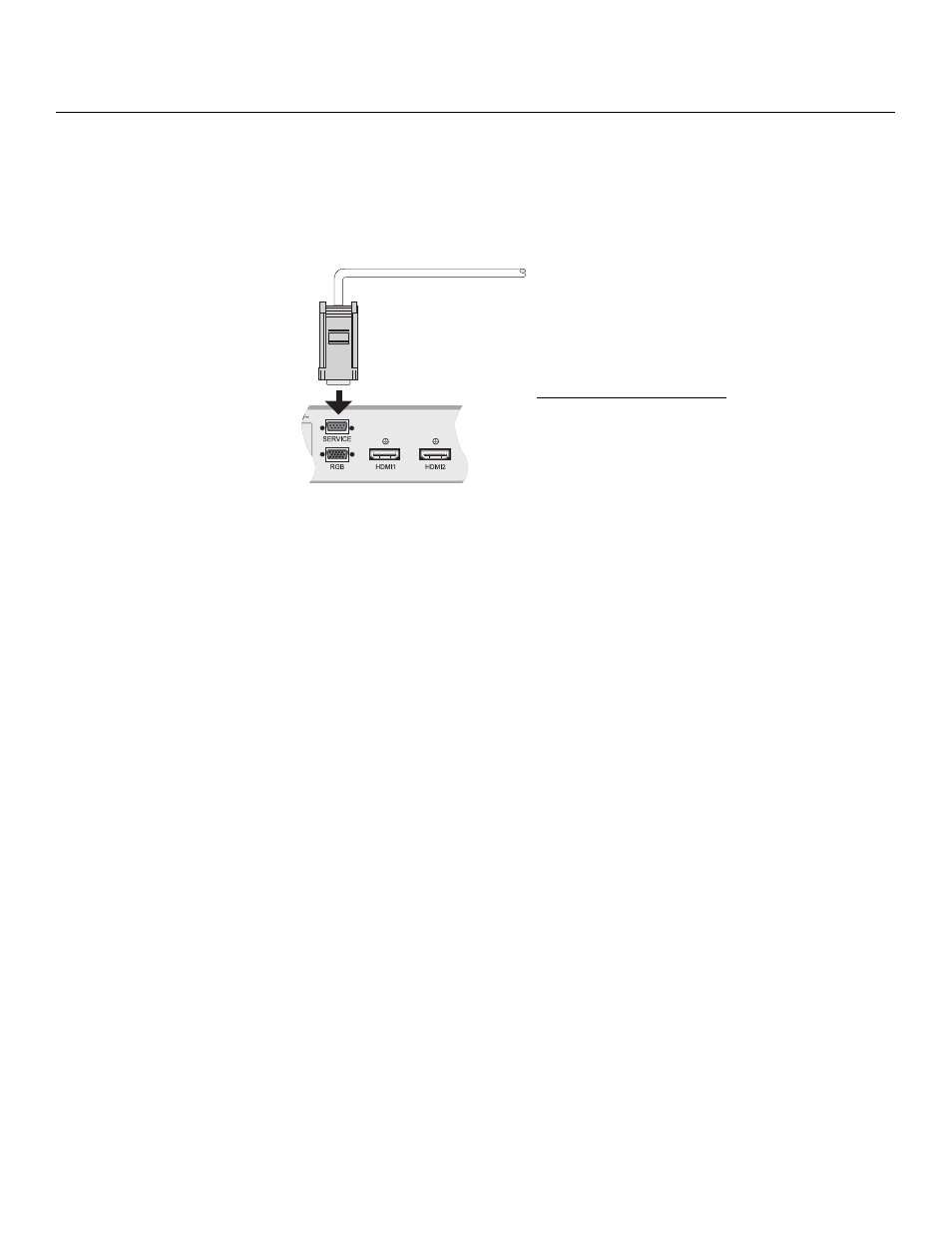

Figure 3-10. RS-232 Control System Connection
➤
Rear Panel
To PC or
Automation/
Control
System
DB-9
Male
Connector Pin Assignments:
2
Transmit Data
3
Receive Data
5
Ground
1, 4, 6, 7, 8, 9
Not Connected
