20
Runco CX-52HD/CX-57HD Owner’s Operating Manual
PRE
L
IMINAR
Y
AV OUT Connection
The Crystal Series LCD has stereo audio and Composite video outputs for connecting to a
second VCR or other auxiliary equipment. Connect the AV OUT audio and video jacks to
the audio and video inputs of the VCR or other equipment as shown in Figure 3-6.
You can route either the main or picture-in-picture (PIP) source signal to the AV output.
For more information, refer to Monitor Out on page 39.

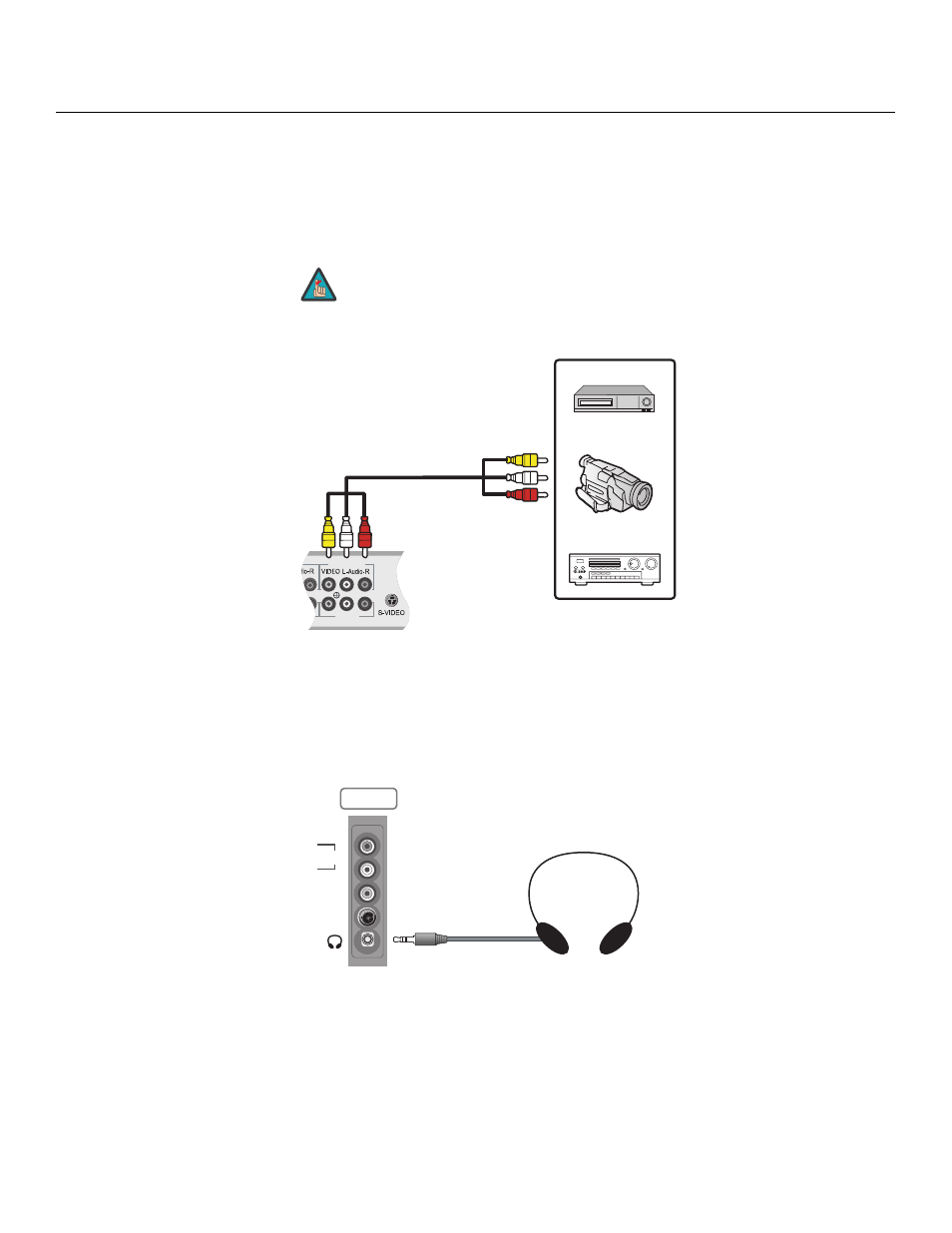

Figure 3-6. AV OUT Connections
Connecting Headphones
You can connect a set of headphones to the Crystal Series LCD to watch a program
without disturbing others. Connect them to the headphone output located at INPUT2; see
Figure 3-7.
Figure 3-7. Connecting Headphones
➤
The audio output level is fixed. (The volume and mute controls affect
only the speaker and headphone outputs.)
Note
INPUT1
Monitor-OUT
VCR
Camcorder
A/V Receiver
➤
L
R
S-VIDEO
VIDEO
Audio
INPUT2
