L900 Direct Vent Gas Fireplace
37
INST
ALLA
TION

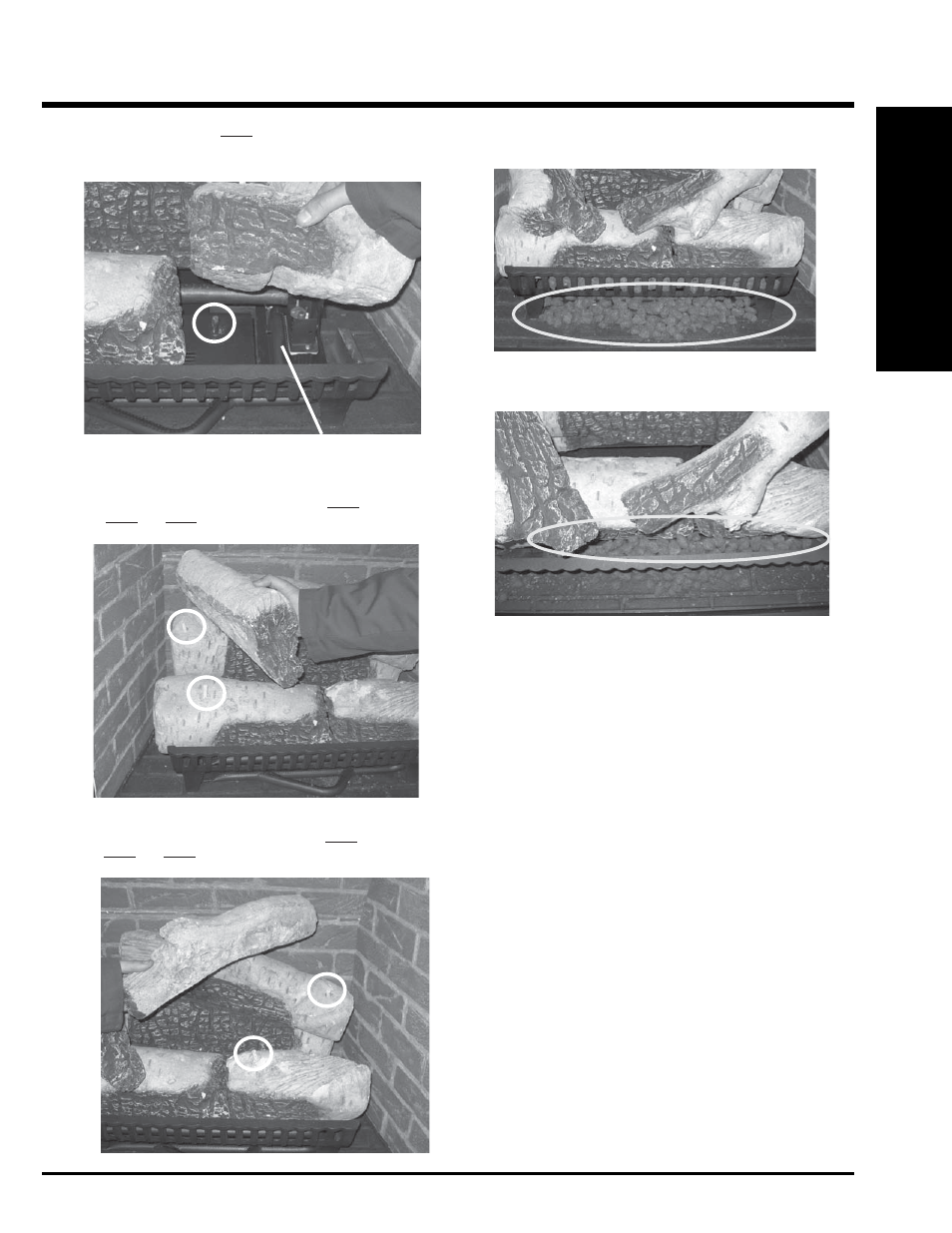

INSTALLATION
8)
Spread all of the Embers on the bottom brick panel around the burner
tube and on the inside of the grate as shown.
9)
Spread the vermiculite on the base brick panel covering the remaining
exposed base brick.
Embers on bottom brick panel.
Embers on inside of grate.
6)
Line up the two holes on the underside of log 03-44 with the pins on
logs 03-41 and 03-42 and fi t in place.
03-44
03-41
03-42
7)
Line up the two holes on the underside of log 03-45 with the pins on
logs 03-41 and 03-43 and fi t in place.
03-45
03-41
03-43
5)
Place the left end of log 03-43 into the pin while fi tting the notch
onto the burner tube. Slide the right end of the log forward until it is
approximately 3/8" away from the back side of the grate.
03-43
Burner Tube
