Page 38: 4. connecting the plasmawall to the dhd controller, Pre l iminar y
22
PlasmaWall XP Series Installation/Operation Manual
PRE
L
IMINAR
Y
3.4
Connections to the
PlasmaWall and DHD
Controller
Proceed as follows to connect the PlasmaWall to the DHD Controller, your video sources,
external controller(s) – if present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on
connectors that have them.
Connecting the
PlasmaWall to the DHD
Controller
Connect the DHD Controller to the PlasmaWall as shown in Figure 3-4 and described in
the sections that follow.

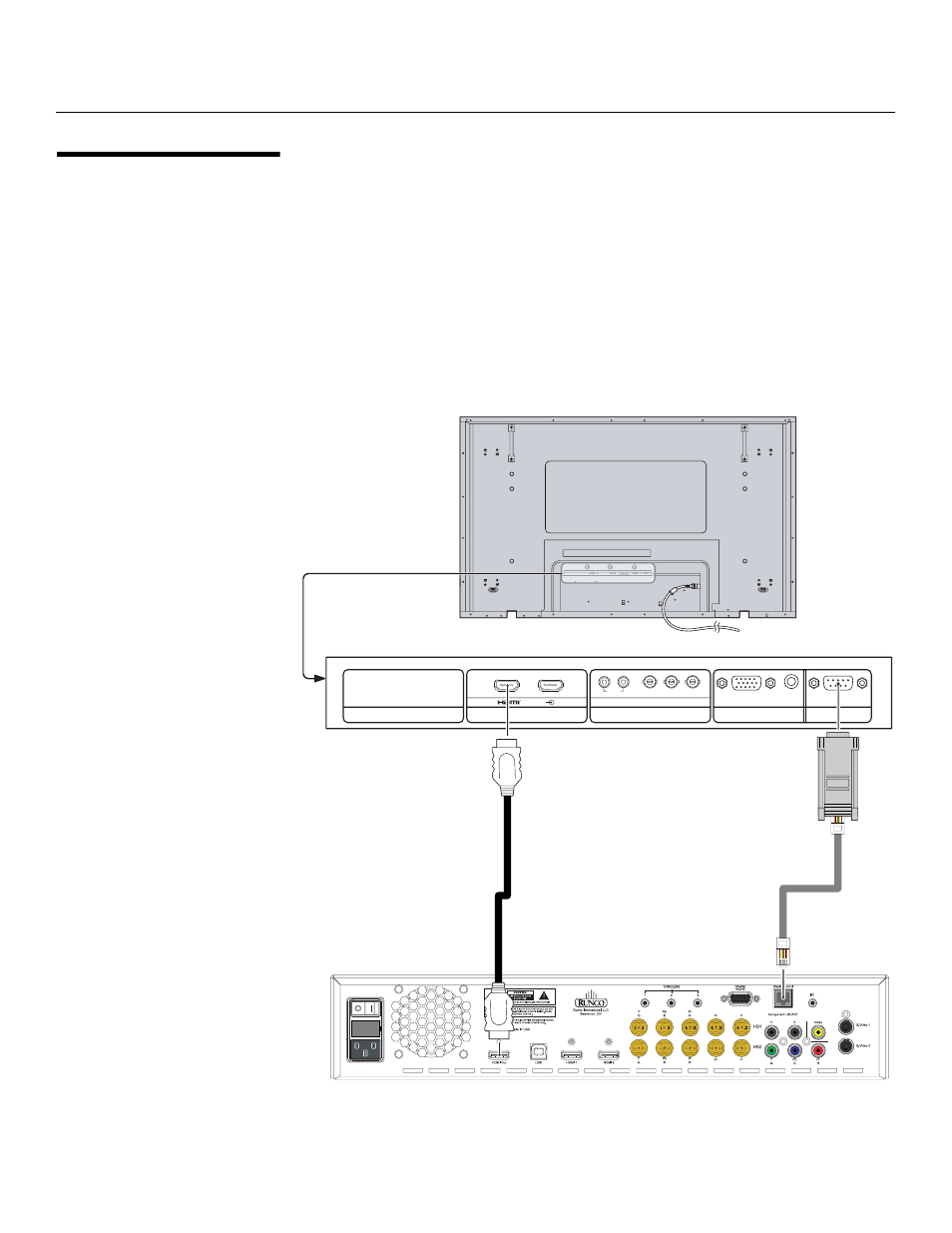

Figure 3-4. Connecting the PlasmaWall to the DHD Controller
➤
SERIAL
PC IN
AUDIO
SLOT1
P
R
/C
R
/R
P
B
/C
B
/B
Y/G
AUDIO
R
L
COMPONENT/RGB IN
SLOT2
SLOT3
AV IN
A
B
HDMI OUT
Display Control
(RS-232 OUT)
RS-232
Communication
Cable and
Adapter (provided)
PlasmaWall
Rear Panel
(XP-65DHD shown here)
