10
PlasmaWall XP Series Installation/Operation Manual
PRE
L
IMINAR
Y
2.3
DHD Controller Rear
Panel

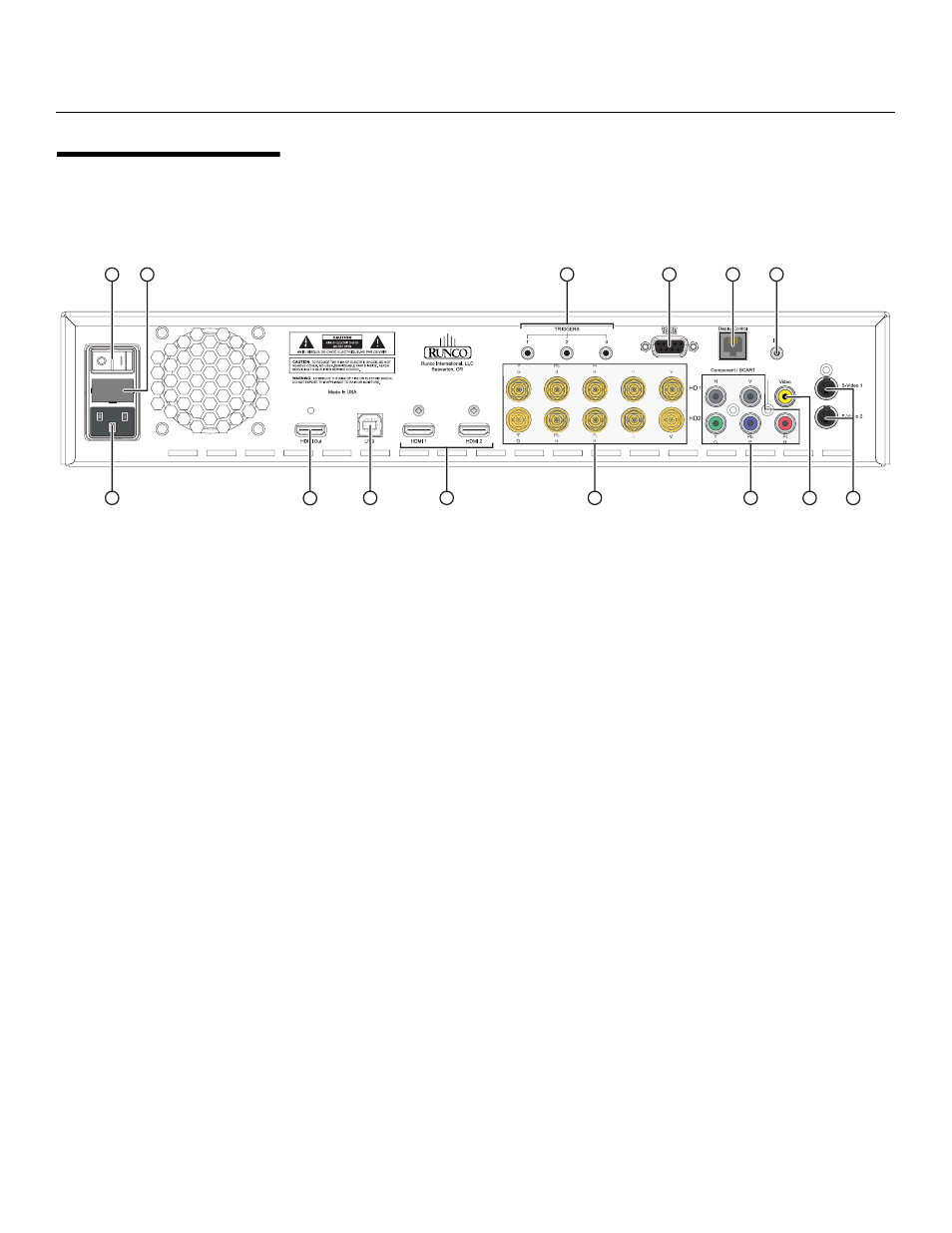

Figure 2-6 shows the rear connector panel on the DHD Controller.
Figure 2-6. DHD Controller Rear Panel
Outputs
1.
HDMI Out
Connect this to the SLOT 2/INPUT A connector on the PlasmaWall (see Figure 2-4).
2.
Display Control
Connect this to the SERIAL input on the PlasmaWall, using the provided
communication cable and adapter.
3.
TRIGGERS
Connection for up to three (3), 12-volt trigger-controlled devices. Output current is
limited to 250 milliamperes (mA).
1
5
6
4
14
2
3
10
11
7
8
9
12
13
➤
