1

Section 1 Connecting the Emulator with the User System

1.1

Components of the Emulator

The SH7710 E10A emulator supports the SH7710. Table 1.1 lists the components of the
emulator.

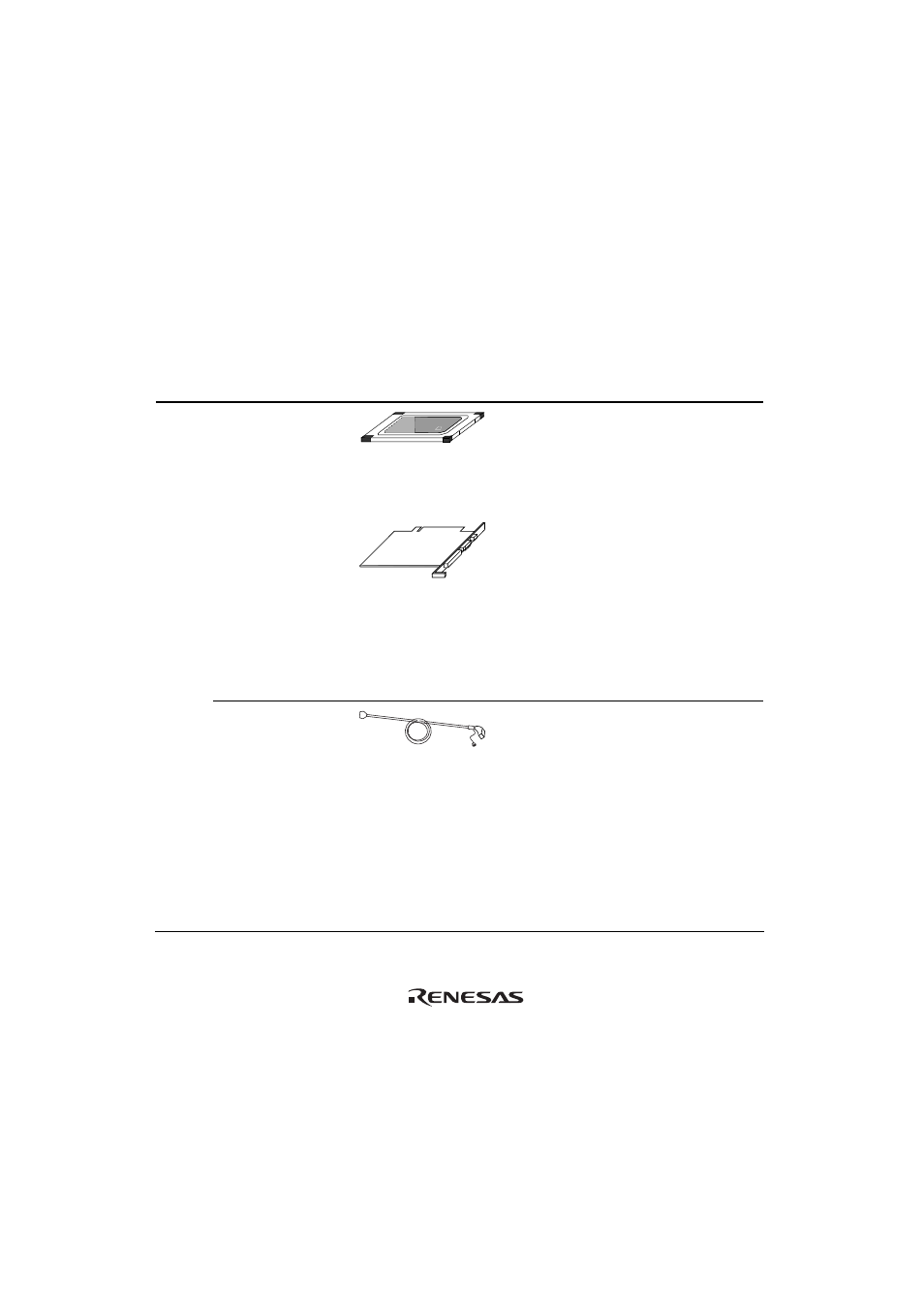

Table 1.1 Components of the Emulator (HS7710KCM01H, HS7710KCM02H,

HS7710KCI01H, or HS7710KCI02H)

Classi-
fication


Component


Appearance

Quan-
tity


Remarks

Hard-
ware

Card emulator

Insert

PC Card Emulator

H-UDI Micro Computer

Development System

HITACHI

PC

Card

(PCMCIA)

or

(PCI)

1 HS7710KCM01H

(PCMCIA: 14-pin type):
Depth: 85.6 mm, Width: 54.0 mm,
Height: 5.0 mm, Mass: 27.0 g

HS7710KCM02H
(PCMCIA: 36-pin type):
Depth: 85.6 mm, Width: 54.0 mm,
Height: 5.0 mm, Mass: 28.0 g

HS7710KCI01H
(PCI: 14-pin type):
Depth: 144.0 mm, Width: 105.0
mm, Mass: 93.0 g

HS7710KCI02H
(PCI: 36-pin type):
Depth: 122.0 mm, Width: 96.0
mm, Mass: 90.0 g

User system interface
cable

1 HS7710KCM01H

(PCMCIA: 14-pin type):
Length: 80 cm, Mass: 45.0 g

HS7710KCM02H
(PCMCIA: 36-pin type):
Length: 30 cm, Mass: 55.0 g

HS7710KCI01H
(PCI: 14-pin type):
Length: 150 cm, Mass: 86.0 g

HS7710KCI02H
(PCI: 36-pin type):
Length: 80 cm, Mass: 69.0 g
