4-2 SL520/530/631 PLUS Chartplotter Displays
Me
asu
rin
g Di
stan
ce
s
U
sin
g th
e
VR
M/
EB
L
Ke
y
4.2 Measuring Distances Using the VRM/EBL Key
You can obtain an accurate measurement of the distance and bearing between
two points by using the VRM/EBL key.
➤ To place a ruler line and Ruler data box:
1. Position the cursor on the starting point from which you wish to measure.
2. Press VRM/EBL.
A Ruler data box is displayed showing the bearing and distance from the
starting point to the cursor position. The character A appears at the cursor
location.
3. Use the trackpad to move the cursor to the measurement end point. A line
connects the cursor to the starting point, and the Ruler data box is updated
to show the bearing and length of the line as shown in Figure 4-1.
4. Press ENTER to fix the end point of the ruler line, and return to normal cur-
sor control. The letter B marks the location of the end point on the chart.

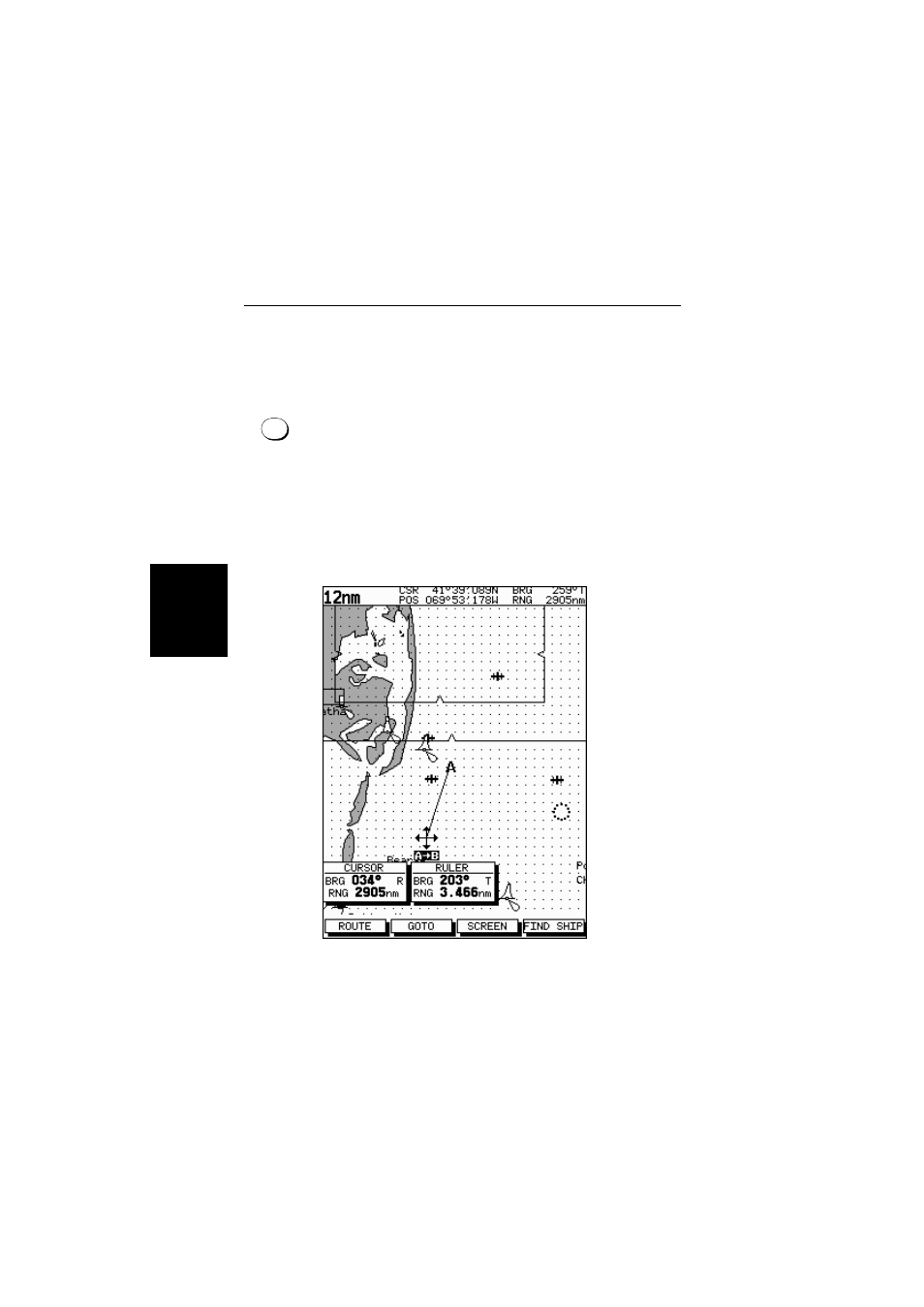

Figure 4-1: Measuring Distance Using a VRM
VRM/EBL
