8

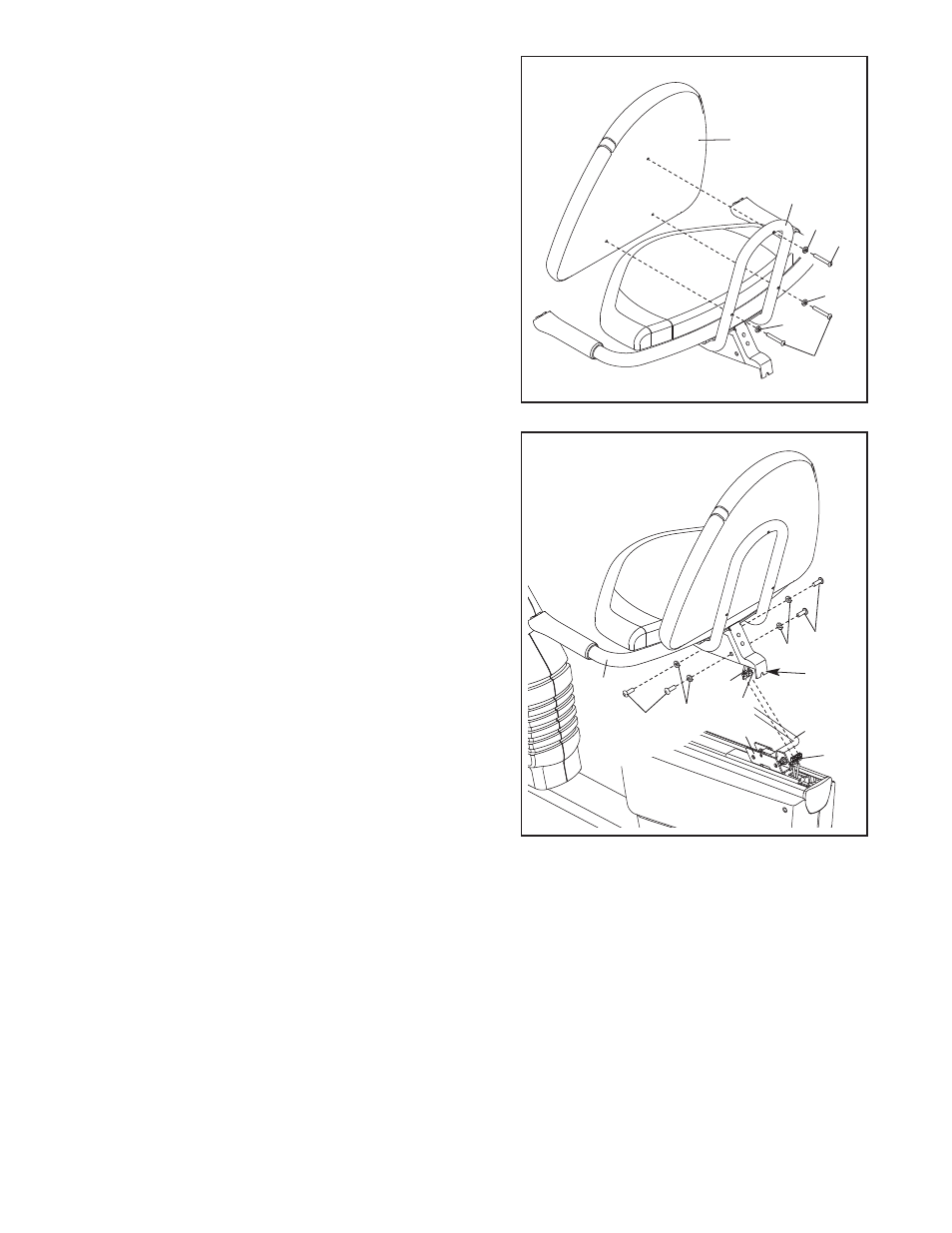

8. Attach the Backrest (8) to the Backrest Bracket (3)
with three M6 x 38mm Button Screws (72) and three
M6 Washers (44). Start all three Button Screws
before you tighten any of them.
8
3
44
44
8
44
72
72
9. Push the seat handle down. Pull the Seat Carriage
(41) towards the back of the exercise cycle until it
stops. Then, pull up on the seat handle to lock the Seat
Carriage in place.
While another person holds the Seat Bracket (11) near
the Seat Carriage (41), connect the Right Controller
Wire (82), which has a tag attached, to the wire on the
Rear Wire Harness (51) that has a tag attached. Then,
connect the Left Controller Wire (61) to the other wire
on the Rear Wire Harness. Make sure that the con-
nectors on the Controller Wires (61, 82) are posi-
tioned side by side under the plastic cover on the
Seat Bracket.
Be careful to avoid pinching and damaging the
wires. Attach the Seat Bracket (11) to the Seat
Carriage (41) with four M8 x 19mm Button Screws (77)
and four M8 Split Washers (55).
11 61
41
51
82
77
77
Plastic
Cover
Seat
Handle
55
55
9
Avoid pinching and
damaging the wires.
