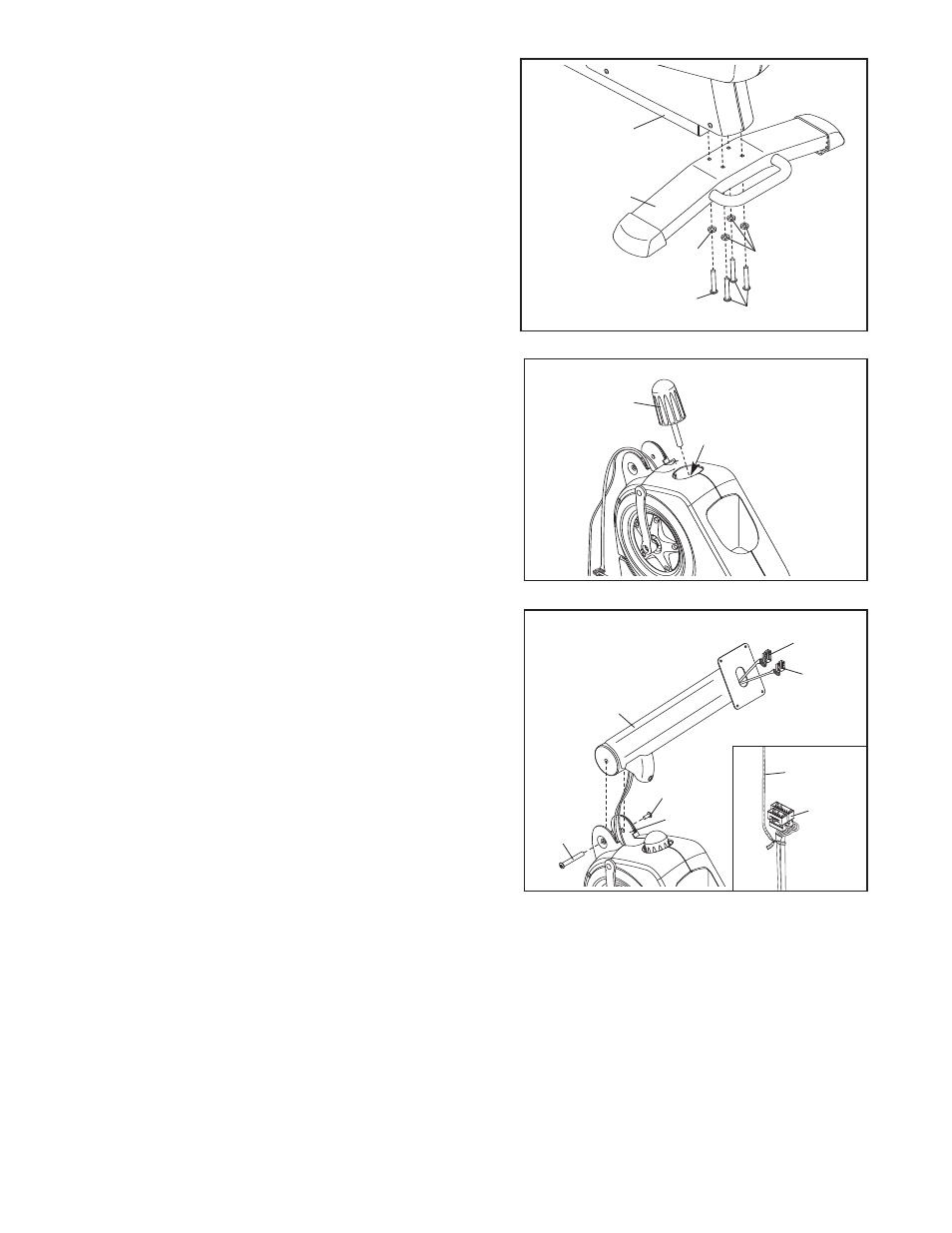

2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (16) to the Frame with four
M8 x 50mm Button Screws (52) and four M8 Split
Washers (55).
52
16
1
4
2
Avoid pinching
and damaging
the wires.
1
4. While another person holds the Upright (2) near the
Frame (1), use the wire tie in the Upright to pull the
Upper and Main Wire Harnesses (42, 43) through the
Upright. See the inset drawing. Tie the wire tie to the
ends of the Wire Harnesses. Then, pull the other end
of the wire tie upward out of the top of the Upright.
Attach the Upright (2) to the Frame (1) with an
M10 x 63mm Bolt Set (62). Be careful to avoid pinch-
ing the Wire Harnesses (42, 43).
2
52
55 55
62
43
62
42, 43
42
3
7
1
3. Tighten the Upright Knob (7) into the Frame (1).
Wire Tie
