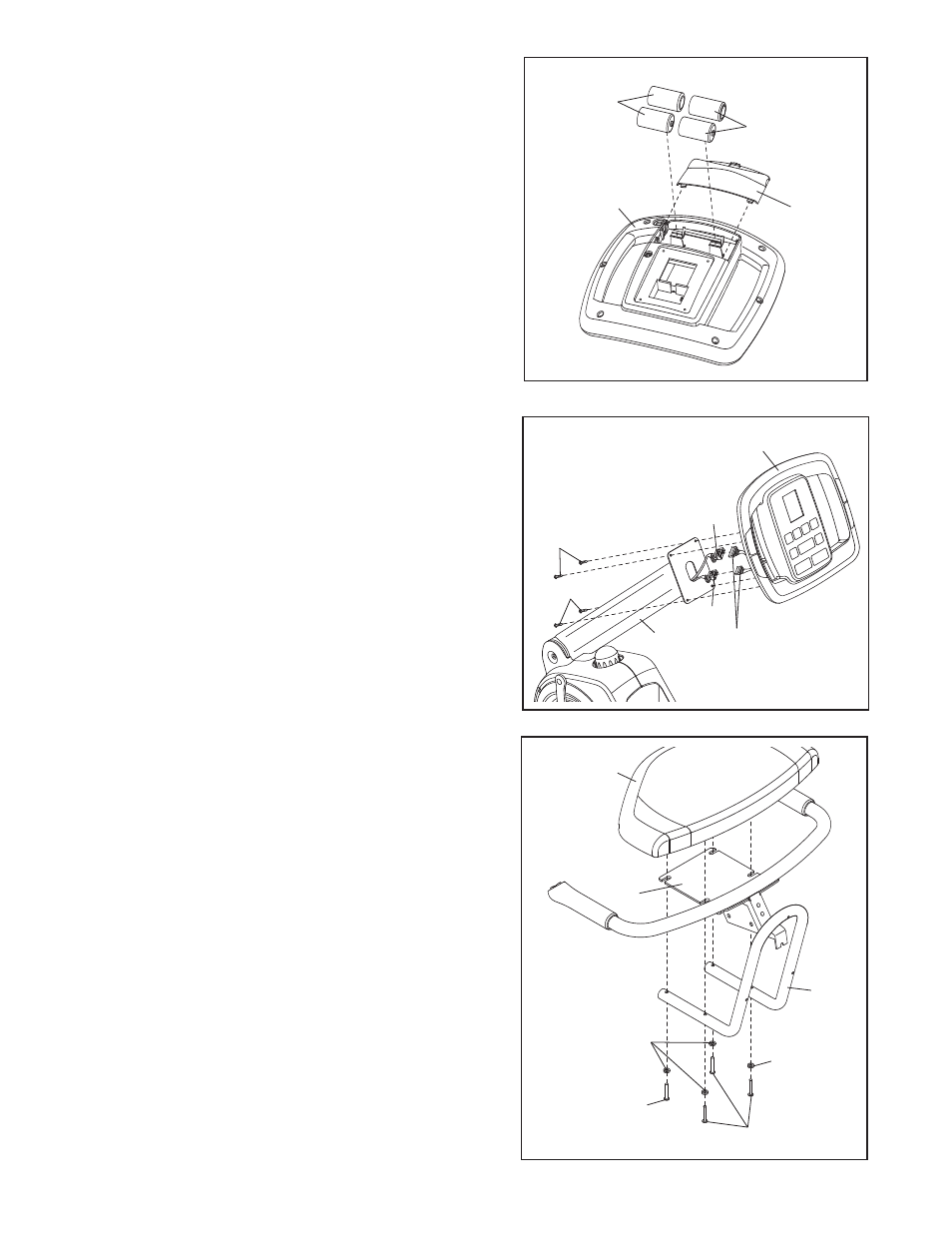

5. The Console (4) requires four “D” batteries (not includ-

ed); alkaline batteries are recommended. IMPOR-

TANT: If the exercise cycle has been exposed to

cold temperatures, allow it to warm to room tem-

perature before inserting batteries into the

Console. If you do not do this, the console dis-

plays or other electronic components may become

damaged. Remove the battery cover from the back of

the Console. Next, insert four batteries into the battery

compartment; make sure that the batteries are ori-

ented as shown by the diagram inside the battery

compartment. Then, reattach the battery cover.

Batteries

Battery

Cover

Batteries

7. Attach the Seat (9) and the Backrest Bracket (3) to the

Seat Bracket (11) with four M6 x 42mm Button

Screws (81) and four M6 Washers (44) as shown.

Start all four Button Screws before you tighten any

of them.

6. While another person holds the Console (4) near the

Upright (2), connect the console wire harnesses to the

Upper and Main Wire Harnesses (42, 43). Insert the

excess wire downward into the Upright.

Attach the Console (4) to the Upright (2) with four

M4 x 16mm Round Head Screws (80). Be careful to

avoid pinching the Wire Harnesses (42, 43).

Console

Wire

Harnesses

Avoid pinching and

damaging the wires.
