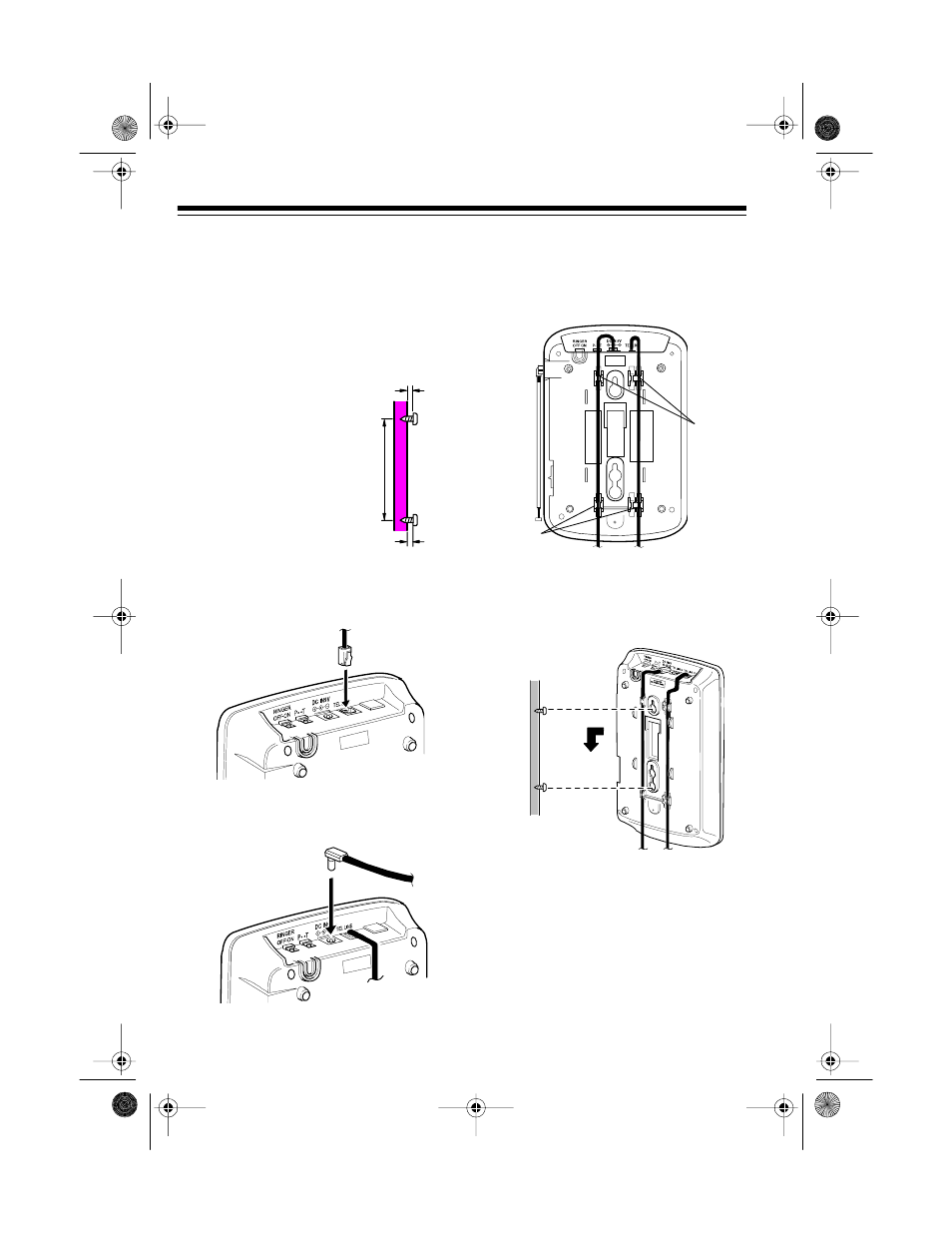

Mounting the Base
Directly on the Wall
To mount the base directly on the wall,
you need two wood screws (not sup-
plied) with heads that fit into the key-
hole slots on the bottom of the base.
1. Drill two holes 3 15 /
16
inches apart. Then
thread a screw into
each hole, letting
the heads extend
about
5 /
16
inch from
the wall.
2. Plug one end of the modular cord
into the TEL LINE jack on the back
of the base.
3. Plug the supplied AC adapter’s
barrel plug into the DC IN 9V jack.
4. Route the adapter and modular
cords through the upper and lower
grooves on the bottom of the
base.
5. Align the keyhole slots with the
mounting screws and slide the
base downward to secure it.
3 15 / 16
5 / 16
5 / 16
Upper
Grooves
Lower
Grooves
