Replacing Consumables and Maintenance Kit
46
D

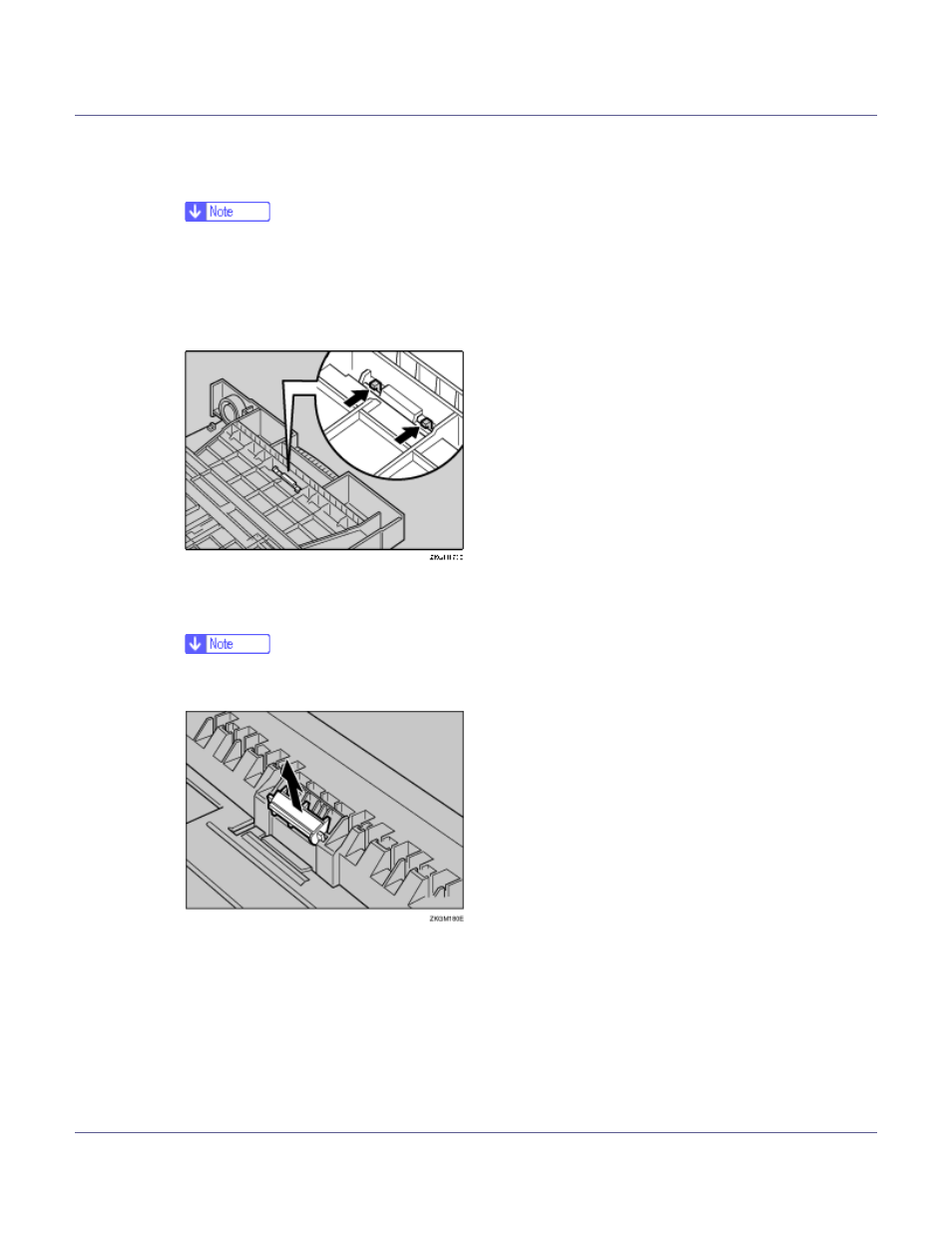

Use a sharp-pointed item like a ball-point pen, to release the two catches
that lock the friction pad.
❒ The friction pad may fall off when the catches are released. Place your
hand over the friction pad while releasing the catches.
❒ The friction pad spring may come off. Be careful not to lose the friction pad
spring.
❒ The catches that lock the friction pad are located at the very back.
E
Return the paper tray to its original position, and then remove the fric-
tion pad from the tray.
❒ The friction pad spring may come off. Be careful not to lose the friction pad
spring.
F
Insert the new friction pad in the paper tray.
