Regency E21 Gas Fireplace Insert

INSTALLATION

POLICY FOR SOLID

FUEL BURNING &

FACTORY BUILT

FIREPLACES

The Regency E21 may be installed and vented

into any solid fuel fi replace that has been installed

in accordance with the National, Provincial and

local building codes and is constructed of non-

combustible materials.

1) Installer must mechanically attach the sup-

plied label to the inside of the fi rebox of the

fi replace into which the gas fi replace insert

is installed.

2) Do not cut any sheet-metal parts of the

fi replace, in which the gas fi replace insert

is to be installed.

3) If the factory-built fi replace has no gas access

hole(s) provided, an access hole of 1-1/2"

(37.5mm) or less may be drilled though the

lower sides or bottom of the fi rebox in a proper

workmanship like manner. This access hole

must be plugged with a non-combustible

insulation after the gas supply line has been

installed.

4) The fi replace fl ue damper can be fully blocked

open or removed for installation of the gas

fi replace insert.

5) The fi replace and fi replace chimney must

be clean and in good working order and

constructed of non-combustible materials.

6) The chimney cleanouts must fi t properly.

7) Refractory (fi rebricks), glass doors, screen

rails, screen mesh and log grates can be

removed from the fi replace before installing

the gas fi replace insert.

8) Smoke shelves, shields and baffl es may be

removed if attached by mechanical fasteners.

If any part is removed it must not weaken

the structural integrity of the factory built.

9) Trim panels or surrounds shall not seal

ventilation openings in the fi replace.

MINIMUM FIREPLACE

CLEARANCES

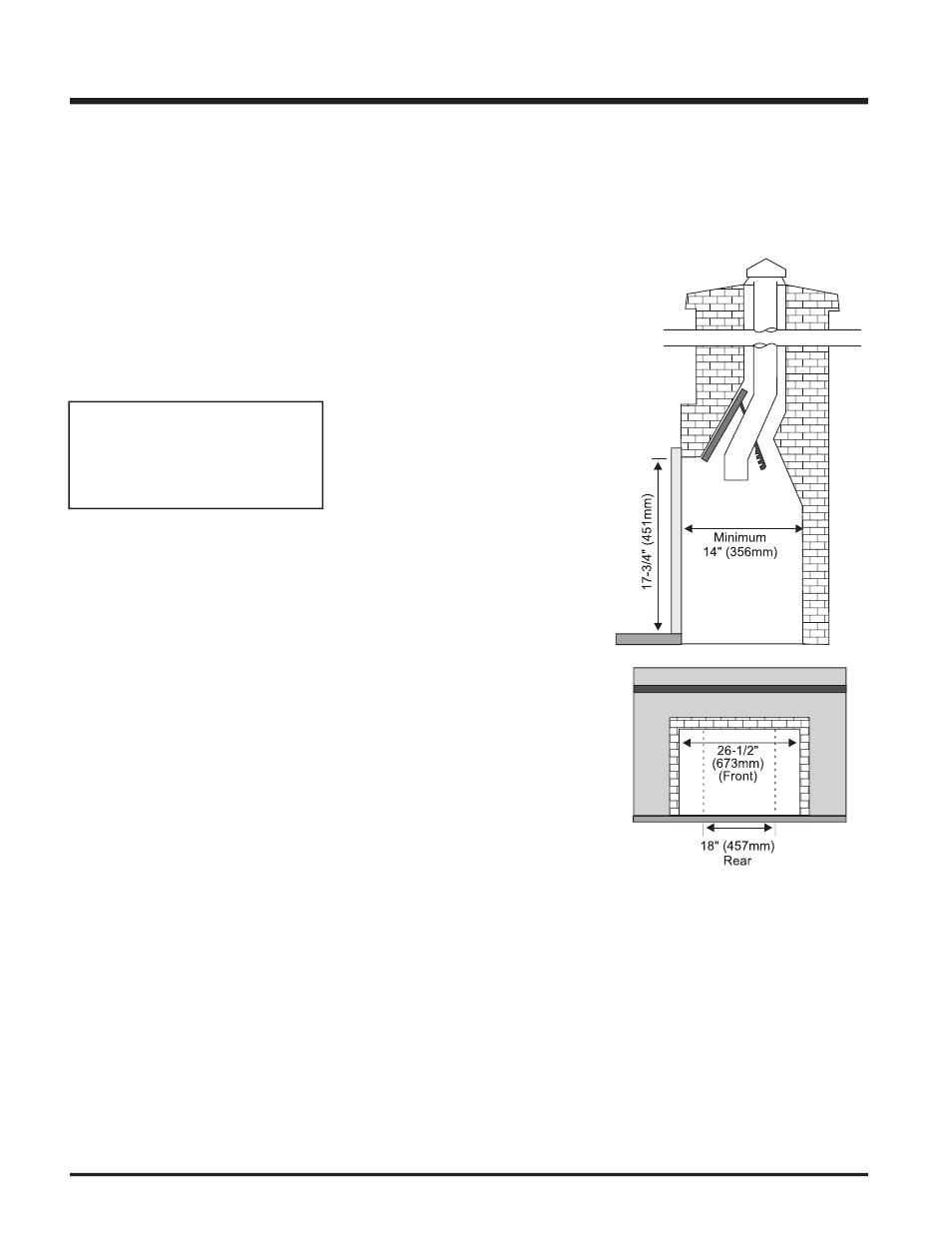

Diagram shows the minimum fi replace opening

required to be able to install the Regency gas

fi replace insert.

INSTALLATION

CHECKLIST

1) Locate appliance, check Clearances to

Combustibles, page 7.

2) Make gas and electrical connections, page

8. Test the pilot. Must be as per diagram,

page 11.

3) Install Flue Connector, page 9.

4) Install vent, page 10.

5) Test Gas pressure, page 10, and check

aeration, page 11.

6) Test for fl ue spillage, page 11.

7) Install brick panels (optional), page 11.

8) Install log set, page 11.

9) Install Faceplate and Trim, page 12.

10) Install Flush Door Front (Standard), page

13.

11) Install Optional Bay Front and optional Bay

Gold Trim, page 14.

12) Install Louvers (Flush or Bay), pages 13 and

14.

13) Install optional Wall Switch, Remote Control,

or Wall Thermostat, page 19.

14) Final check, page 20.

Before leaving this unit with the customer,

the installer must ensure that the appliance is

fi ring correctly and operation fully explained to

customer.

This includes:

1) Clocking the appliance to ensure the correct

fi ring rate (rate noted on label) after burning

appliance for 15 minutes.

2) If required, adjusting the primary air to ensure

that the fl ame does not carbon. First allow

the unit to burn for 15-20 min. to stabilize.

3) Ensure that the appliance is venting

correctly.

CAUTION: Any alteration to the product that

causes sooting or carboning that results

in damage is not the responsibility of the

manufacturer.

Note: If you are installing the Molded Faceplate,

the minimum fireplace dimensions are as

follows:

Width (at front): 29-1/8" (740mm)

Depth:

15" (381mm)

Height:

18-5/8" (473mm)

"

WARNING: This fi replace has been converted

for use with a gas fi replace insert only and

cannot be used for burning wood or solid fuels

unless all original parts have been replaced,

and the fi replace re-approved by the authority

having jurisdiction."
