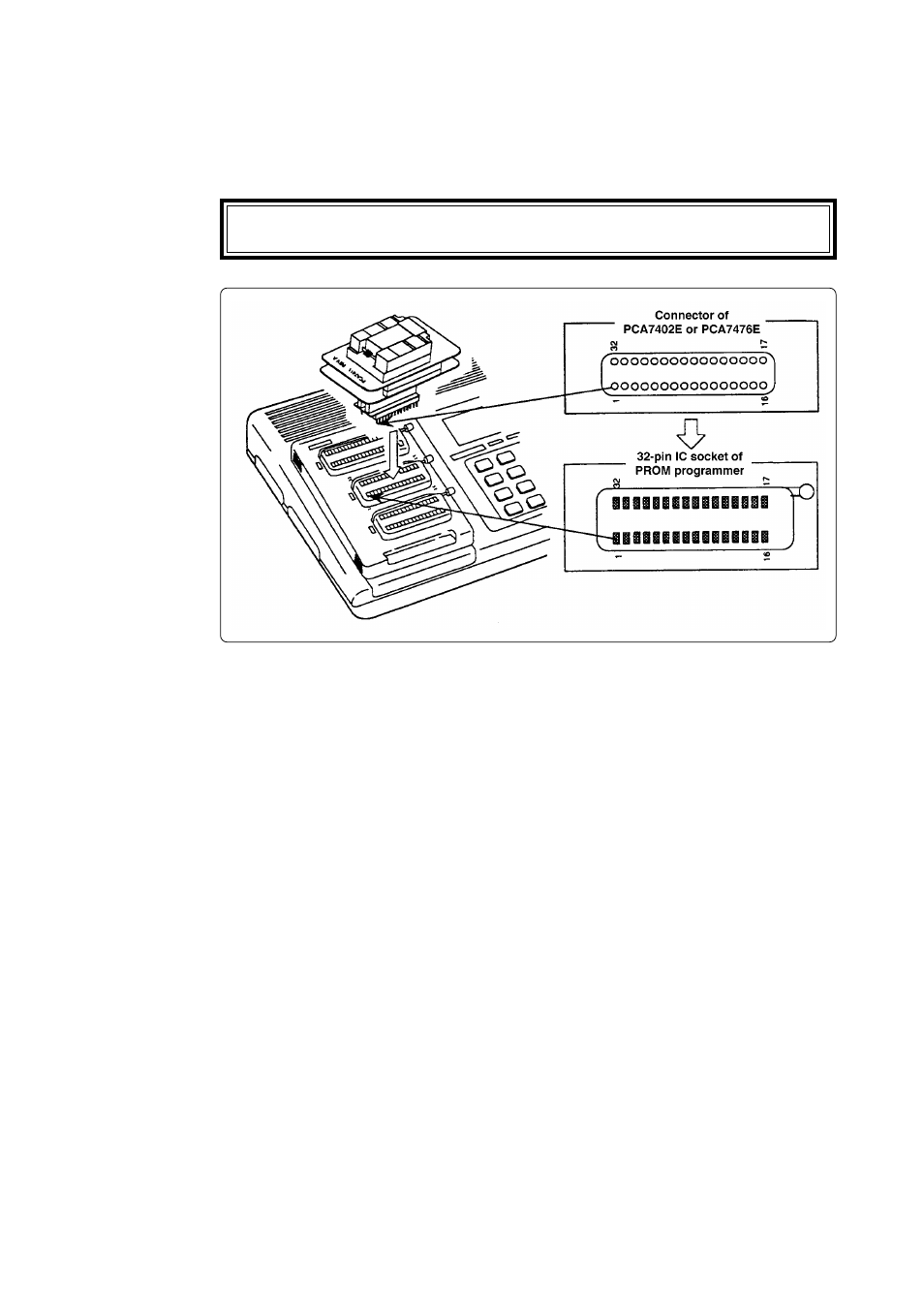

Figure 3.1 Attaching the adapter to a PROM programmer
3.2 Attaching Adapter to PROM Programmer
As shown in Figure 3.1, attach the pin No. 1 of the PROM programmer connector, PCA7402E or
PCA7476E (standard-pitch 32-pin pin-header mounted) to the No.1 pin of the IC socket of the PROM
programmer.
Be careful when attaching to the PROM programmer because an incorrect
insertion can cause fatal damage to the MCU.
