39
The wire coloured BLUE must be connected to the terminal marked N or
coloured BLACK.
The wire coloured BROWN must be connected to the terminal marked L
or coloured RED.
Mains supply
The RDK2 will operate from a supply of AC 230 volts, 50Hz only.
DO NOT cut off the mains plug from this equipment. If the plug fi tted is
not suitable for the power points in your home or the cable is too short to
reach a power point, then obtain an appropriate safety approved extension
lead or adaptor. If in doubt consult your dealer.
If the mains plug is cut off for any reason, immediately remove the fuse
and dispose of the plug to avoid a possible shock hazard by inadvertent
connection to the mains supply.

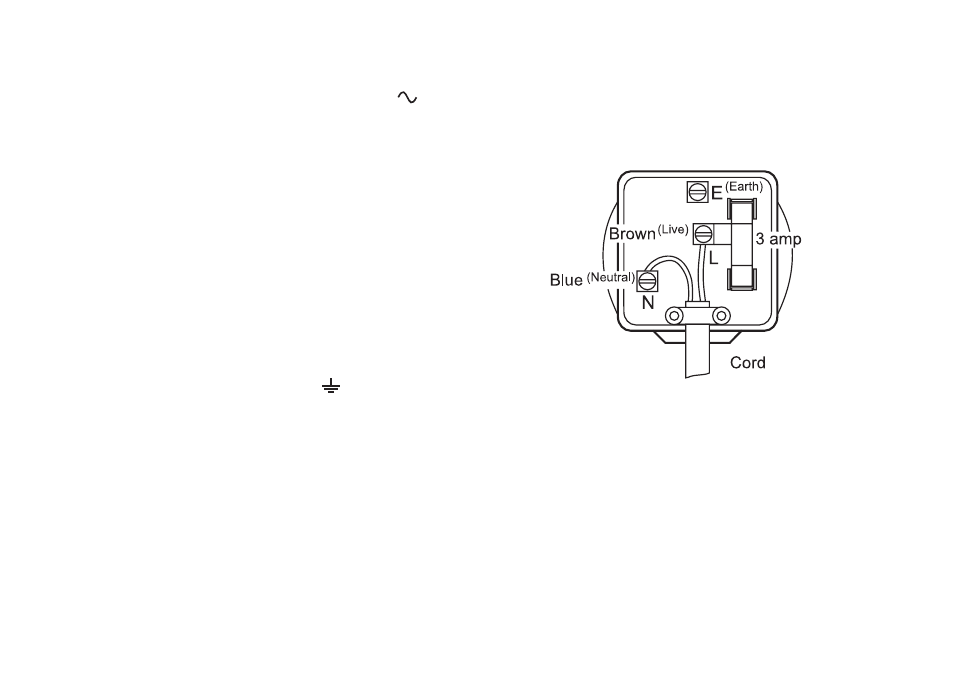

If this product is not supplied with a mains plug, or one has to be fi tted,
then follow the instructions given below:
IMPORTANT
DO NOT make any connection to the larger terminal which is marked
with the letter E or by the safety earth symbol
or coloured Green or
Green-and-Yellow.
The wires in the mains lead are coloured in accordance with the following
codes :-
BLUE - NEUTRAL BROWN - LIVE
Fuse
When replacing the fuse only a 3 Amp ASTA approved to BS1362 type
should be used. Be sure to re-fi t the fuse cover.
IF IN DOUBT - CONSULT A QUALIFIED ELECTRICIAN.
Replacement fuse holders are available from Roberts Radio Technical
Services at the address shown on the rear of this manual.
