OPERATION
1625 01/11
Operation Section 4-3
© 2011 Alamo Group Inc.
OPERA
T
ION
1.

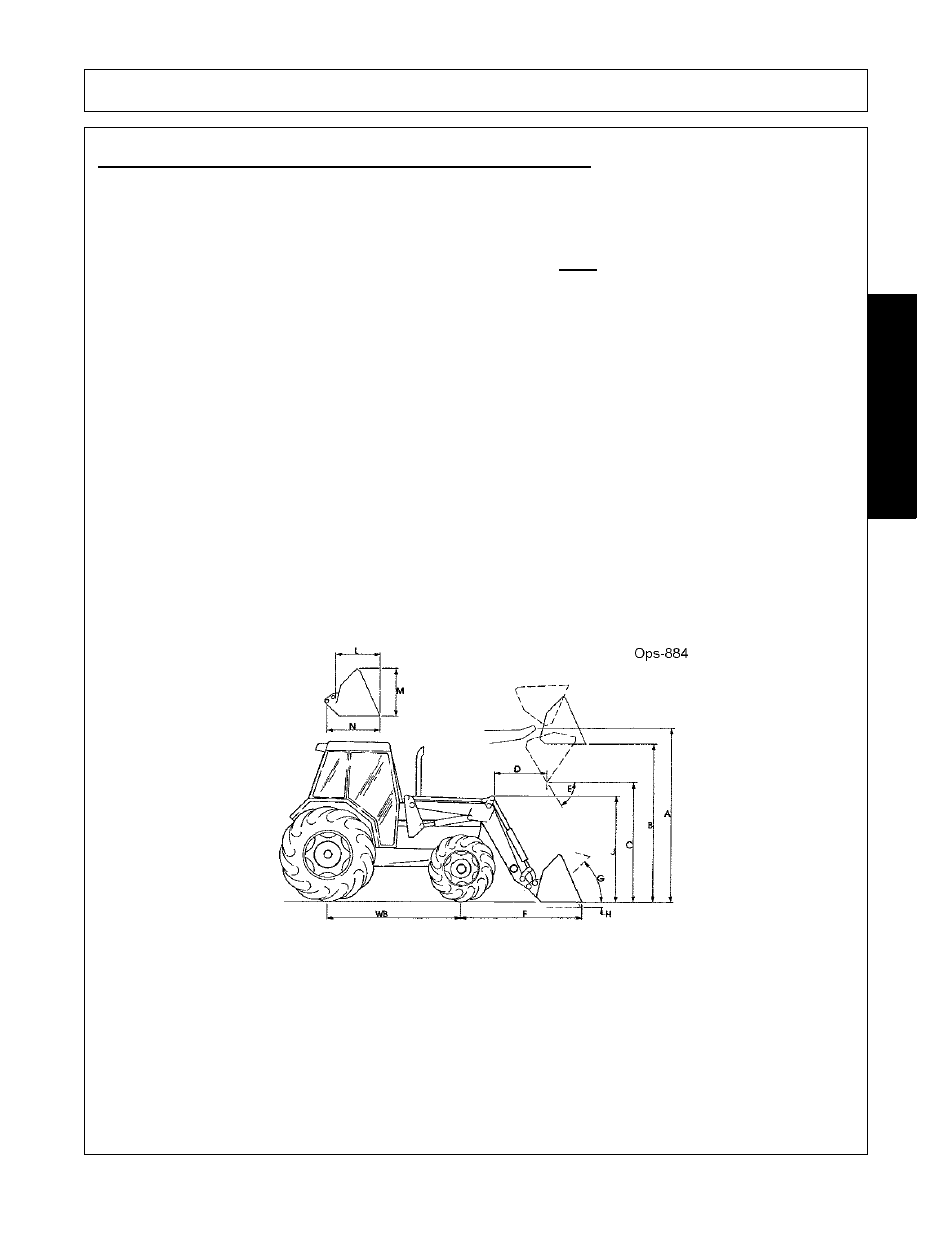

Standard Equipment and Specifications
•
Model 1625 Loaders are compatible with Kubota MX5100 Tractors.
•
Each loader package includes the basic loader, mounting brackets, hydraulic plumbing, grill guard, quick
attach device and bucket.
1625
Tractor MX5100
(A)
* Maximum Lift Height at Pivot Pin
109.5”
(B)
* Maximum Lift Height under Level Bucket
98.5”
(C)
* Clearance with Bucket Dumped
77”
(D)
Reach at Maximum Height
38”
(E)
Maximum Dump Angle
63°
(F)
Reach with Attachment on Ground
80”
(H)
* Digging Depth
9”
(U)
Lift Capacity to Max Height at Pivot Pin
2430 lbs
(V)
Lift Capacity 800mm Forward of Pivot Pin at Full Height
1703 lbs
(W) Lift Capacity 800mm Forward of Pivot Pin at 59”
2800 lbs
(Y)
Breakout Force at Pivot Pin
3503 lbs
Bucket Size and Type
72” SS Quick Attach
(*These Heights Are Subject to Tire Size Modifications)
