Assembly Section 3-16
© 2011 Alamo Group Inc.
ASSEMBL
Y
1. BLUE, 3/8” x 26” (Tilt Cylinder Rod End)
2. RED, 3/8” x 26” (Tilt Cylinder Butt End)
3. YELLOW, 3/8” x 26” (Lift Cylinder Rod End)
4. WHITE, 3/8” x 26” (Lift Cylinder Butt End)
A
B
C
D
E

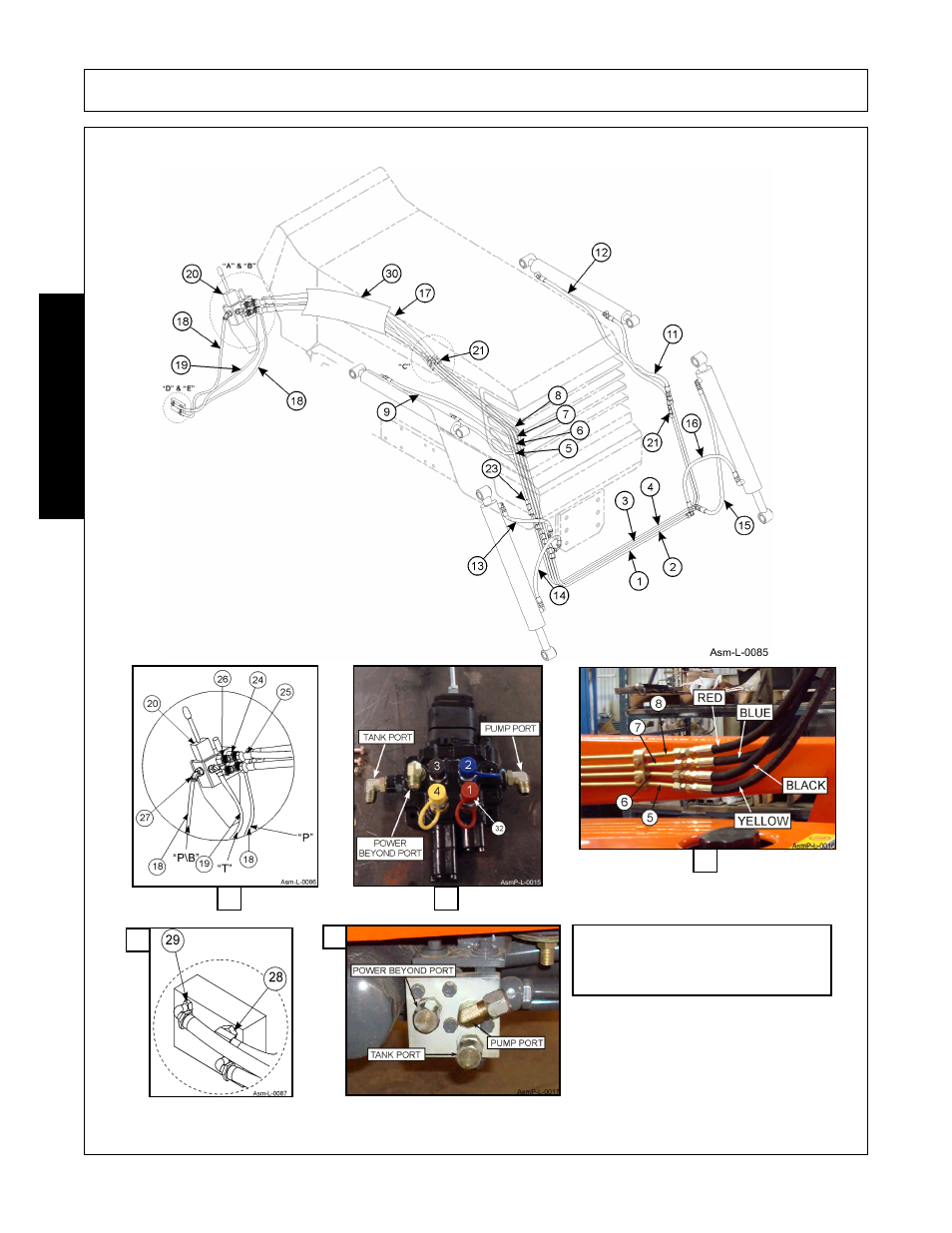

Figure 4: Hydraulics
A, B, C, D, E
