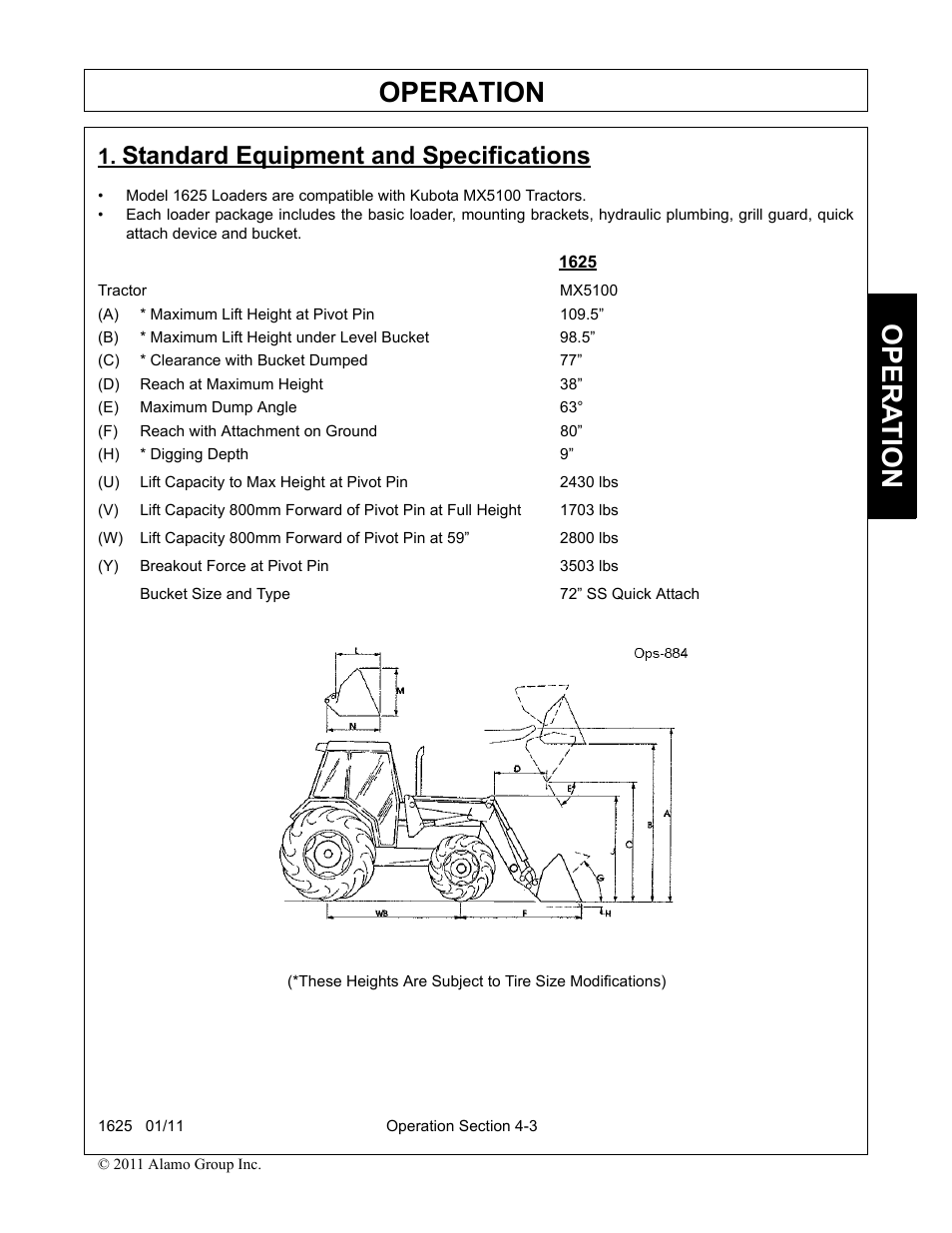

Standard equipment and specifications, A) * maximum lift height at pivot pin 109.5, B) * maximum lift height under level bucket 98.5 – Rhinotek F-4243C User Manual
Page 57: C) * clearance with bucket dumped 77, D) reach at maximum height 38, E) maximum dump angle 63, F) reach with attachment on ground 80, H) * digging depth 9, Y) breakout force at pivot pin 3503 lbs, Bucket size and type 72” ss quick attach
Standard equipment and specifications, A) * maximum lift height at pivot pin 109.5, B) * maximum lift height under level bucket 98.5 | C) * clearance with bucket dumped 77, D) reach at maximum height 38, E) maximum dump angle 63, F) reach with attachment on ground 80, H) * digging depth 9, Y) breakout force at pivot pin 3503 lbs, Bucket size and type 72” ss quick attach | Rhinotek F-4243C User Manual | Page 57 / 112
