Section 2 Connection Procedures

Rev. 3.00 Sep. 08, 2008 Page 10 of 18

REJ10J1396-0300

2.3

Recommended Dimensions for User System Mount Pad

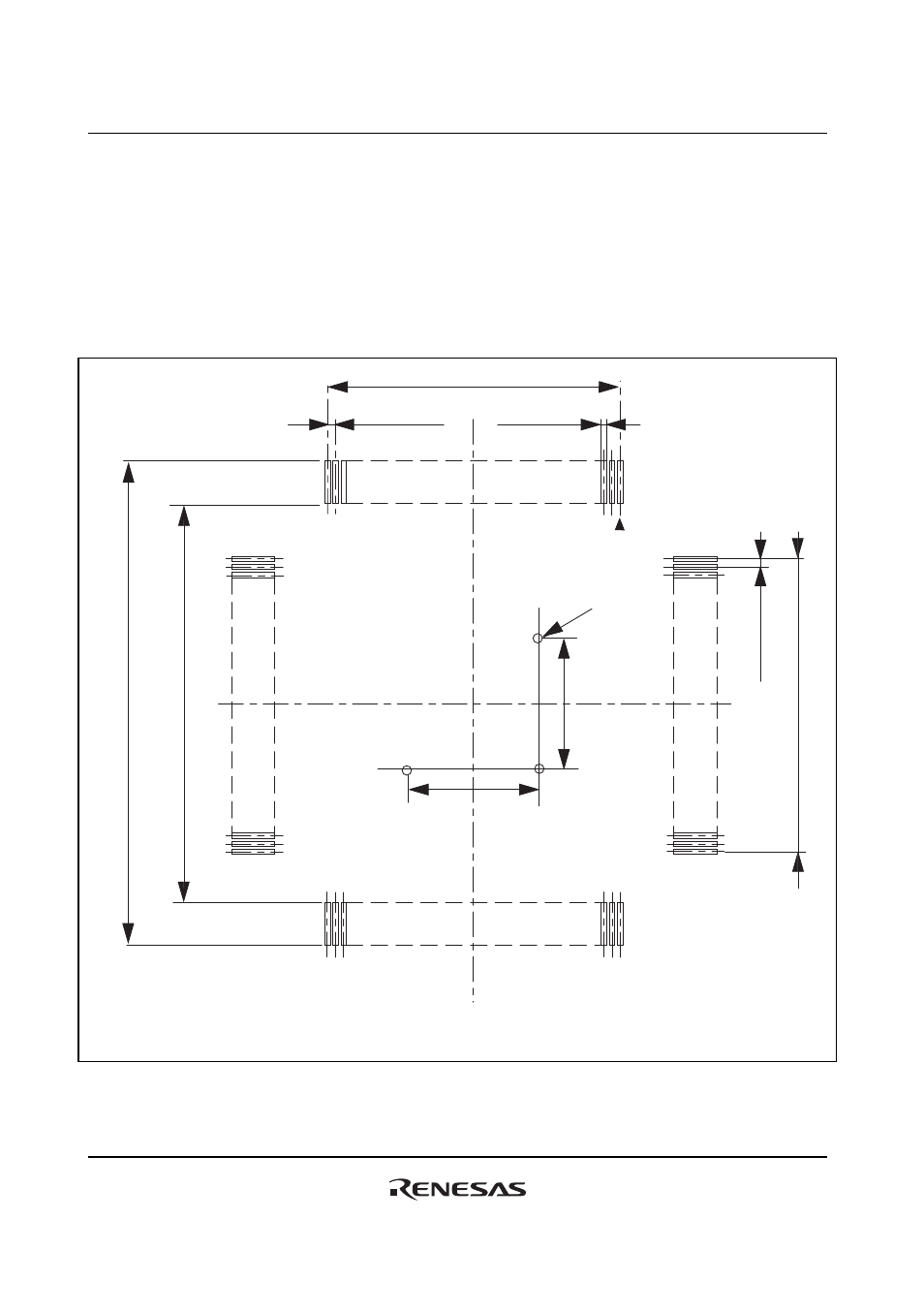

Figure 6 shows the recommended dimensions for the mount pad (footprint) for the user system with
an IC socket for an PLQP0120LA-A package (NQPACK120SE-ND: manufactured by Tokyo
Eletech Corporation). The dimensions in figure 6 are somewhat different from those of the actual
chip's mount pad. Also, note the user system can not be connected to the user system interface cable
with inserting the guide pins in place.

Unit: mm

0.40 ± 0.05

0.40 x 29 = 11.6 ± 0.05

0.40 x 29 = 11.6

±

0.05

0.2 ± 0.05

3.0 -

φ

1.0

5.8

5.8

0.40

±

0.05

13.0 MAX

17.0 min

Figure 6 Recommended Dimensions for Mount Pad
