Section 2 Connection Procedures

Rev. 3.00 Sep. 08, 2008 Page 8 of 18

REJ10J1396-0300

Fasten the user system interface cable head to the IC socket for an PLQP0120LA-A package on the
user system with the four screws (M2.0

x

10 mm) provided. Each screw should be tightened a little

at a time, alternating between screws on opposing corners. Take special care, such as manually
securing the IC socket soldered area, to prevent the soldered IC socket from being damaged by
overtightening the screws or twisting the components.

Pin 1

Pin 1

Cable head

IC socket
(NQPACK120SE-ND
manufactured by
Tokyo Eletech Corporation)

Screws (M2.0 x 10 mm)

User system

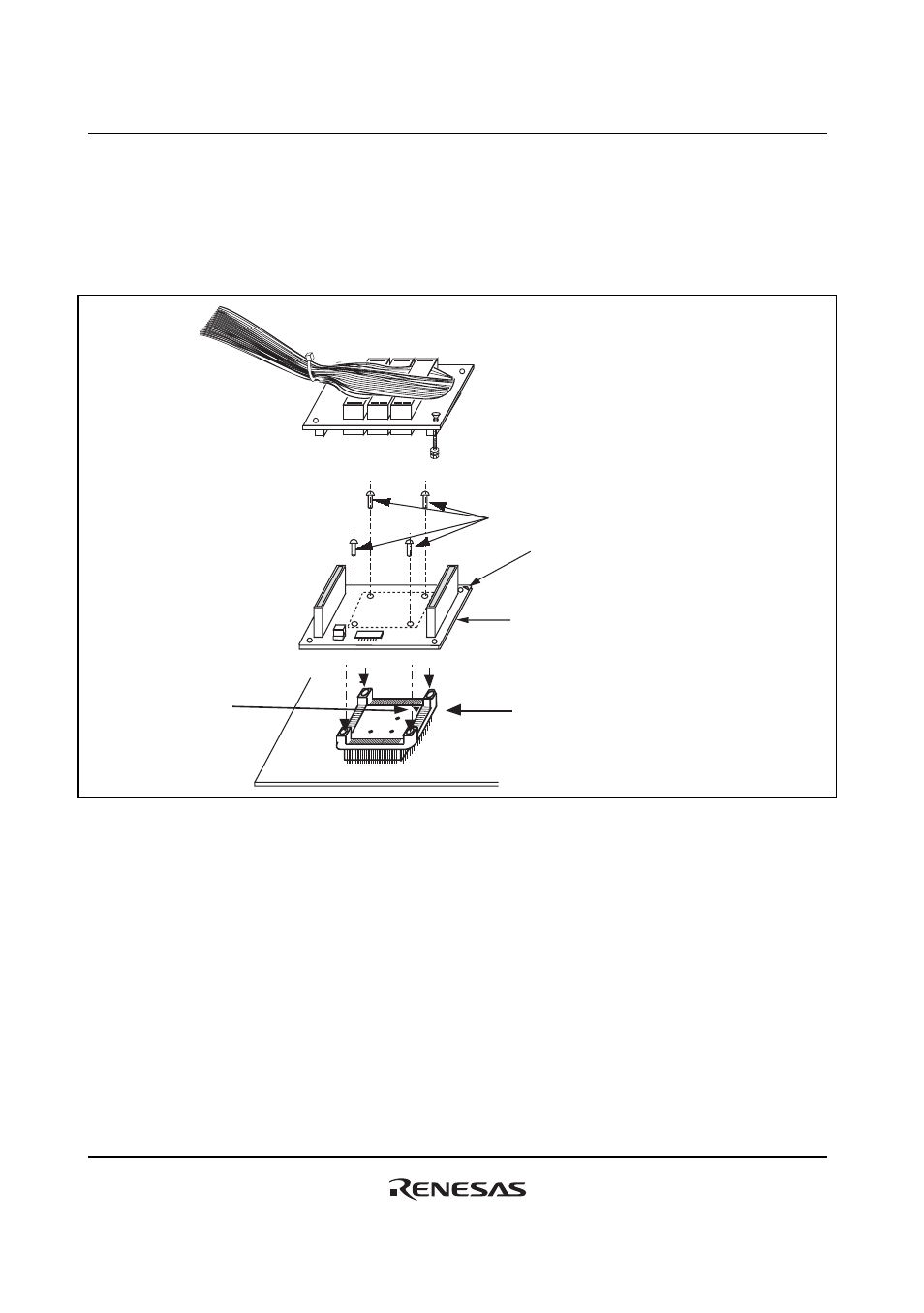

Figure 4 Connecting User System Interface Cable to User System
