Troubleshooting
140
4
A

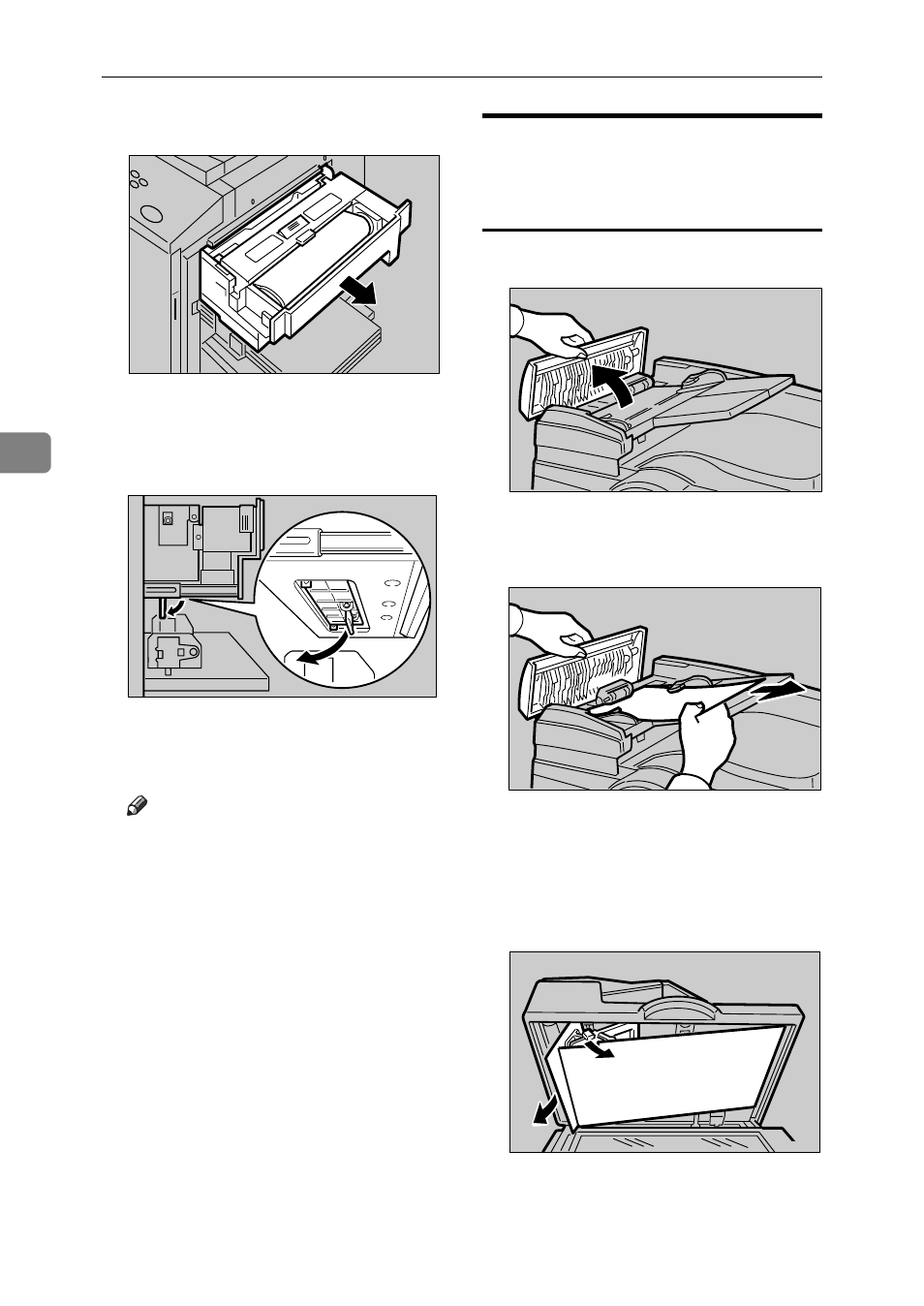

Slide out the master tray.
B
Open the cover at the bottom of
the master tray while holding the
lever and remove the fragments.
C
Close the cover and slide in the
master tray.
Note
❒ Make sure that you securely
close the cover before sliding in
the master tray.
“x + P” Original Misfeeds
Occur in the Auto Document
Feeder
A
Open the ADF cover.
B
Pull out the misfed original gen-
tly.
C
If you cannot remove misfed orig-
inals as in step
B, open the ADF.
D
Pull the green knob towards you
and remove the misfed original.
E
Return the document feed sheet
to its original position.
ACY048S
ZFXH201E
ZDCY090E
ZDCY120E
TPEH220E
