Page 7
7
Panel Descriptions

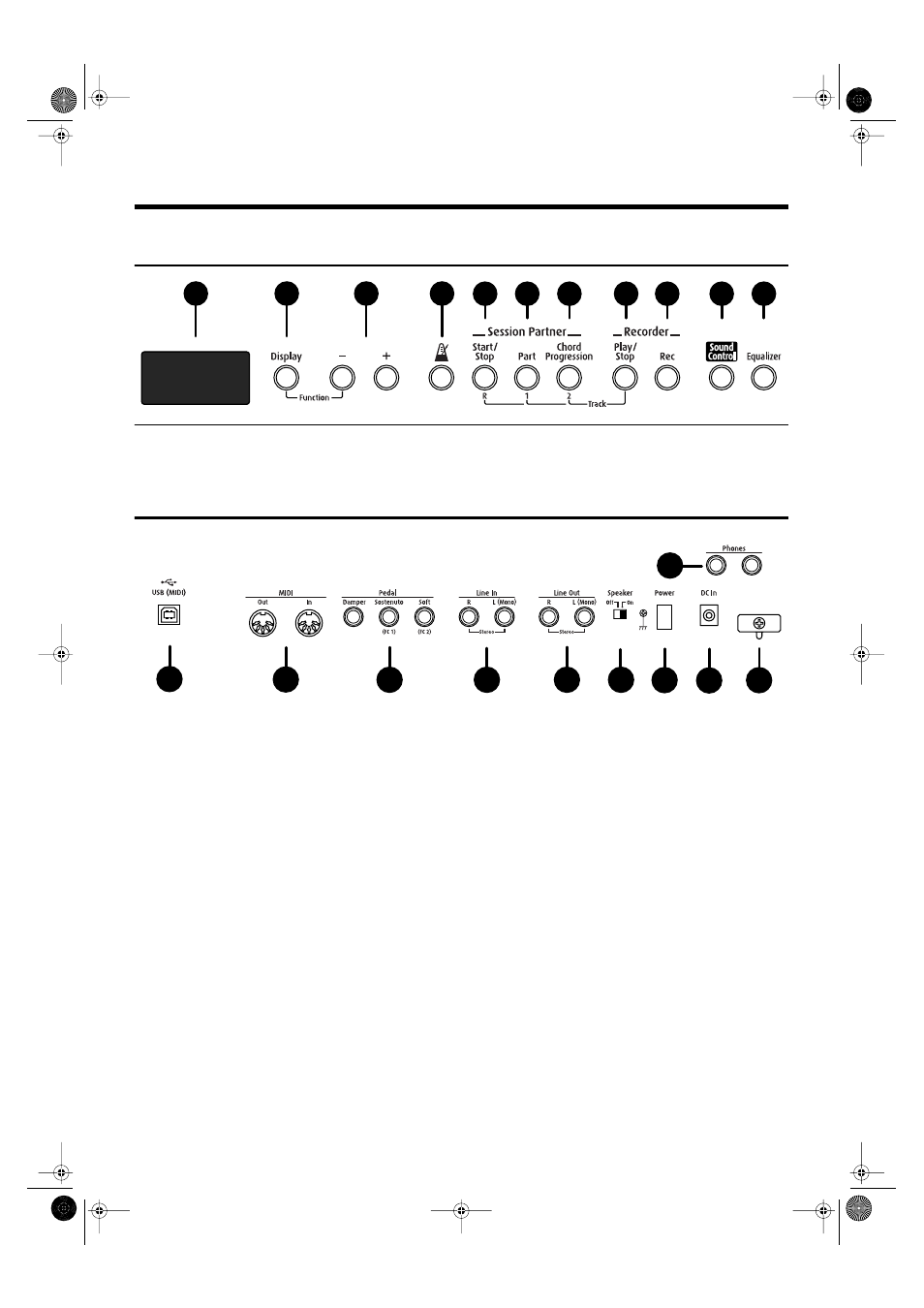

Rear Panel
1
USB(MIDI) Connector
Use this for connecting a computer to the FP-2 using a USB
cable (p. 45).
2
MIDI Connectors
Used for connecting external MIDI devices and for sending
and receiving MIDI messages (p. 46).
3
Pedal Jacks
Accepts connection of the supplied pedal (DP Series), or
other suitable pedals (p. 9).
4
Line In Jacks
Provide input of the audio signals. Used for connecting
audio equipment and other such devices (p. 44).
5
Line Out Jacks
Provide output of the audio signals. Also used for connecting
audio equipment and other such devices (p. 44).
These allow you to play sounds from the FP-2 through other
audio devices.
6
[Speaker] Switch
This switch turns the internal speaker on/off (p. 44).
7
[Power] Switch
This switch turns the unit on/off (p. 10).
8
DC In Jack
Connect the supplied AC adaptor here (p. 8).
9
Cord Hook
Use this to fix in place the cord from the supplied AC
adaptor (p. 8).
10
Phones Jacks
A set of headphones can be connected to this jack (p. 10).
12
13
14
15
16
17
18
8
9
10
11
2
3
4
5
6
7
8
9
10
1
