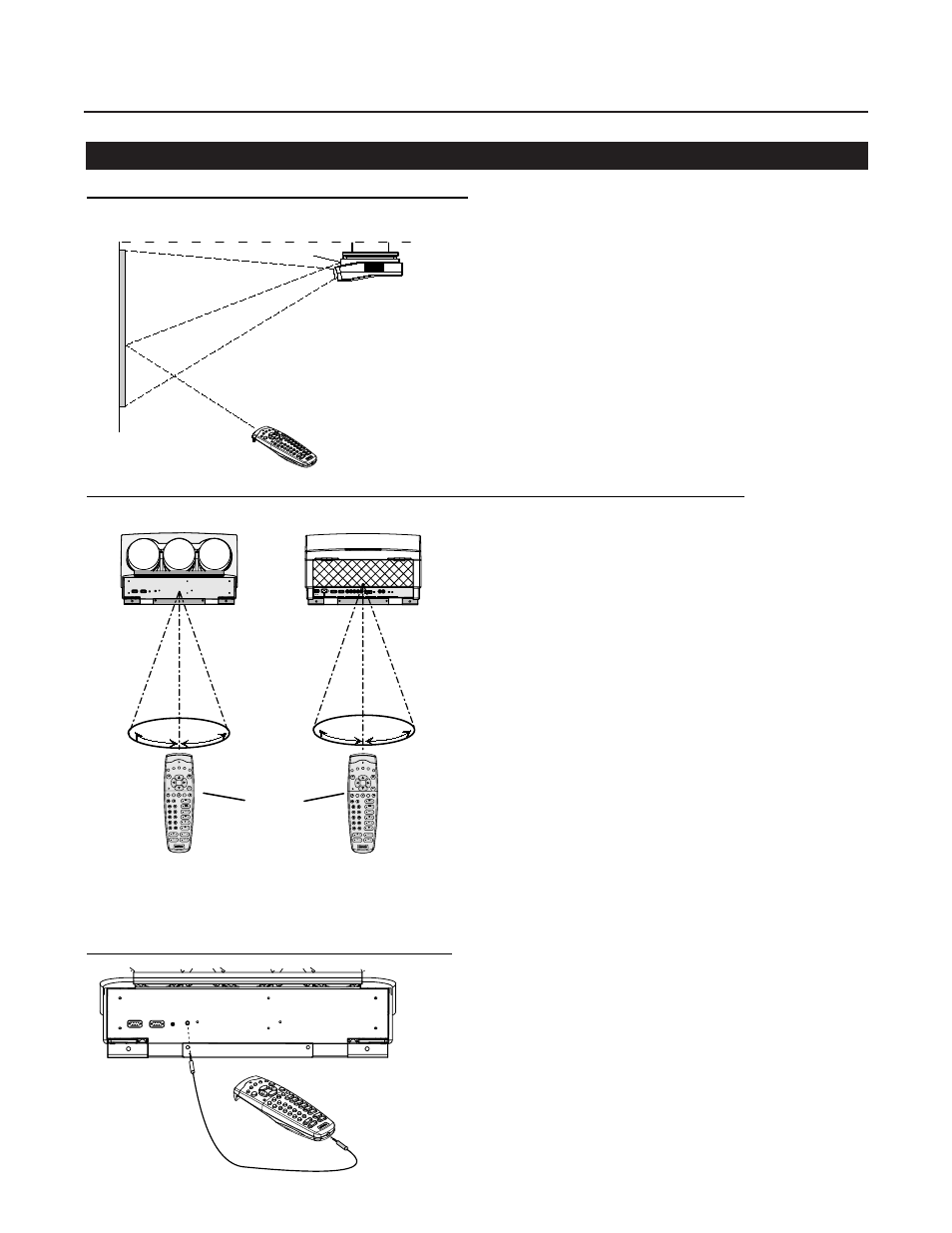

Remote Commands to the Projector
Pointing the Remote to the reflective screen
Point the front of the Remote to the screen surface.
Ceiling
Screen
IR sensor
Remote
Point the front of the Remote towards one of the IR sensors in the projector.
Front of projector Rear side of projector
Remote
ON OFF POWER / MAINS 800 peripherals R G B Comp-/H-Sync V-Sync COMM. PORT PORT 3 PORT 4/5 V-nom I-nom Freq
See installation instructions before connecting to the supply. Voir la notice d'installation avant de raccorder au réseau.
120/230 V 7/5 Amp 50/60 Hz S-VIDEO OFF - ON 75 Ohm VIDEO green : operation red : standby PORT 2 PORT 1 OFF - ON 75 Ohm PROJECTOR MODE
" This device complies with Part 15 of the FCC Rules. Operationis subject to following two conditions: (1) This
device may not cause harmful inter-
ference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation"
F1 F2 F3 F4 F5
ADJ EXIT
ENTER
PAUSE
PHASE
TEXT
SHARPN
TINT
COLOR
BRIGHTN
CONTR
TREBLE BALANCE
BASS VOL
9 0
7 8
5 6
3 4
1 2
F1 F2 F3 F4 F5
ADJ EXIT
ENTER
PAUSE
PHASE
TEXT
SHARPN
TINT
COLOR
BRIGHTN
CONTR
TREBLE BALANCE
BASS VOL
9 0
7 8
5 6
3 4
1 2
45° 45° 45° 45°
When using the wireless remote control, make sure you are within the effective operating distance (30m, 100ft
in a straight line). The remote control unit will not function properly if strong light strikes the sensor window or if
there are obstacles between the remote control unit and the projector's IR sensor.
Remote used in a hardwired configuration.
RS232 INRS232 OUT IR REMOTE
RS232 IN RS232 OUT IR REMOTE
17
Plug one end of the remote cable in the
connector on the bottom of the Remote and
the second side in the connector in the rear
panel of the projector labelled 'REMOTE'.
