11

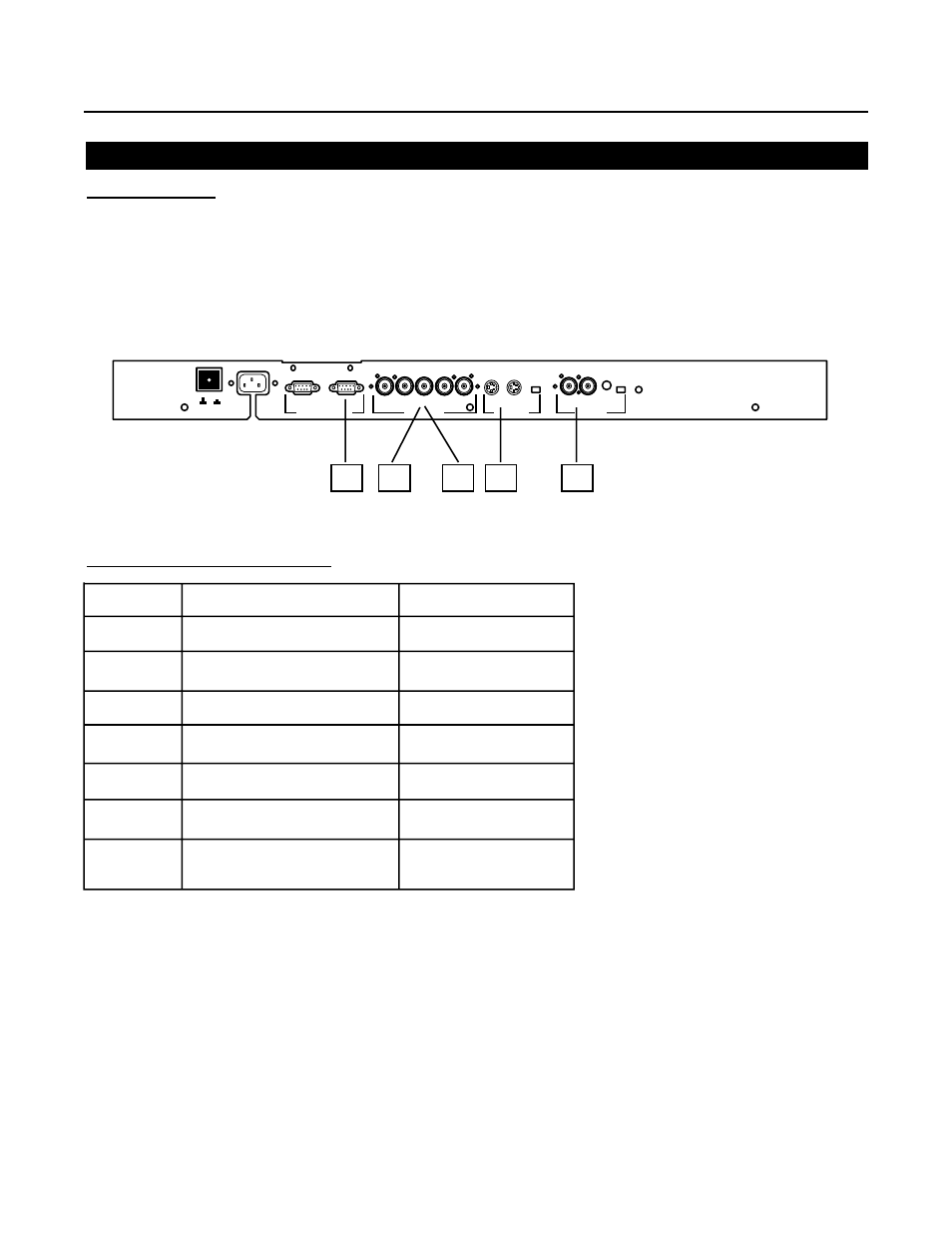

Source Connections
Input Facilities
The following source types can be connected to the inputs :
• RGB Tri-level Sync
• RGB Composite, Separate or Sync on green
• Component Video
• Component Video with Tri-level Sync
Future Expansion
R G B
INPUT 4/5
S-Video
OFF/ON
75 Ohm
INPUT 2
Video
INPUT 1
12 Volt
Trigger H V
OFF/ON
75 Ohm
AC Input
Status
Green: Operation
Red: Standby
OFF ON
Which source to which input
Source No. Projector Input Remote Button No.
1 Comp. Video* 1 (not used)
2 S-Video/Comp. Video* 2 (not used)
3 RGB 3
4/5 RGB 4 or 5
4/5 Component Video 6
4/5 RGB with Tri-level Sync 7
4/5 Component Video
with Tri-level Sync
8
* Not used in the DTV-1200
1 2 5 4 3
