11

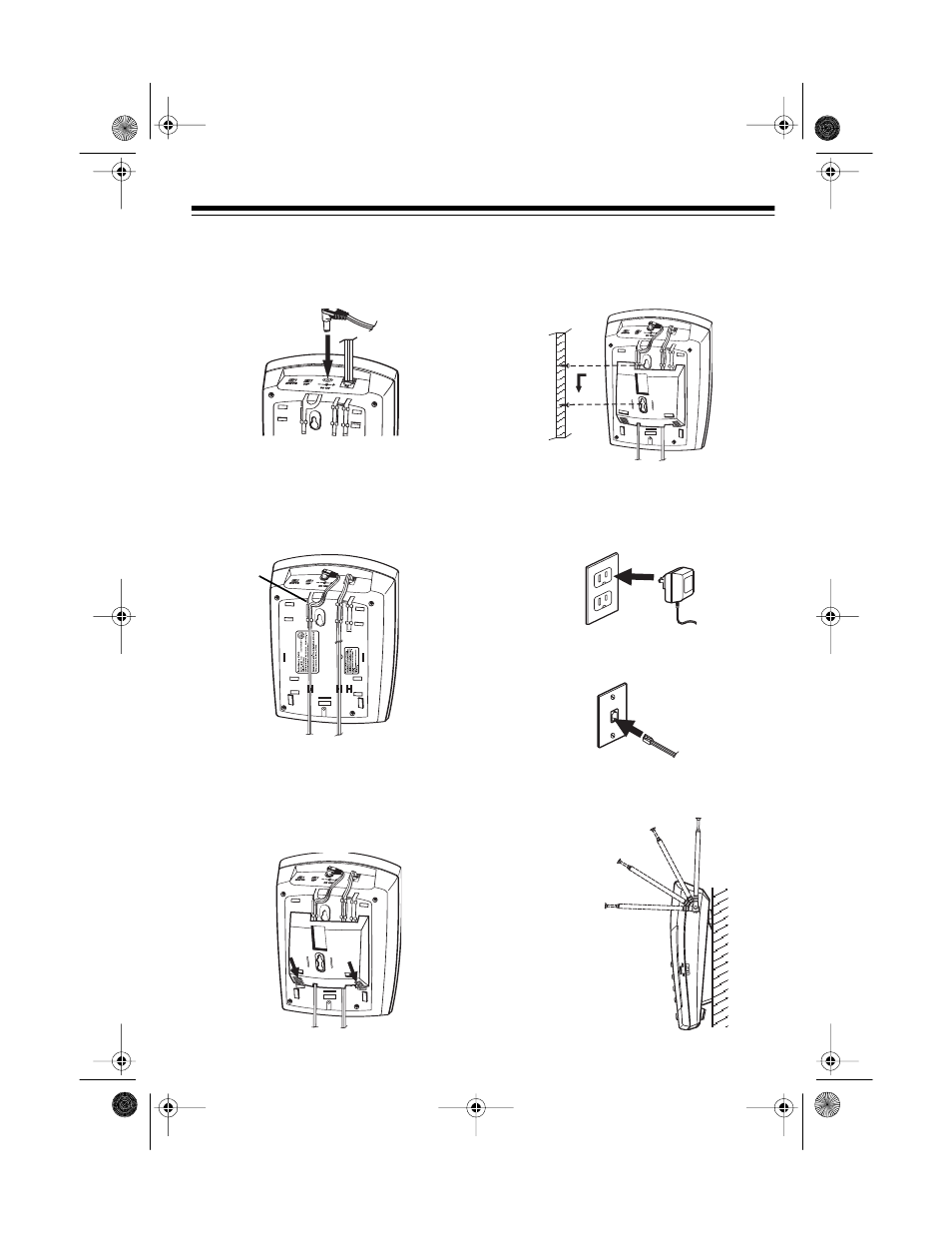

4. Insert the supplied AC adapter’s
barrel plug into the DC 12V jack on
the back of the base.
5. Route the modular cord through ei-
ther groove on the right bottom of
the base and the adapter cord
through the groove below the strain
relief slot.
6. Insert the tabs on the narrow end of
the bracket into the inner pair of
slots near the top of the base as
shown and snap the tabs at the wide
end of the bracket into place.
7. Align the keyhole slots with the
mounting screws and slide the base
downward to secure it.
8. Plug the adapter into a standard AC
outlet. The message counter counts
down from
18 to 00 and the TAD-
1029 beeps.
9. Plug the end of the modular cord
into a modular phone line jack.
10. Fully extend the base’s antenna and
place it in a vertical position.
Strain
Relief
Slot
