Ricoh R1v User Manual
Page 14

13
Quic
k
Guide

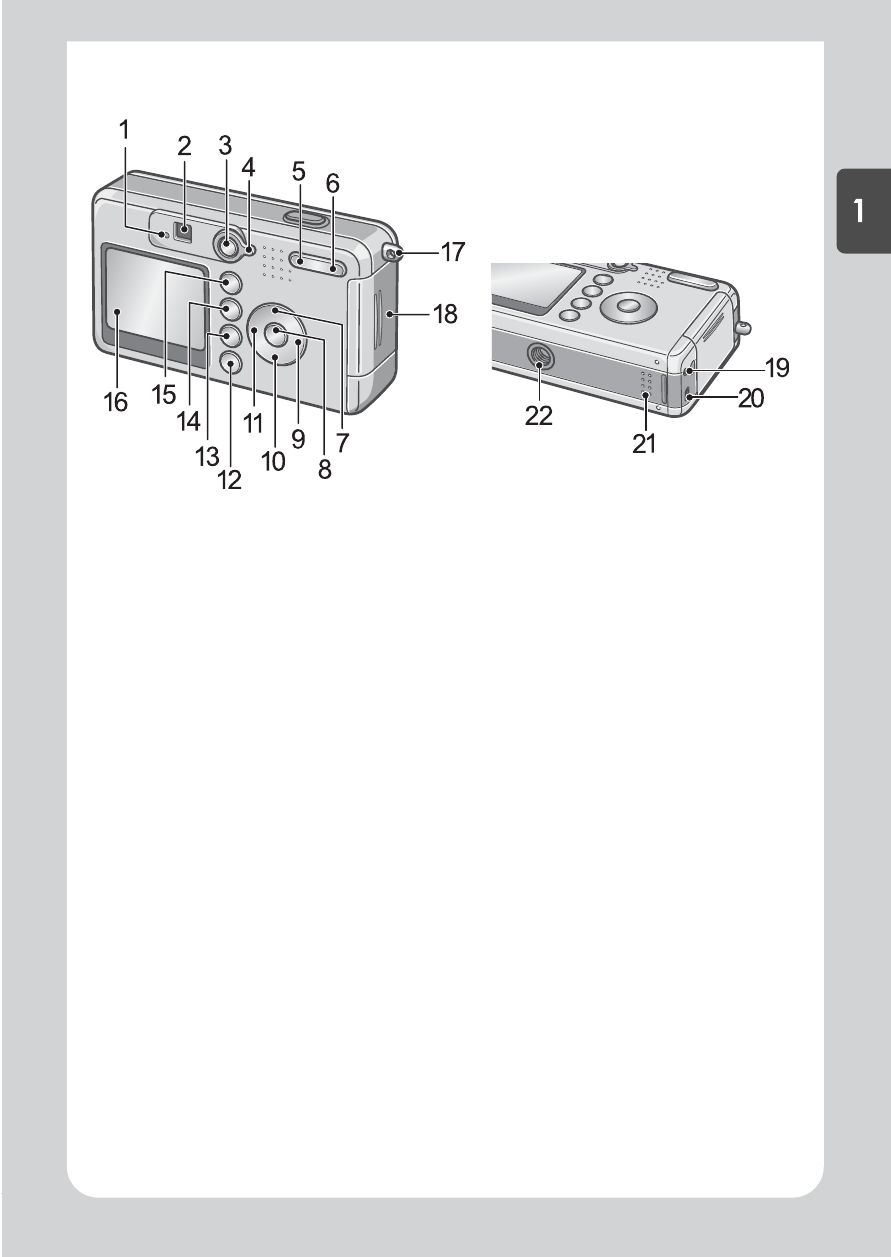

Rear View
1. Auto Focus (P.27)/Flash Lamp (P.33)
2. Viewfinder
3. Playback Button (P.35)
4. Mode Selector (P.12)
5.
Z (Wide-angle) (P.31)/9 (Thumbnail
Display) Button (P.36)
6.
z (Telephoto)(P.31)/8 (Enlarged View)
Button (P.37)
7.
!/MODE Button (P.34)
8.
O Button
9.
$ Button
10.
"/N (Macro) Button (P.32)
11.
#/F(Flash) Button (P.33)
12.DISP. Button (P.24)
13.
D (Delete) (P.40)/T (Self-timer) Button
(P.67)
14.
M Button (P.51, P.83, P.94)
15.ADJ. Button (P.49)
16.LCD Monitor
17.Strap Eyelet (P.10)
18.Battery/Card Cover
19.AV Output Terminal (P.38)
20.USB Terminal (P.119)
21.Speaker (P.80, P.82)
22.Tripod Screw Hole (underside)
