Getting Started
12
1
Connecting the Machine to the
host using the parallel cable/IEEE
1394 (SCSI print) cable
Connect the machine to the host com-
puter using the optional parallel
board or optional IEEE 1394 interface
board. This machine does not come
with a parallel cable to connect the
machine to the host computer.
The machine's parallel interface is a
standard bidirectional interface. It re-
quires a standard IEEE 1284 compli-
ant 36-pin parallel cable and a parallel
port on the host computer. Make sure
you purchase the appropriate cable
for the machine and your computer.
Note
❒ Do not use a parallel cable that is
longer than 3 meters (10 feet).
❒ Rating voltage of the interface con-
nector: Max. DC 5V
Follow the procedure below to con-
nect the machine to the host computer
using a parallel cable or IEEE 1394 in-
terface cable.
Important
❒ Before connecting the machine and
a computer using an interface ca-
ble, make sure the machine is not
operating, and then turn off the
main power switches of the ma-
chine and computer.
❒ Be sure to use a specified interface
cable. Other cables may cause ra-
dio interference.
AAAA
Turn off the main power switches
of the machine and computer.
Important
❒ Before turning off the main
power switch, see “Turning Off
the Power”, General Settings
Guide.
BBBB

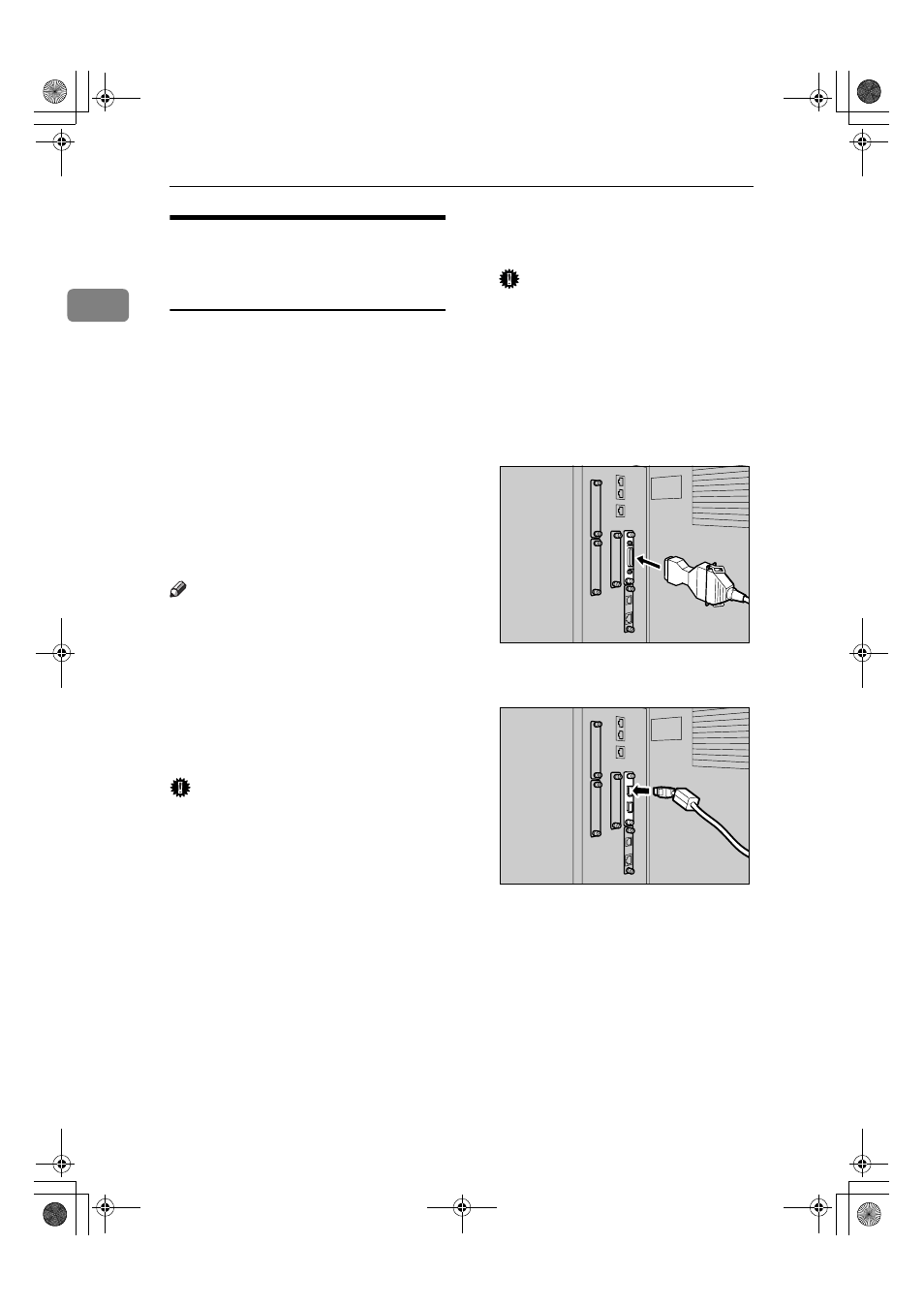

Plug the cable into the connector
on the machine’s interface.
❖ ❖ ❖ ❖ Parallel Connection
❖ ❖ ❖ ❖ IEEE 1394 (SCSI print) Connection
CCCC
Plug the other end of the cable
into the connector on the compu-
ter’s interface.
DDDD
Turn on the machine's main pow-
er switch.
AEV002S
AEV003S
