A.3
A

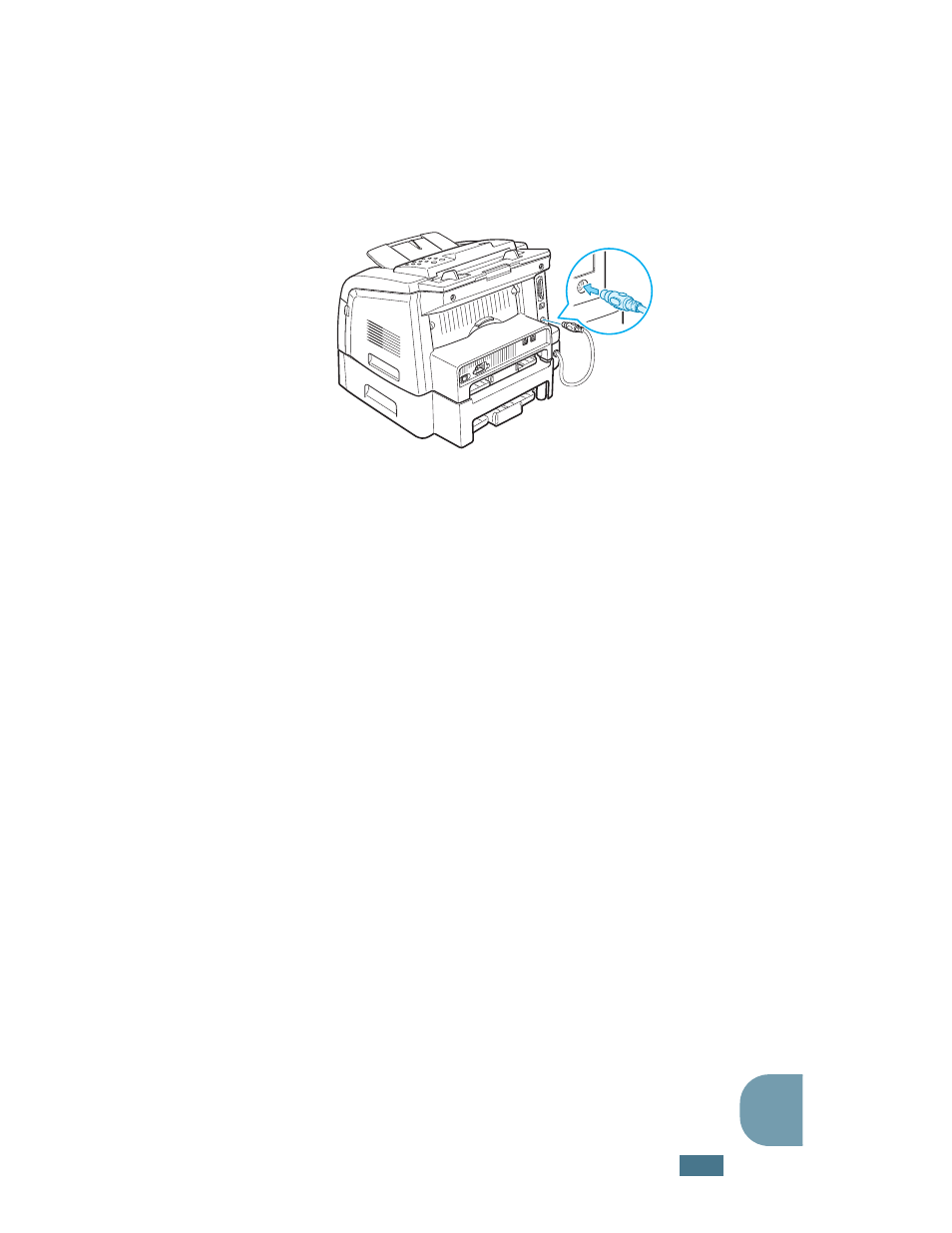

5 Plug the interface cable of the tray into the Tray 2 cable
connector on the back of the machine.
6 Load paper in the optional Tray 2. The instructions for
loading paper in this tray is the same as you would when
loading the standard paper tray. See page 1.11.
7 Reconnect the power cord and cables and then turn the
machine on.
Setting Tray 2 in the Printer’s Properties
If you installed Tray 2 with your machine on, the machine does
not recognize it. In this case, you need to set the tray in the
printer’s Properties window so that you can use it for PC-
printing.
1 Click the Windows Start menu.
2 For Windows 95/98/Me/NT4.0/2000, select Settings and
then Printers.
For Windows XP, select Printers and Faxes.
3 Select the Printer Driver Type 2200 printer.
4 Click the right mouse button on the printer icon and select
Properties.
5 Click the Printer tab, select Tray 2 from the Optional Tray
drop down list and click OK.
