Chapter 4. Board Layout

4.1. Component Layout

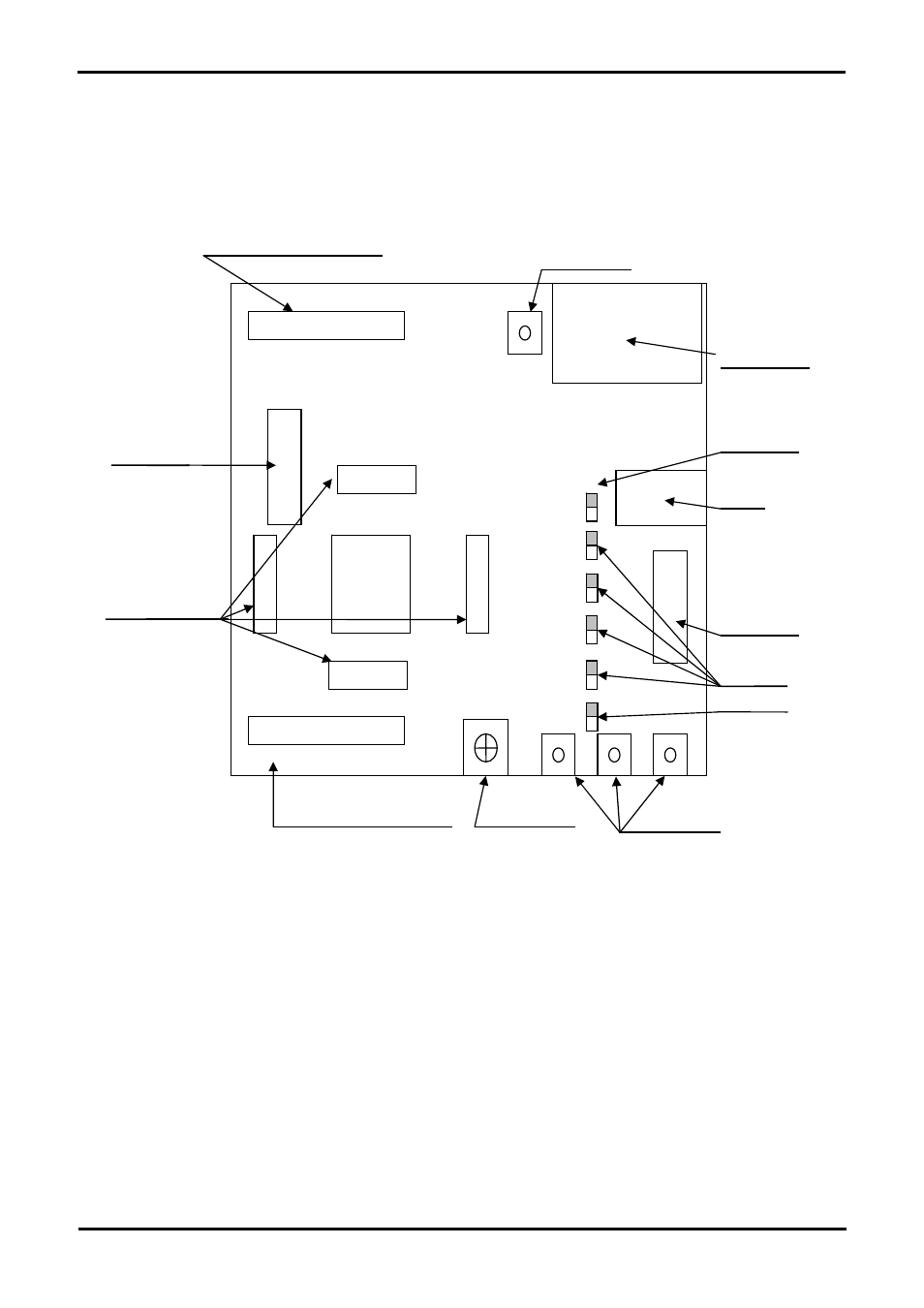

The following diagram shows top layer component layout of the board.

User switches

E8A Header

Power

RS232 Serial

LCD Display

Microcontroller

pin headers

Application board interface

Potentiometer

User LEDs

JA2

Reset switch

JA1

J2

J3

J4

J1

LCD

Power LED

MCU

Boot LED

Application board interface

Figure 4-1: Board Layout
