Rinnai Corporation RHFE-750ETRA 29

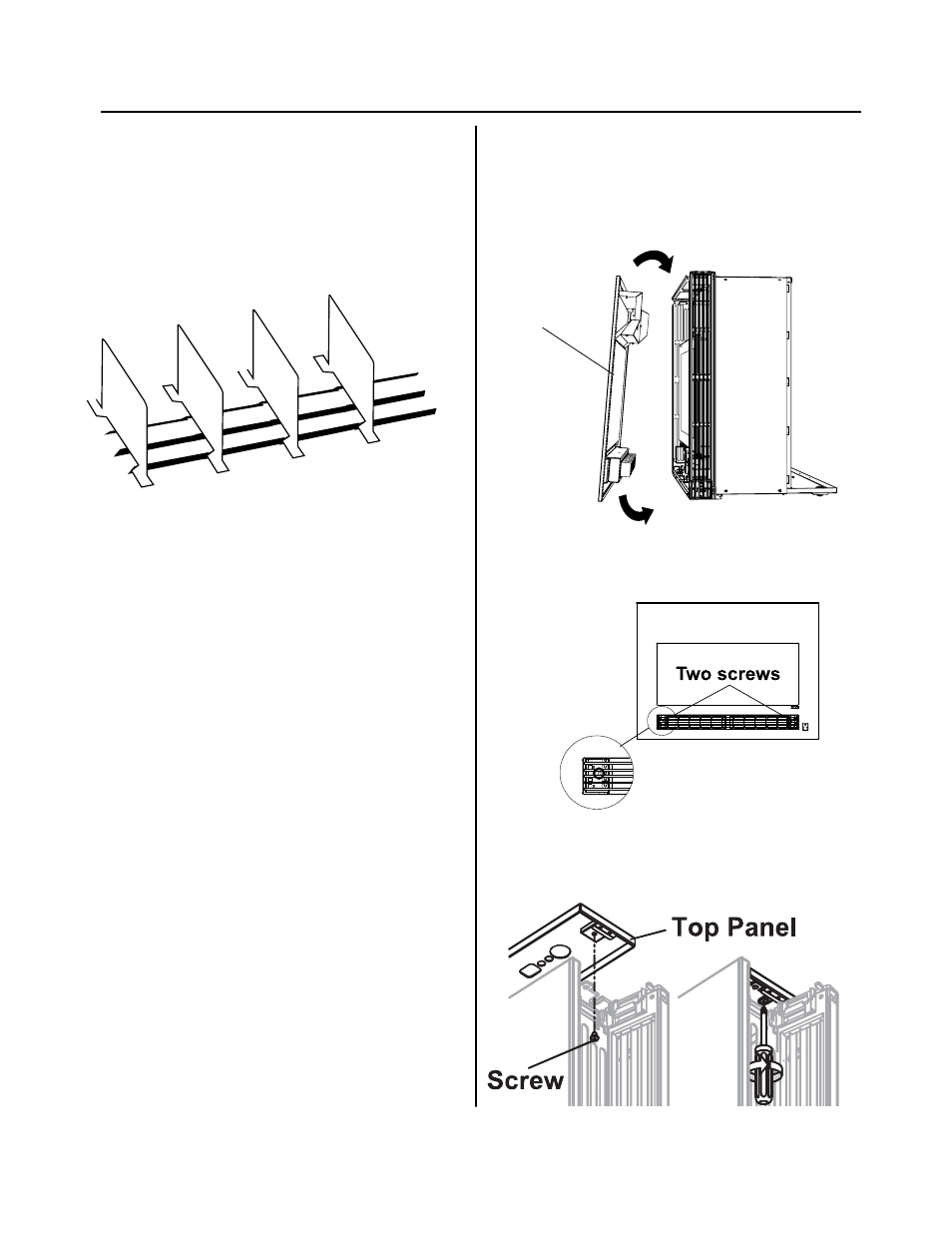

Air Guide Vanes
To move the air flow more to the right or to the left,
bend the air guide vanes using only light hand
pressure.
Do not bend repeatedly (no more than 5 times) or
else the vane will break.
Install the Front Panel
1. Install the front panel by hooking the top into the
body and rotating the bottom towards the
appliance.
2. Secure the front panel to the appliance using
two screws through the front of the warm air
discharge louvers.
Final
Assembly
3. Set the top panel into place. Open the side
louvers and on each side attach the top panel with
one screw. (Side louvers are opened by pushing
in and releasing.)
then rotate
inward
Hook top first
Front Panel
