Rinnai DIRECT VENT FIREPLACE RHFE-750ETRA User Manual
Page 19
Rinnai Corporation RHFE-750ETRA 19

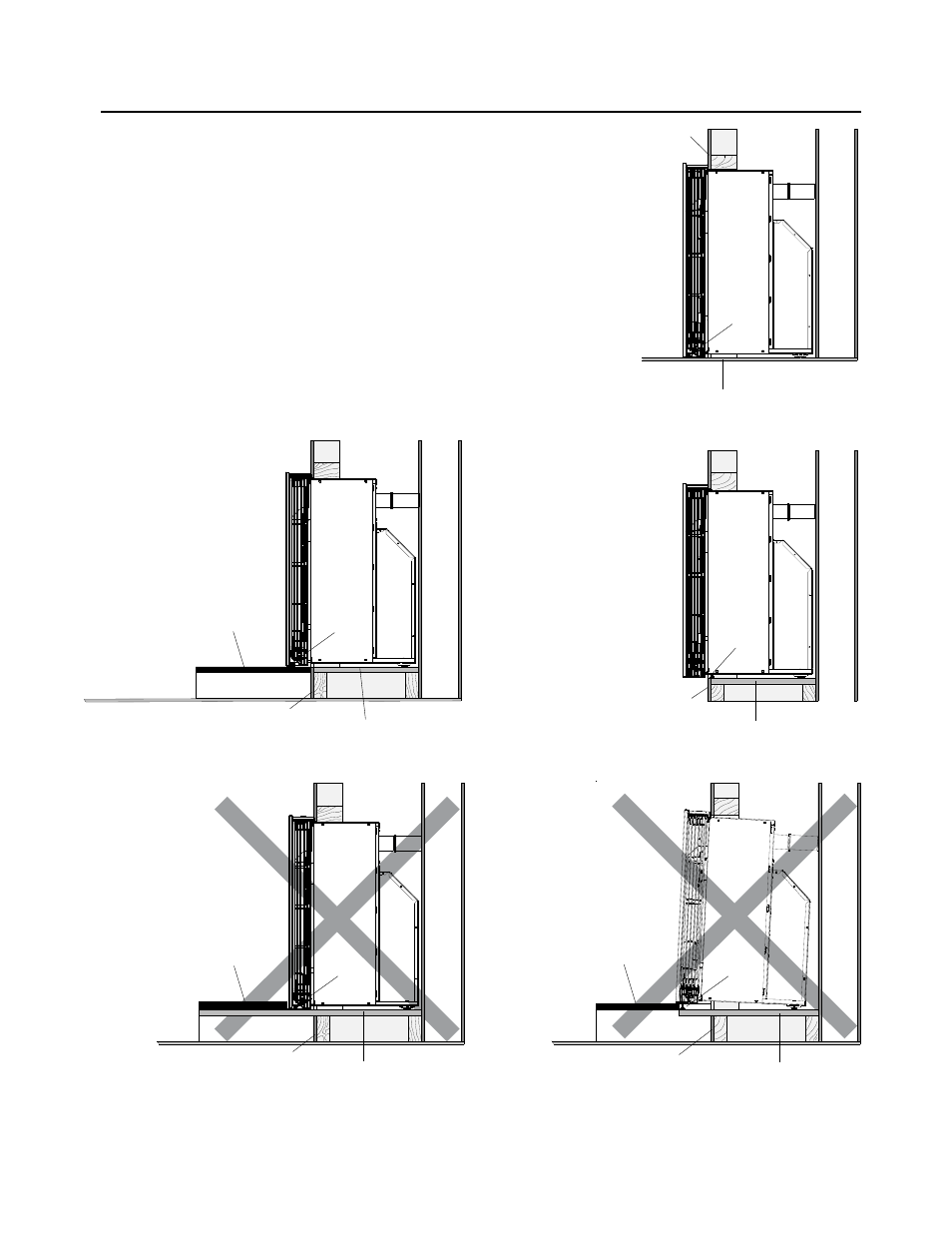

Correct Floor
Level Installation
Particle Board, MDF, Plywood etc.
Wall Lining
Particle Board, MDF, Plywood etc.
Wall Lining
Particle Board, MDF, Plywood etc.
Wall Lining
Floor (Timber, Concrete, Tile, etc.)
Wall Lining
Hearth
Particle Board, MDF, Plywood etc.
Wall Lining
Hearth
Incorrect Hearth
Installation
Incorrect Hearth
Installation
Correct Hearth
Installation
Correct In-wall
Installation
Hearth
Adjustment
feet
Adjustment
feet
Adjustment
feet
Adjustment
feet
Adjustment
feet
Location
Use the adjustment feet so that the appliance is level
and not tilted. They are initially installed immediately
behind the side louvers but can be moved forward for
better access in hearth or floor installations.
The hearth should not block the appliance from being
rolled out nor should it prevent the front panel from
being installed or removed.
